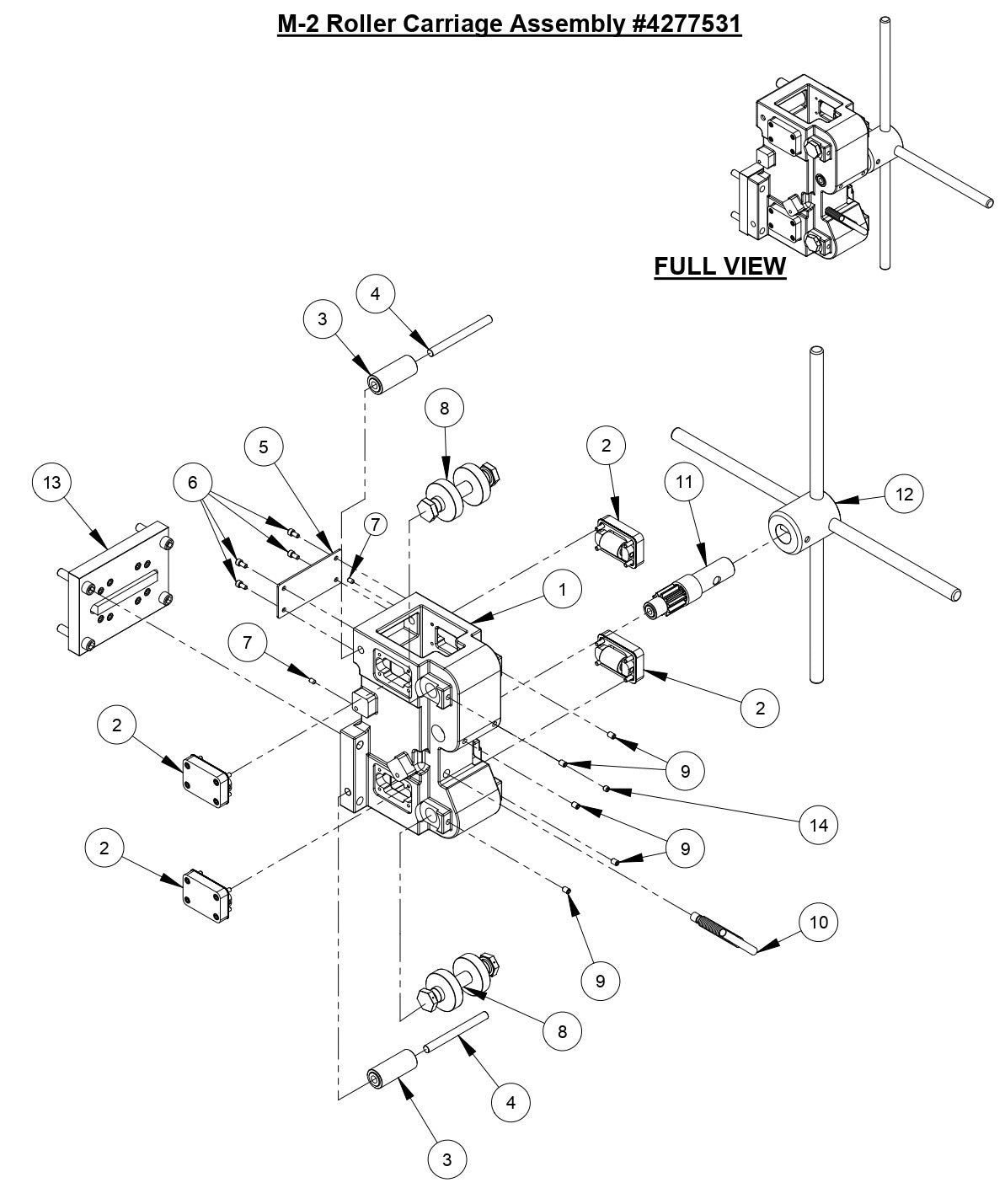

M-2 Roller Carriage Assembly Parts

M-2 Roller Carriage Assembly Parts

  • M-2 Roller Carriage Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
4647100 Roller Carriage for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$364.32
2
4647107 Side Roller Assembly (Plastic 7/8" Roller) for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$84.12
3
4647114 Lower Roller (plastic) for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$38.36
4
4647112 Lower Roller Shaft for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$11.15
5
2400009 Aluminum Cover Plate for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$10.84
6
2900117 Cap Screw, Soc. Hd., #10-24 x 3/8" for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
7
2900118 Soc Set Screw, #10-24 x 5/16" for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
8
4647108 Adjustable Roller Assembly for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$107.00
9
2900101 Set Screw, Soc. Hd., 1/4-20 x 3/8" for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
10
4647123 Carriage Lock (M-2 Roller Carriage) for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$51.54
11
4647124 Pinion Gear W/Bushings for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$103.18
12
4641015 Spoke Handle Assembly for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$168.30
13
4641009 M-2 Motor Mount Assembly for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$104.38
14
2900056 Set Screw, Soc. Hd., 1/4-20 x 1/4" for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
View full details
