M-2 Web Base Anchor Assembly Parts

M-2 Web Base Anchor Assembly Parts

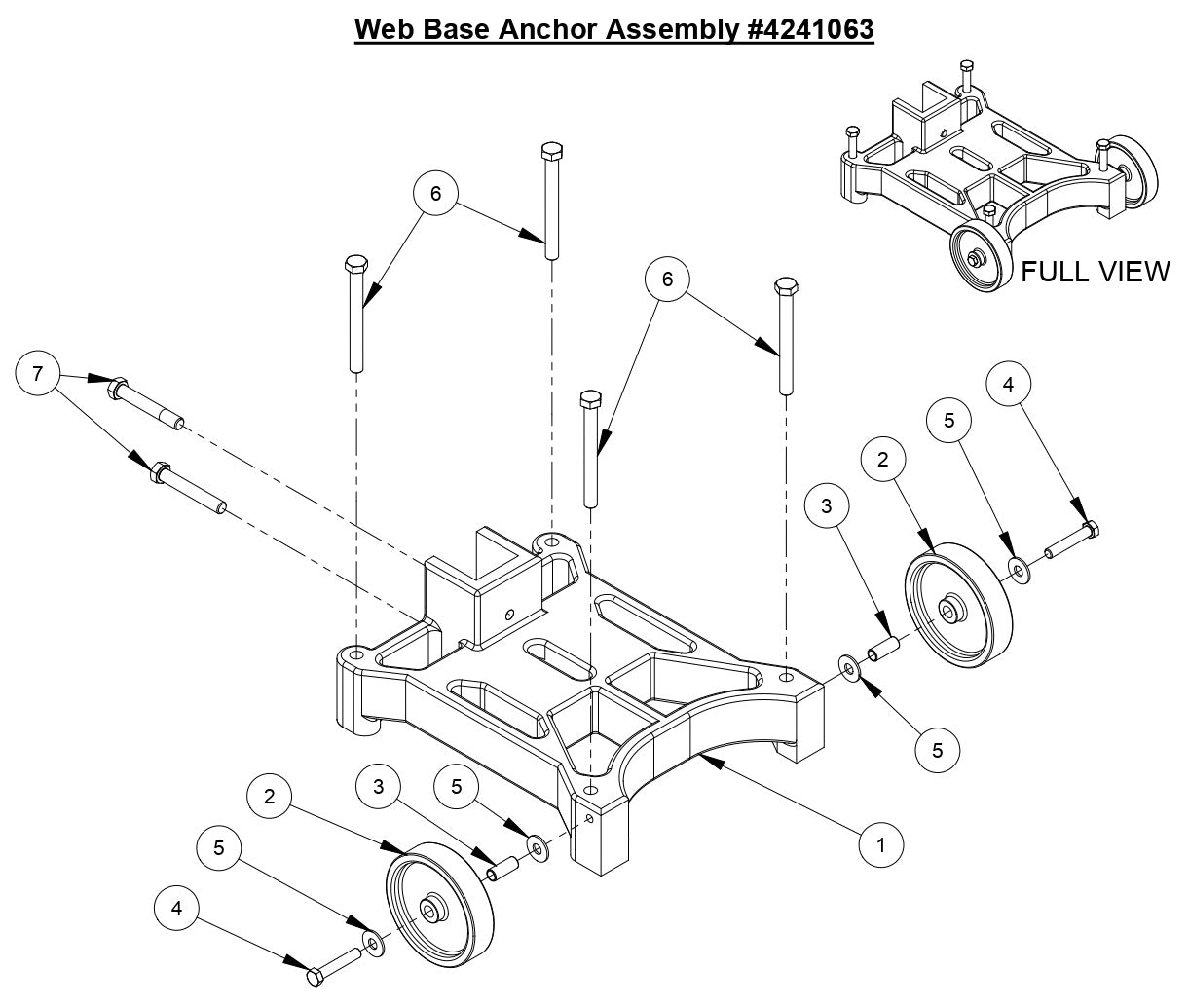

  • M-2 Web Base Anchor Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
4641005 Web Anchor Base for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$539.55
2
2400004 Wheel, 6" for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$16.14
3
4641006 Wheel Bushing for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$14.12
4
2900105 Cap Screw, Hex Hd., 1/2-13 x 2-3/4" for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$8.82
5
2900127 Flat Washer, 1/2" USS for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
6
2900104 Tap Bolt, Hex Hd., 5/8-11 x 6" for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$14.02
7
2900146 Cap Screw, Hex Hd., 5/8-11 x 4" for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$15.86
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.
