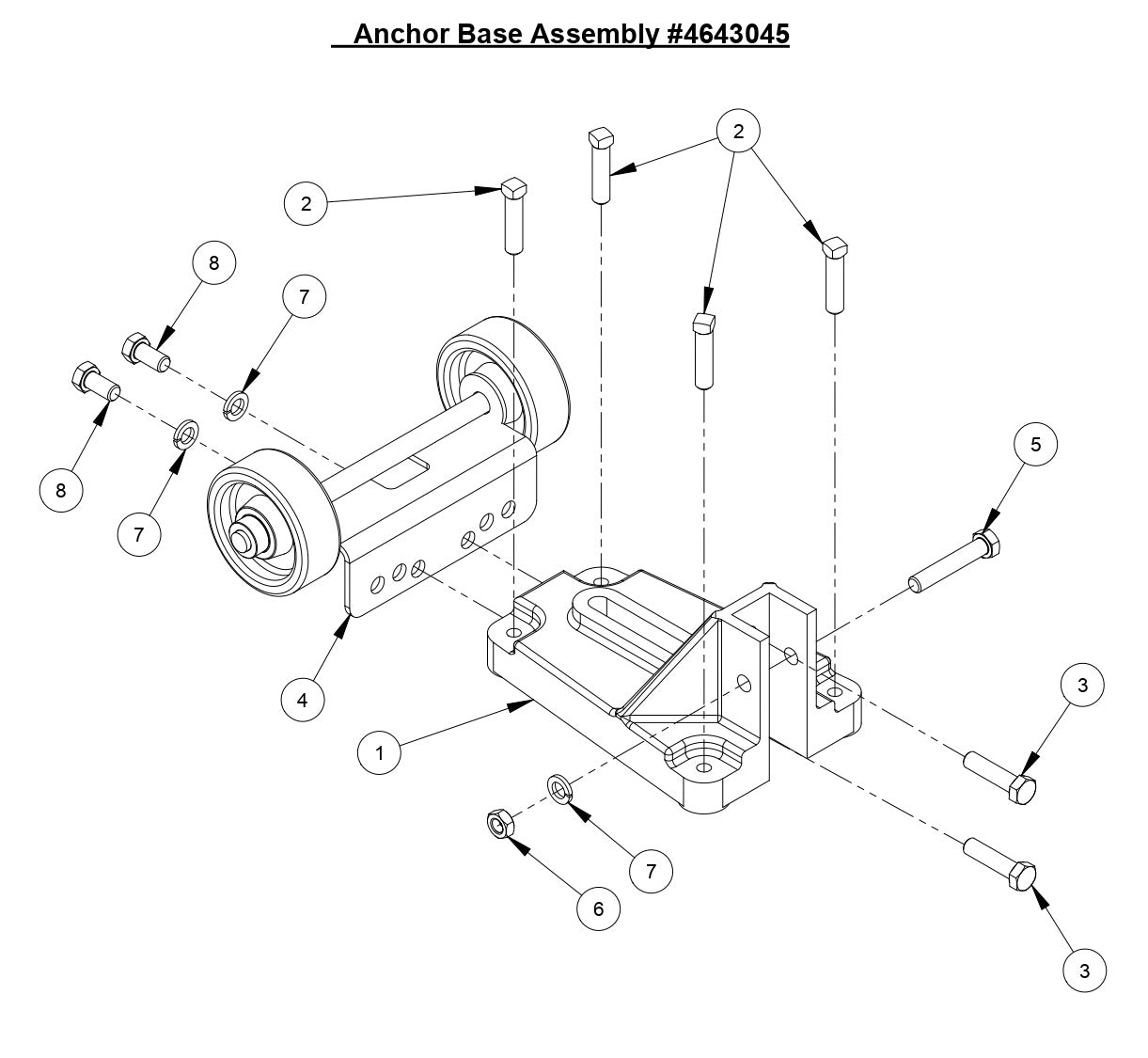

M-3 Anchor Base Assembly Parts

M-3 Anchor Base Assembly Parts

  • M-3 Anchor Base Assembly
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
4643005 Anchor Base for M-3 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$172.26
2
2900107 Set Screw, Sq. Hd., 0.05-13 x 2" for M-3 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$11.06
3
2900106 Cap Screw, Hex Hd., 1/2-13 x 2" for M-3 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$4.99
4
4643048 Axle Assembly 4" Wheels for M-3 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$87.16
5
2900105 Cap Screw, Hex Hd., 1/2-13 x 2-3/4" for M-3 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$8.82
6
2900129 1/2"-13 Jam Nut for M-3 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
7
2900084 Lock Washer, 1/2" Split for M-3 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
8
2900086 Cap Screw, Hex Hd., 1/2-13 x 1" for M-3 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$3.99
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
