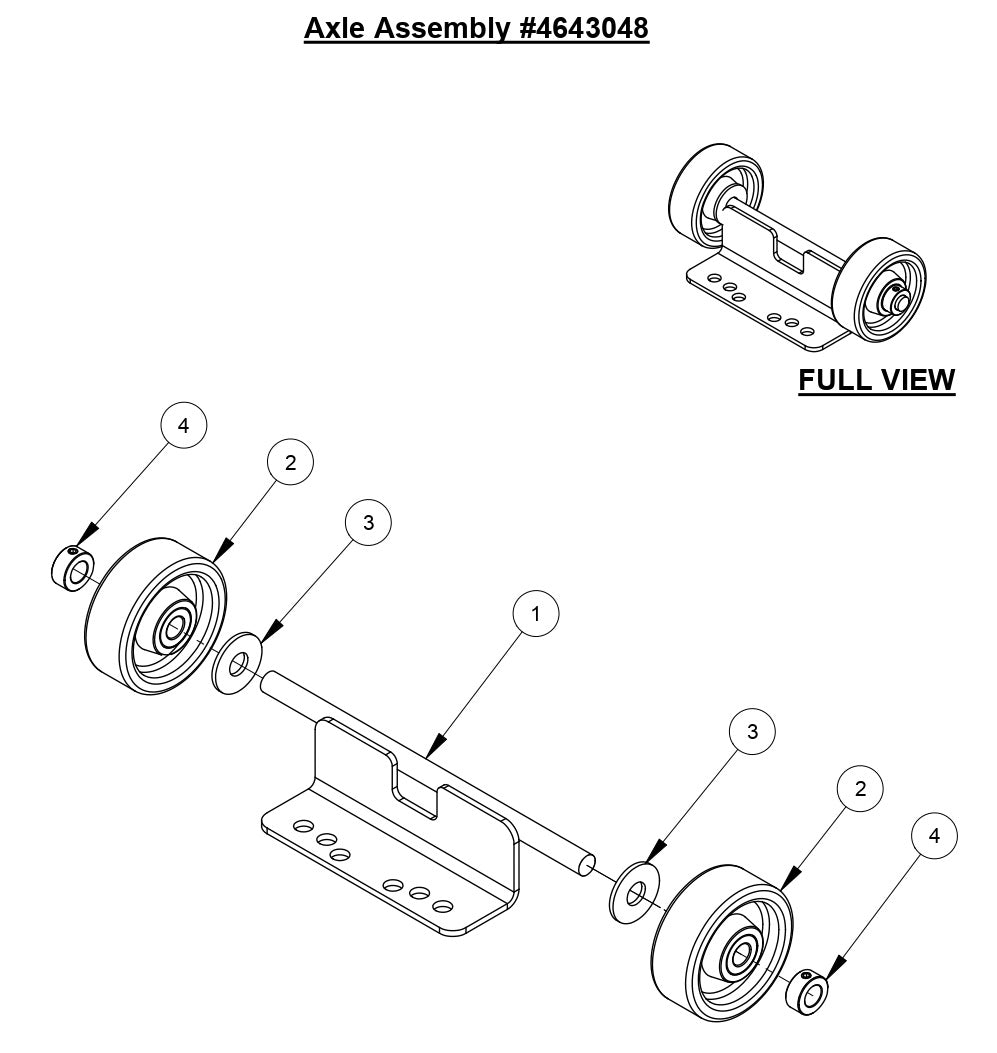

M-3 Axle Assembly Parts

M-3 Axle Assembly Parts

  • M-3 Axle Assembly
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
4646077 Wheel Mount Bracket Assembly for M-3 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$52.73
2
2400008 Wheel 4" x 1-1/2" x 5/8" for M-3 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$15.07
3
2900128 Flat Washer, 5/8" USS for M-3 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$3.99
4
2500008 Set Collar, 5/8" with Set Screw for M-3 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$6.37
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
