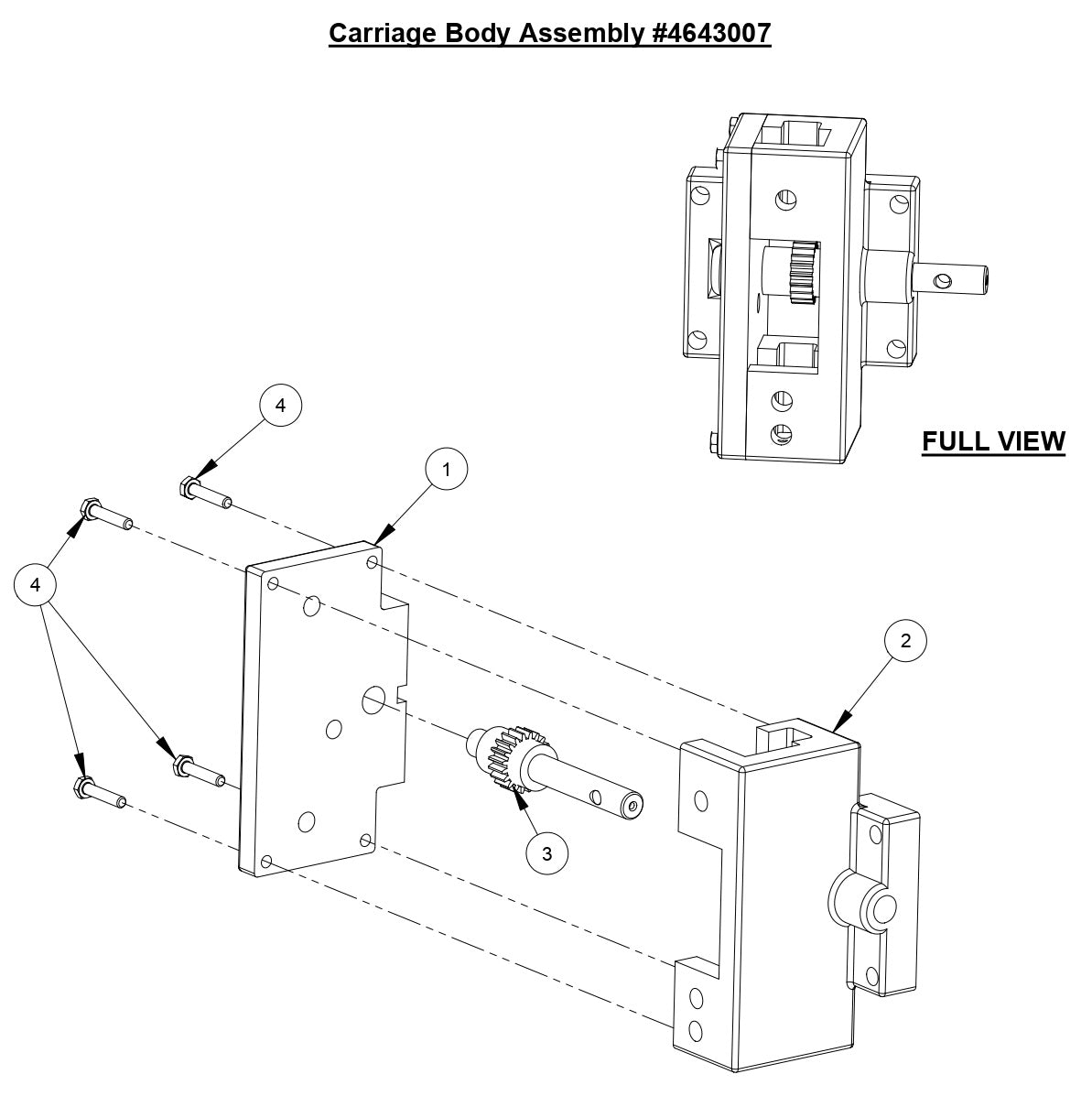

M-3 Carriage Body Assembly Parts

M-3 Carriage Body Assembly Parts

  • M-3 Carriage Body Assembly
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref.
Product
details
 Price Qty ActionAdd
1
4643008 Head Plate Casting for M-3 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products 4643008 Head Plate Casting for M-3 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$115.00
2
4643014 Head Casting for M-3 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products 4643014 Head Casting for M-3 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$144.54
3
4643015 Pinion Gear for M-3 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products 4643015 Pinion Gear for M-3 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$69.17
4
2900052 1/4-20 x 1.25" Hex Head Cap Screw by Diamond Products 2900052 1/4-20 x 1.25" Hex Head Cap Screw for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
