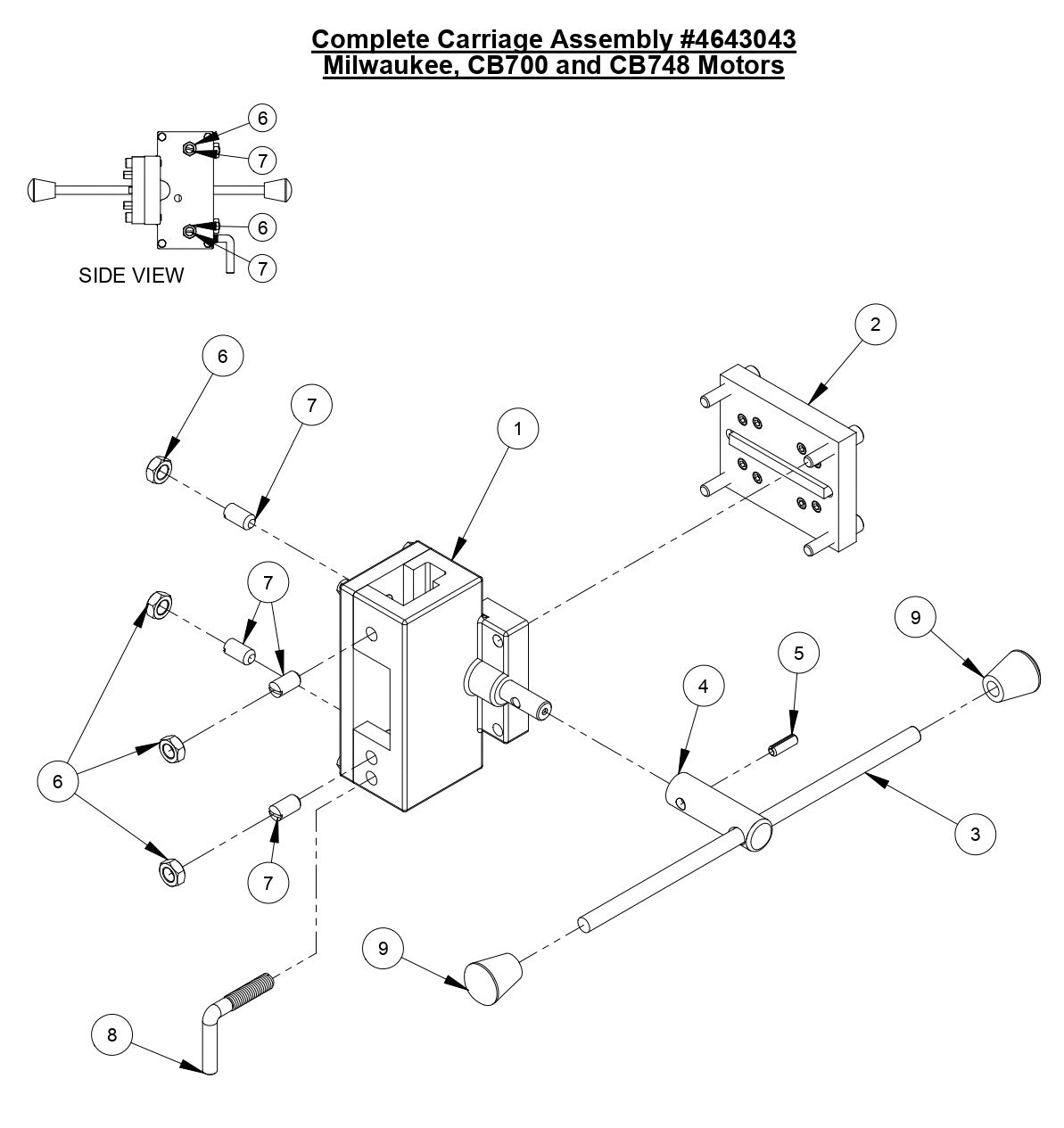

M-3 Complete Carriage Assembly (Milwaukee, CB700 and CB748 Motors) Parts

M-3 Complete Carriage Assembly (Milwaukee, CB700 and CB748 Motors) Parts

  • M-3 Complete Carriage Assembly (Milwaukee, CB700 and CB748 Motors)
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
4643007 Carriage Body Assembly for M-3 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$338.58
2
4643021 Motor Mount Plate for M-3 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$59.92
3
4643020 Handle for M-3 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$11.22
4
4643018 Handle Housing for M-3 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$36.68
5
2900111 Roll Pin, 5/16" x 1" for M-3 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
6
2900109 Jam Nut, 1/2-20 for M-3 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
7
2900110 Set Screw, 0.5-20x1-N for M-3 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$19.37
8
2900078 L-Bolt, 1/2-13 for M-3 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$14.88
9
2400155 Knob, Tapered, Push On for M-3 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$24.27
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
