M-3 Stair Base Assembly Parts

M-3 Stair Base Assembly Parts

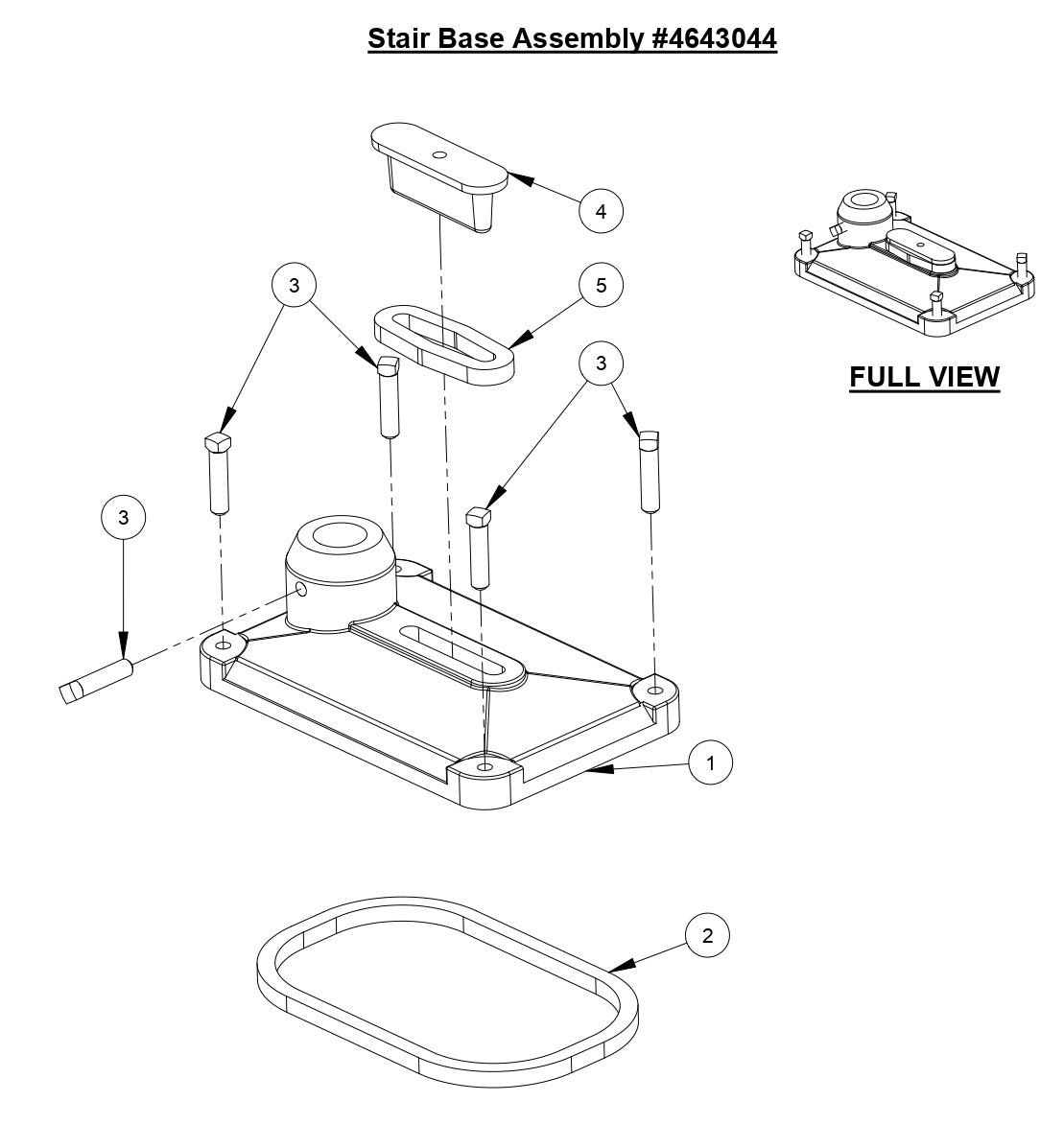

  • M-3 Stair Base Assembly
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
4643039 Stair Base for M-3 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$246.51
2
4643040 Vacuum Gasket for M-3 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$34.00
3
2900107 Set Screw, Sq. Hd., 0.05-13 x 2" for M-3 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$11.06
4
4645031 Slot Cap for M-3 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$56.40
5
2400003 Slot Cap Gasket for M-3 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$10.19
