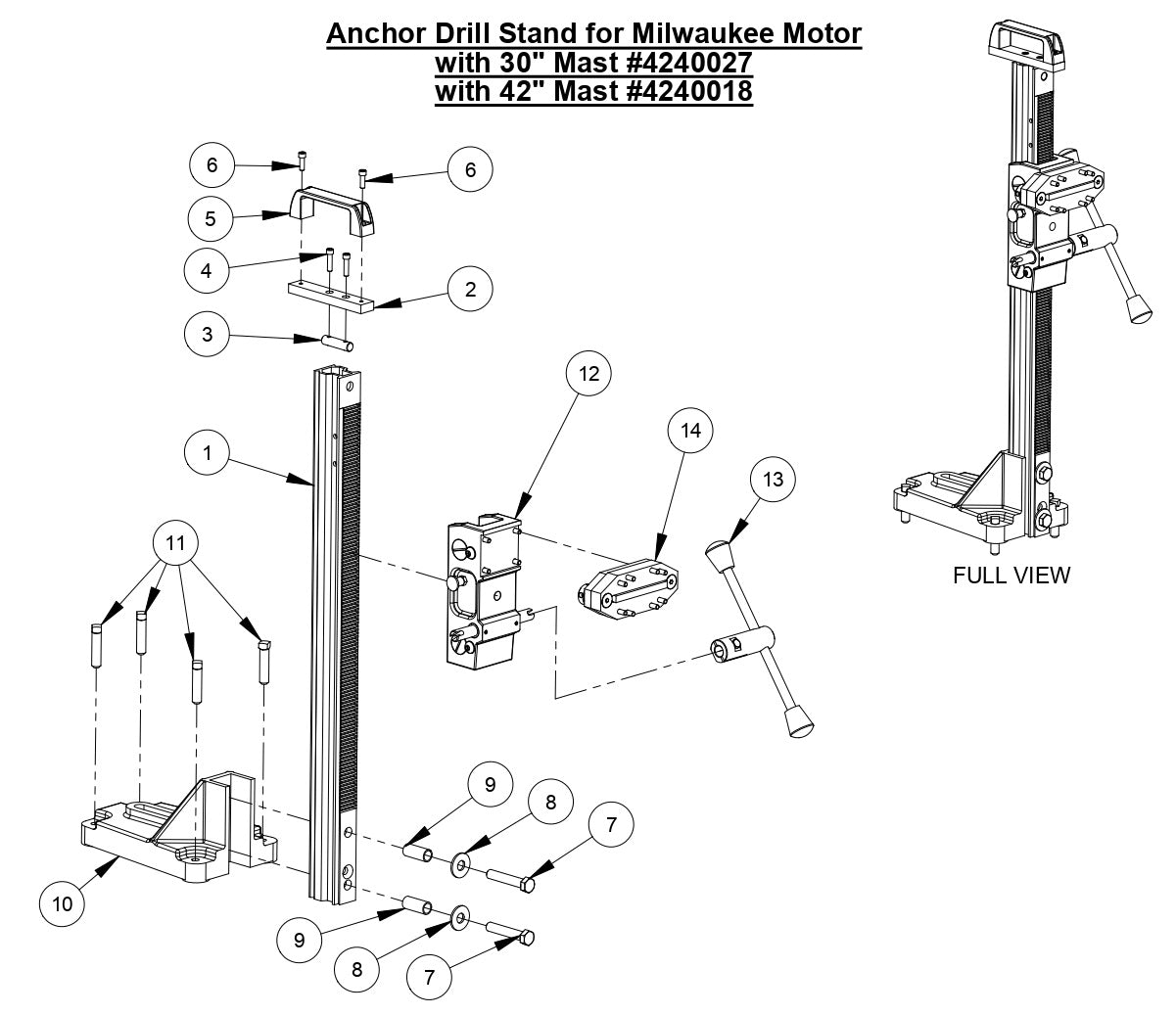

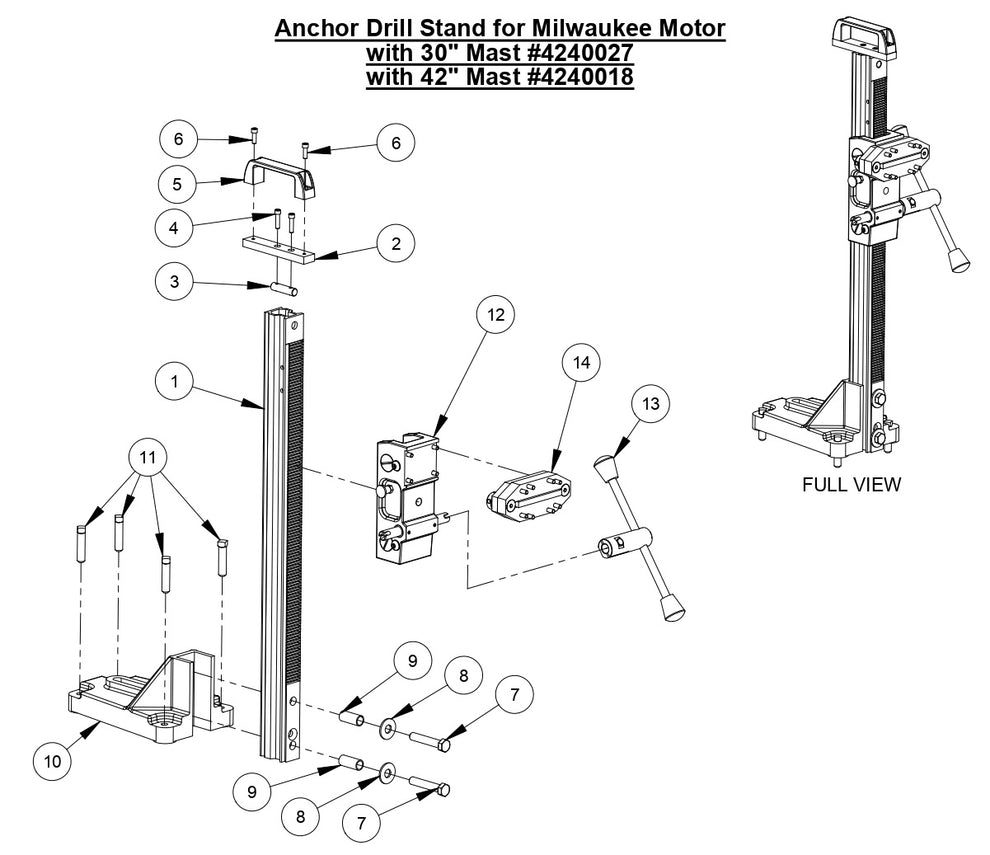

M-4 Anchor Drill Stand for Milwaukee Motor with 30" & 42" Mast Parts

M-4 Anchor Drill Stand for Milwaukee Motor with 30" & 42" Mast Parts

  • M-4 Anchor Drill Stand for Milwaukee Motor with 30" & 42" Mast
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
4600042 Rig Mast, 30" for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$302.94
1
4600047 Rig Mast, 42" for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$401.94
2
4600013 Handle Plate for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$19.02
3
4600014 Handle Pin for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$22.49
4
2900088 Cap Screw, Soc. Hd., 1/4-20 x 1" for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
5
2400145 Handle for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$13.54
6
2900247 Cap Screw, Soc. Hd., 1/4-20 x 3/4" for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
7
2900105 Cap Screw, Hex Hd., 1/2-13 x 2-3/4" for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$8.82
8
2900127 Flat Washer, 1/2" USS for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
9
4600044 Mast Bushing for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$13.74
10
4600048 M-4 Anchor Base for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$169.29
11
2900107 Set Screw, Sq. Hd., 0.05-13 x 2" for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$11.06
12
4600028 Carriage Assembly for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$372.00
13
4600049 Handle Assembly for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$121.20
14
4600029 Motor Mount Assembly for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$214.83
