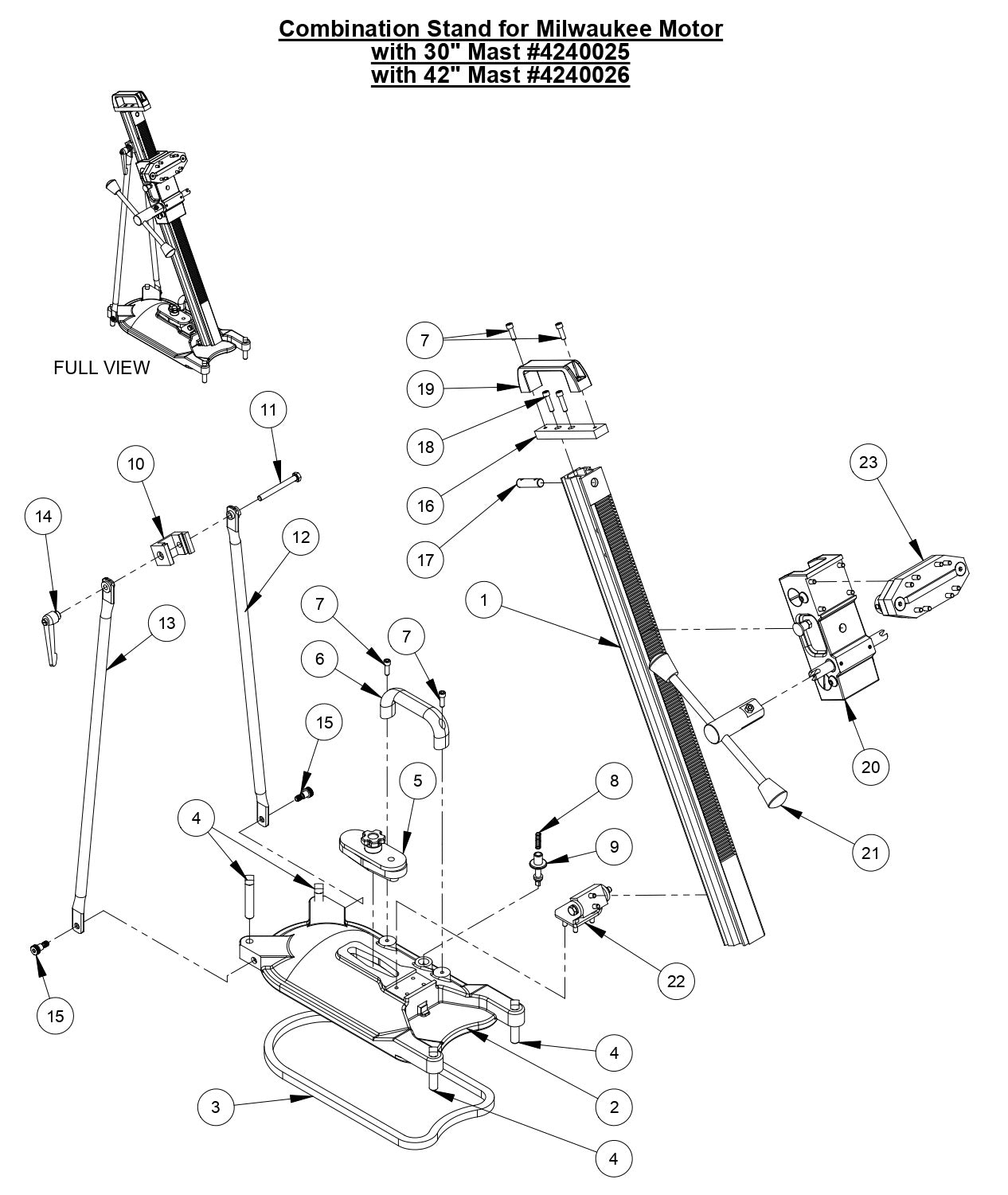

M-4 Combination Stand for Milwaukee Motors with 30" & 42" Masts Parts

M-4 Combination Stand for Milwaukee Motors with 30" & 42" Masts Parts

  • M-4 Combination Stand for Milwaukee Motors with 30" & 42" Masts
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
4600007 Combo Mast 30" for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$291.06
1
4600034 Combo Mast 42" for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$388.08
2
4600001 M-4 Combo Base for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$171.27
3
4600016 Vacuum Gasket for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$48.90
4
2900229 Set Screw, Sq. Hd., 1/2"-13 x 2 1/2" for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$8.70
5
4600046 Slot Cap Assembly for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$54.88
6
4600015 Base Handle for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$64.40
7
2900247 Cap Screw, Soc. Hd., 1/4-20 x 3/4" for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
8
2400149 Spring, 1" Long for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$8.58
9
4600022 Vacuum Release Valve and O-Ring for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$25.11
10
4600006 Mast Sliding Clamp for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$26.92
11
2900248 Cap Screw, Hex Hd., 5/16-18 x 3" for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$4.99
12
4600040 Angle Brace with Bushing - Left Hand for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$76.40
13
4600041 Angle Brace with Bushing - Right Hand for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$82.86
14
2400152 Adjustable Handle 5/16 -18 for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$32.11
15
2900253 Shoulder Screw 3/8" x 3/8", 5/16"-18 for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$3.99
16
4600013 Handle Plate for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$19.02
17
4600014 Handle Pin for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$22.49
18
2900088 Cap Screw, Soc. Hd., 1/4-20 x 1" for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
19
2400145 Handle for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$13.54
20
4600028 Carriage Assembly for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$372.00
21
4600049 Handle Assembly for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$121.20
22
4600193 Mast Lower Clamp Assembly for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$46.72
23
4600029 Motor Mount Assembly for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$214.83
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
