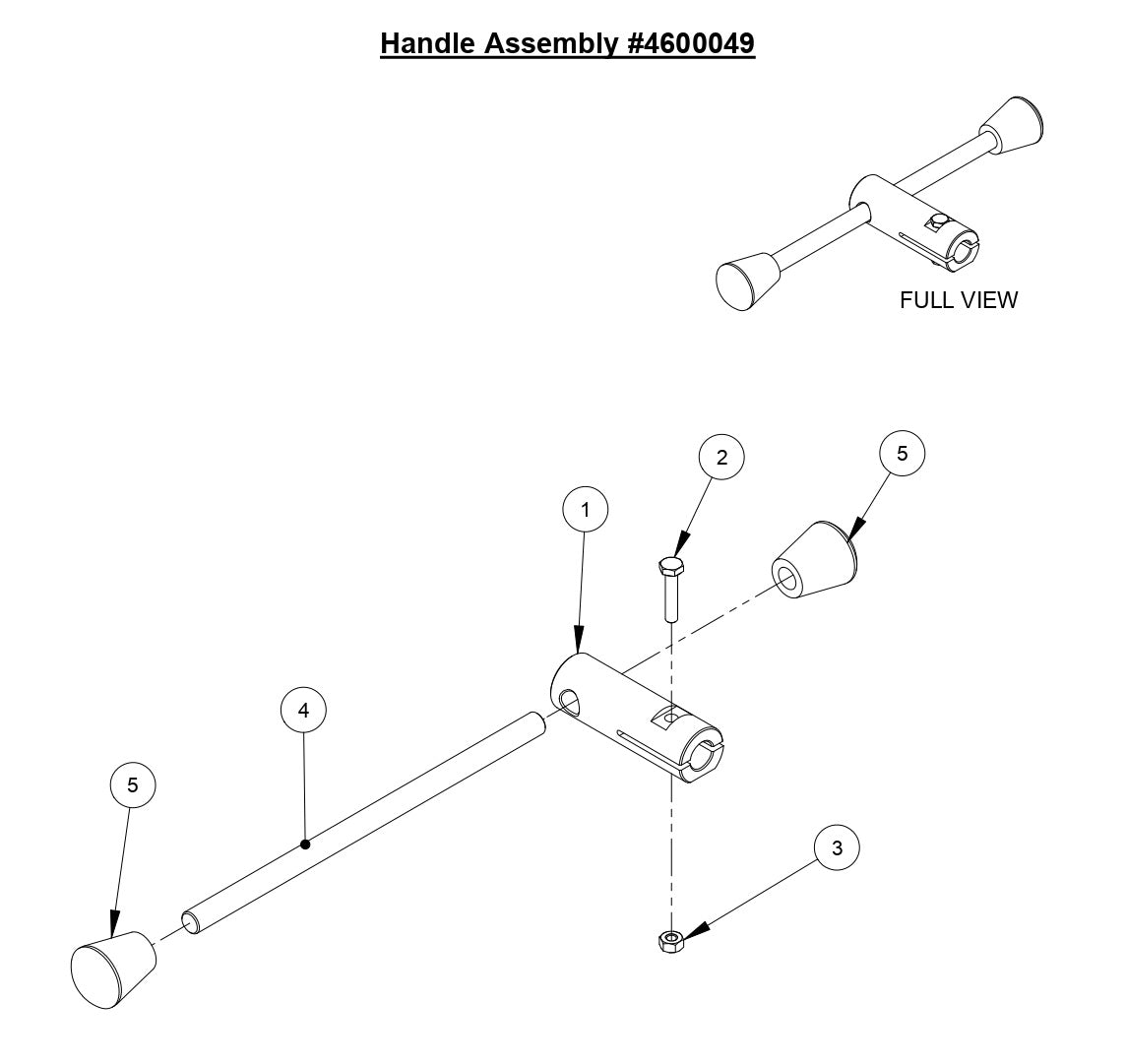

M-4 Handle Assembly Parts

M-4 Handle Assembly Parts

  • M-4 Handle Assembly
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
4600011 Handle Housing for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$65.39
2
2900052 Cap Screw, Hex Hd., 1/4-20 x 1-1/4" for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
3
2900125 Hex Nut, 1/4-20 for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
4
4600012 Feed Handle for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$14.31
5
2400155 Knob, Tapered, Push On for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$24.27
