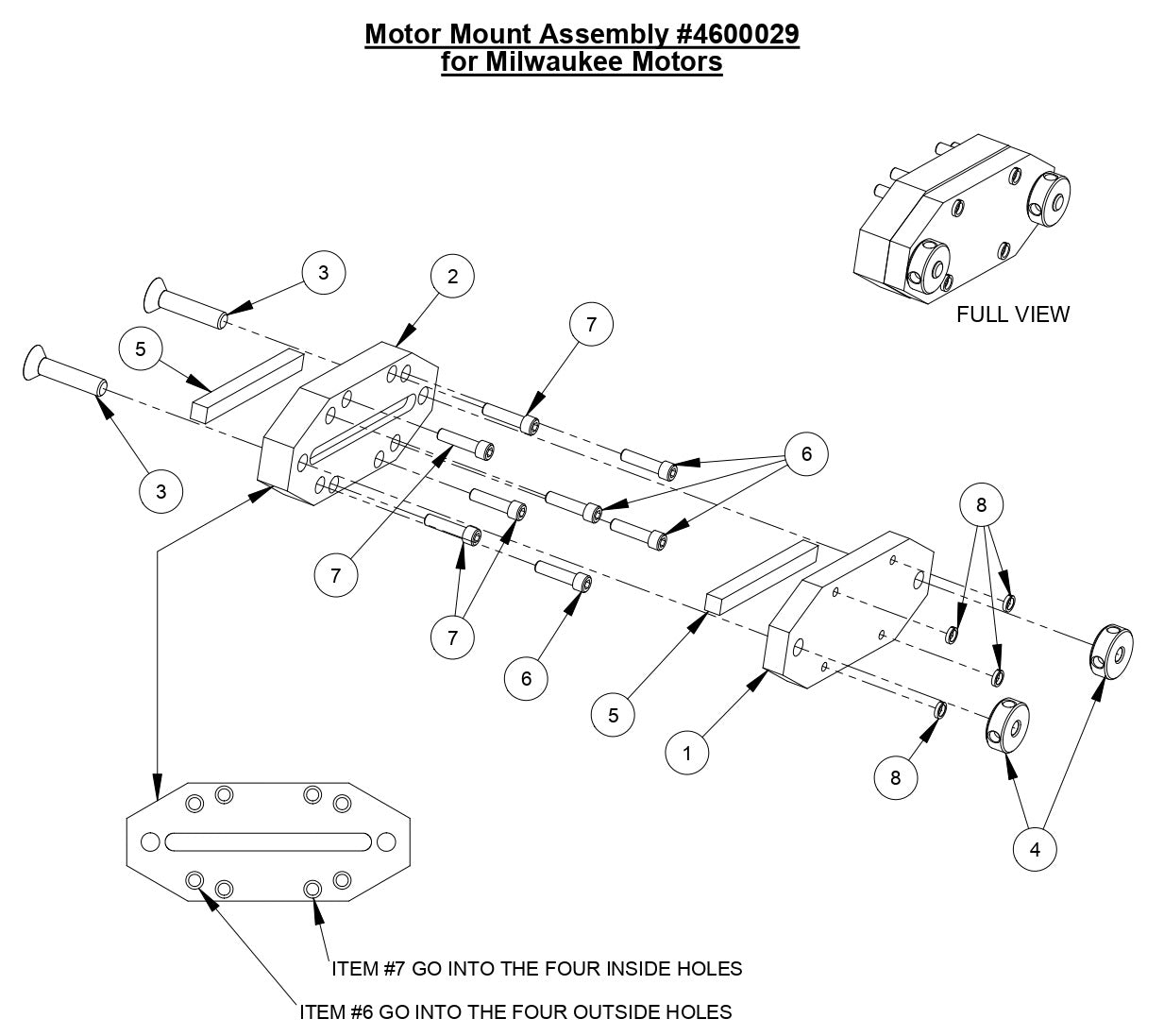

M-4 Motor Mount Assembly for Milwaukee Motors Parts

M-4 Motor Mount Assembly for Milwaukee Motors Parts

  • M-4 Motor Mount Assembly for Milwaukee Motors
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
4600020 Carriage Adapter Plate for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$66.72
2
4600021 Motor Mount Plate for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$53.21
3
2900251 Cap Screw, Flat Hd., 3/8-18 x 1-3/4" for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$6.99
4
2400163 Knurled Nut 3/8 -16 for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$24.75
5
4645006 Key, 3/8" Sq. x 4" for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$8.30
6
2900088 Cap Screw, Soc. Hd., 1/4-20 x 1" for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
7
2900089 Cap Screw, Soc. Hd., 1/4-28 x 1" for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
8
2900404 Lock Washer, 1/4" Split High Collar for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
