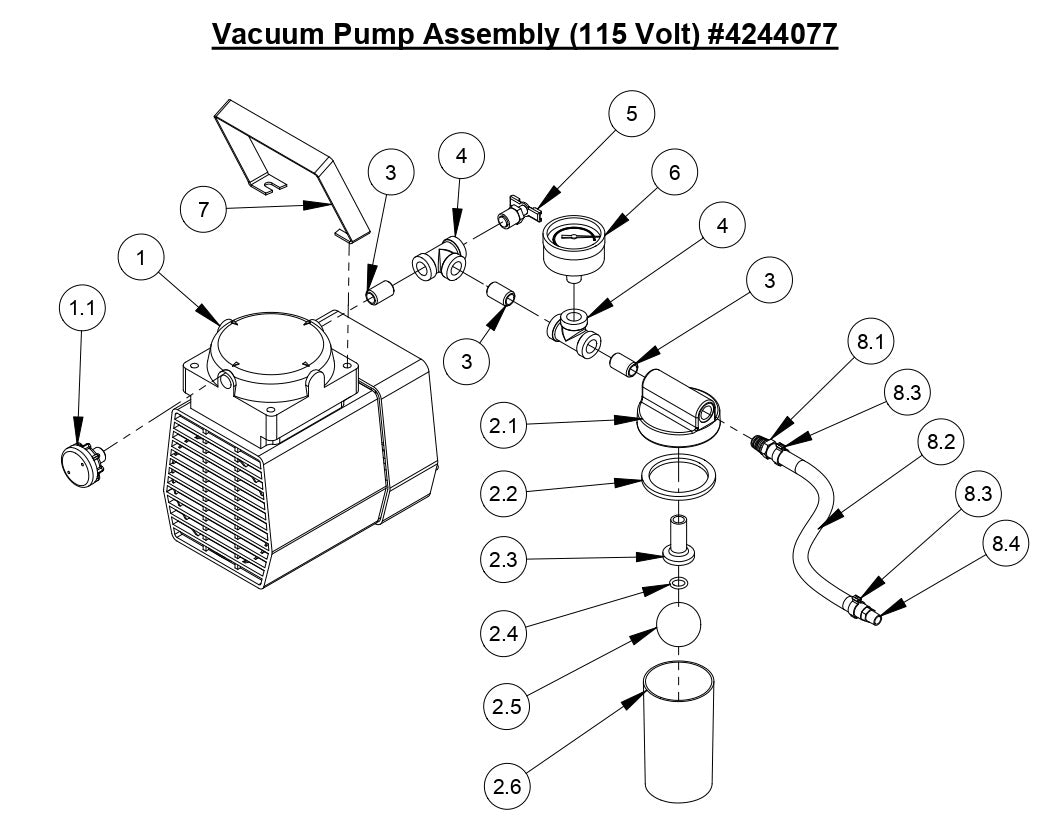

M-4 Vaccum Pump Assembly (115 Volt) Parts

M-4 Vaccum Pump Assembly (115 Volt) Parts

  • M-4 Vaccum Pump Assembly (115 Volt)
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
2600016 Vacuum Pump (115 Volt) for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$598.95
1.1
2700168 Muffler for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$73.29
2
2700171 Water Jar Assembly for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$190.08
2.1
2700014 Water Jar Lid for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$124.74
2.2
2700017 Water Jar Gasket for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$16.01
2.3
2700015 Funnel Fitting for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$51.92
2.4
2700172 Float Ball for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$17.58
2.5
2700170 Water Trap Jar for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$42.70
2.6
3200007 Close Nipple, 1/4 NPT for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$21.10
3
3200010 Pipe Tee, 1/4" FPT for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$15.07
4
3200035 Petcock, 1/4" NPT for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$12.00
5
2700164 Gauge, Vacuum for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$52.44
6
2700144 Pump Handle for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$111.00
7
4699492 Hose Assembly - 5' Long for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$42.38
8
3200019 Fitting, 1/4" M. Pipe to 1/4" Hose Barb for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$8.08
8.1
4699432 Air Hose, 5' Long for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$19.37
8.2
3200017 Clamp, Pinch On for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$3.99
8.3
3200018 Fitting, 1/8" M. Pipe to 1/4" Hose Barb for M-4 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$10.86
