M-5 Anchor Drill Stand Assembly with 40", 50" & 60" Mast Parts

M-5 Anchor Drill Stand Assembly with 40", 50" & 60" Mast Parts

  • M-5 Anchor Drill Stand Assembly with 40", 50" & 60" Mast
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
4600115 M-5 Anchor Mast 40" for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$631.62
1
4600135 M-5 Anchor Mast 50" for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$724.68
1
4600127 M-5 Anchor Mast 60" for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$907.83
2
2900400 Cap Screw, Hex Hd., 1/2-13 x 3-3/4" for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$6.99
3
4600117 Mast Bushing for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$12.36
4
2900084 Lock Washer, 1/2" Split for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
5
2900129 Jam Nut, 1/2-13 for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
6
4645038 M-1 Anchor Base for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$262.35
7
2900542 Tap Bolt, Hex Hd., 1/2-13 x 3-1/2" for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$6.99
8
2900086 Cap Screw, Hex Hd., 1/2-13 x 1" for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$3.99
9
4645046 Wheel Assembly for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$86.09
10
4600121 Mast Top for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$29.90
11
2900175 Cap Screw, Soc. Hd., 3/8-16 x 1" for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$4.99
12
4600105 Handle Plate for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$25.83
13
2900247 Cap Screw, Soc. Hd., 1/4-20 x 3/4" for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
14
2400145 Handle for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$13.54
15
4645016 Ceiling Jack for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$101.00
16
2400146 Wrench, 3/4" Combination for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$41.42
17
4600128 M-5 Carriage Assembly for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$625.20
18
4600129 M-5 Spoke Handle Assembly for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$128.70
19
4600130 Motor Mount Assembly for M-5 Core Rigs by Core Bore Diamond Products
$223.74
20
4600139 Switch Mounting Clamp Assembly for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$65.64
21
2400186 Magnetic Catch for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$18.71
View full details

Frequently asked questions

How do I use this diagram?

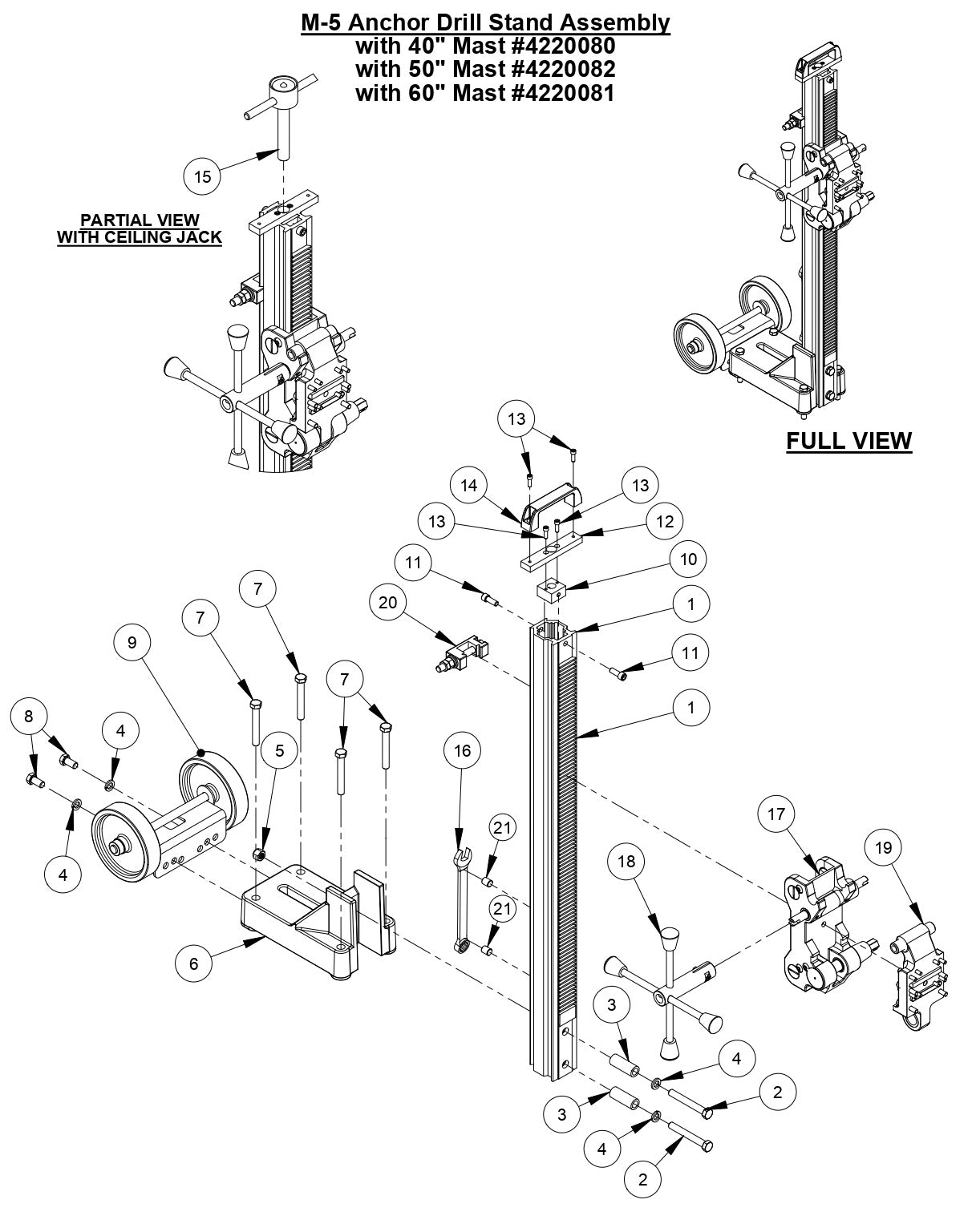

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.
