M-5 Carriage Assembly Parts

M-5 Carriage Assembly Parts

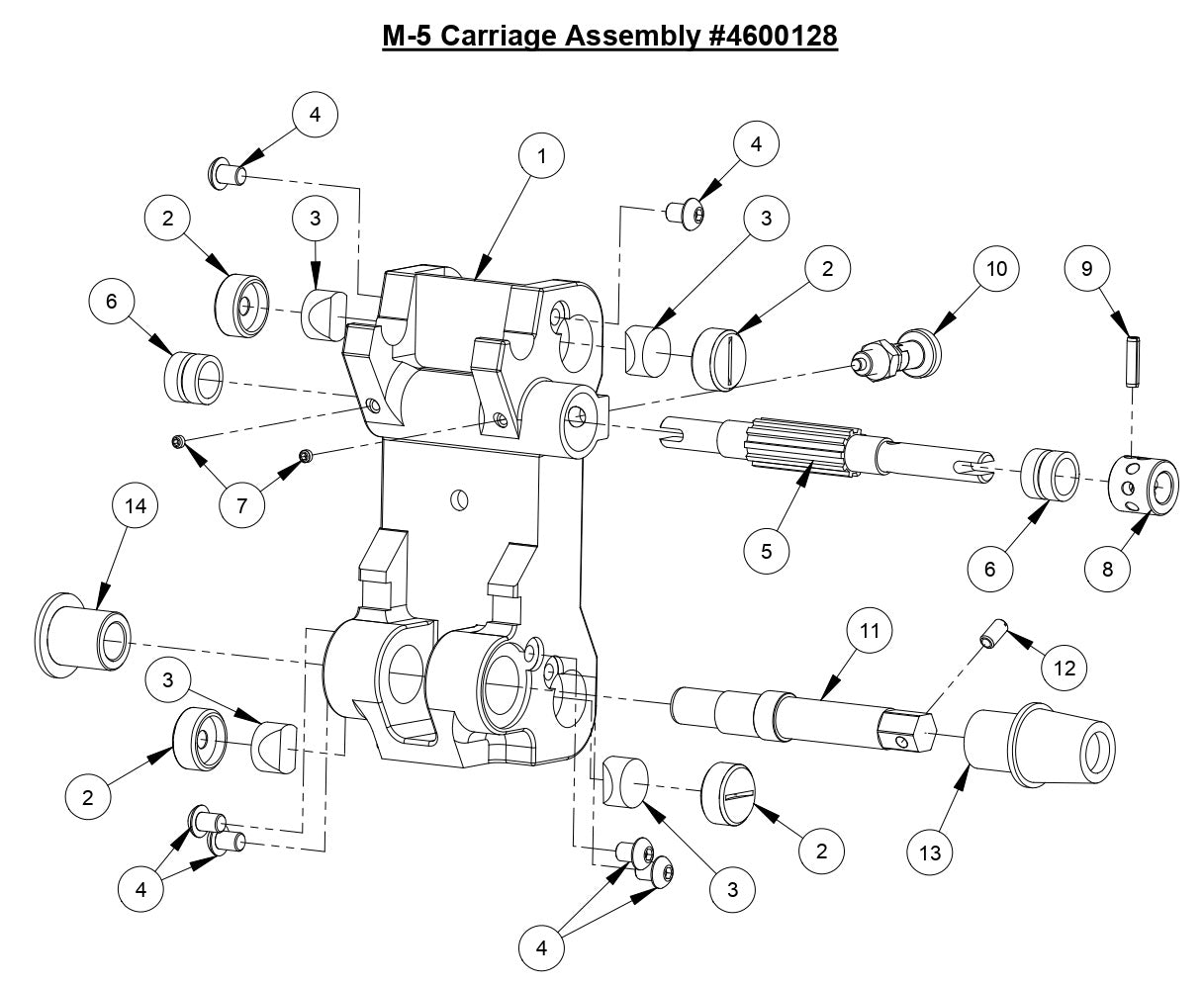

  • M-5 Carriage Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
4600102 M-5 Carriage for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$149.49
2
4600017 Guide Adjuster for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$23.78
3
4600018 Carriage Guide for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$19.00
4
2900285 Cap Screw, Button Hd.,3/8-24 x 1/2" for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$6.99
5
4600112 M-5 Pinion Gear for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$120.00
6
2400141 Pinion Bearing for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$30.68
7
2900386 Set Screw, Soc. Cone Point, 1/4-20 x 1/4" for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$3.99
8
4600113 Pinion Lock Bushing for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$65.08
9
2900391 Roll Pin, 1/4" x 1" for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
10
2400138 Indexing Plunger 1/2-13 for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$53.46
11
4600108 Cam Lock Shaft for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$67.16
12
2400143 Ball Plunger M8 for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$10.28
13
4600109 Cam Shaft Housing for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$67.15
14
4600110 Cam Shaft Bushing for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$34.13
