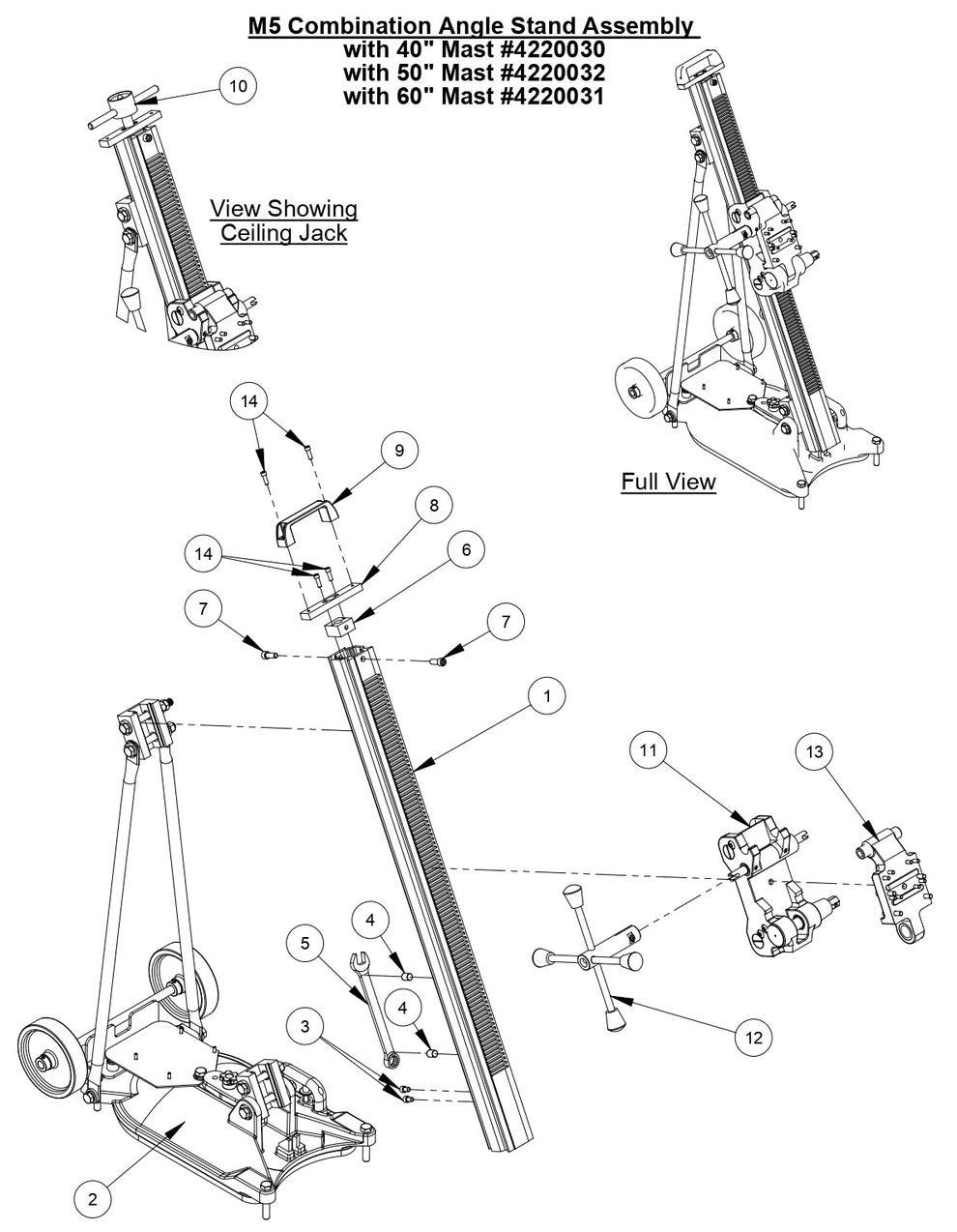

M-5 Combination Angle Stand Assembly 40", 50" & 60" Mast Parts

M-5 Combination Angle Stand Assembly 40", 50" & 60" Mast Parts

  • M-5 Combination Angle Stand Assembly 40", 50" & 60" Mast
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
4600106 M-5 Anchor/Swivel Mast 40" for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$631.62
1
4600134 M-5 Anchor/Swivel Mast 50" for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$724.68
1
4600123 M-5 Anchor Swivel Mast 60" for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$907.83
2
4220083 Combination Angle Base Assembly for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$1,126.62
3
2900396 Cap Screw, Soc. Hd., 5/16-18 x 1/2" for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$3.99
4
2400186 Magnetic Catch for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$18.71
5
2400146 Wrench, 3/4" Combination for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$41.42
6
4600121 Mast Top for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$29.90
7
2900175 Cap Screw, Soc. Hd., 3/8-16 x 1" for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$4.99
8
4600105 Handle Plate for M-5 Pro Core Bore Drilling Machine Core Cut by Diamond Products
$25.83
9
2400145 Handle for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$13.54
10
4645016 Ceiling Jack for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$101.00
11
4600128 M-5 Carriage Assembly for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$625.20
12
4600129 M-5 Spoke Handle Assembly for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$128.70
13
4600130 Motor Mount Assembly for M-5 Core Rigs by Core Bore Diamond Products
$223.74
14
2900247 Cap Screw, Soc. Hd., 1/4-20 x 3/4" for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
