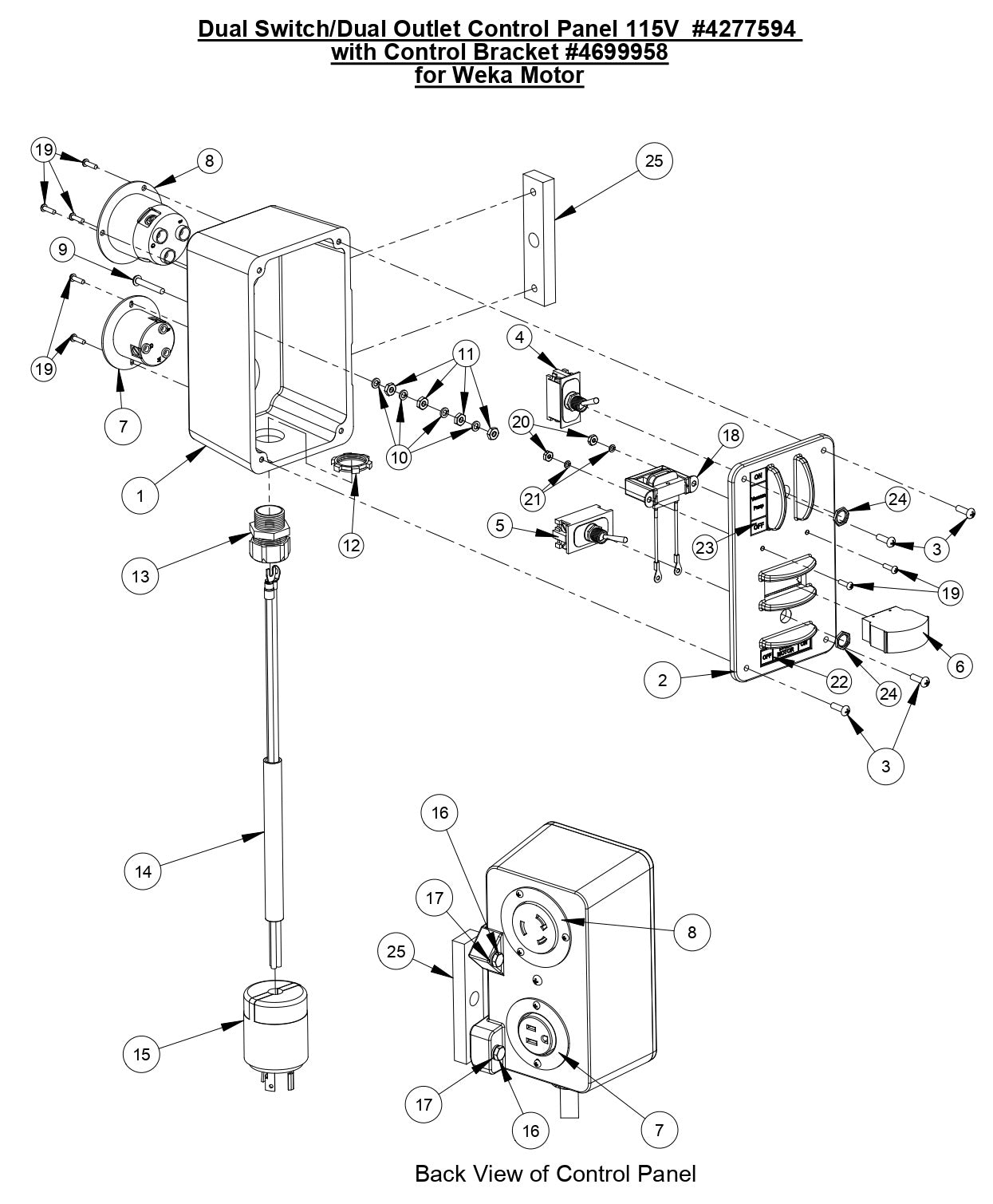

M-5 Dual Switch/Dual Outlet Control Panel 115 Volt with Control Bracket for Weka Motors Parts

M-5 Dual Switch/Dual Outlet Control Panel 115 Volt with Control Bracket for Weka Motors Parts

  • M-5 Dual Switch/Dual Outlet Control Panel 115 Volt with Control Bracket for Weka Motors
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
4699957 Control Box for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$145.53
2
4699460 Cover Plate for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$45.20
3
2900159 Machine Screw, Rd. Hd., #10-24 x 5/8" for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
4
2800016 Toggle Switch 16Amp/125V for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$48.88
5
2800017 Toggle Switch, 20A/125V for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$50.64
6
2800558 Amp Meter 115V, 0-30 Amp for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$121.20
7
2800018 Flanged Outlet, 15 Amp, 125 Volt for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$28.97
8
2800039 Flanged Outlet, 30 Amp, 125 Volt for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$245.52
9
2900172 Machine Screw, Rd. Hd., #10-24 x 1-1/4" for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
10
2900038 Lock Washer, #10 Split for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
11
2900050 Hex Nut, #10-24 for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
12
2800050 Lock Nut, 3/4" Sealing for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$22.60
13
2800171 Connector, 3/4" Cord for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$52.73
14
4699506 Line Cord for 115 Volt - 14" for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$36.59
15
2800023 Plug, 125V, 30A, Twist Lock for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$38.74
16
2900052 Cap Screw, Hex Hd., 1/4-20 x 1-1/4" for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
17
2900024 Lock Washer, 1/4" Split for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
18
2800085 AC Current Transformer for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$65.32
19
2900090 Machine Screw, Rd. Hd., #6-32 x 1/2" for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
20
2900091 Hex Nut, #6-32 for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
21
2900092 Lock Washer, #6 Split for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
22
1800253 ON/OFF Drill Motor Label for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$6.99
23
1800254 ON/OFF Vacuum Pump Label for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$6.99
24
2900204 Nut, Toggle Switch, 15/32"-32 for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
25
4699958 Control Box Bracket for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$37.66
