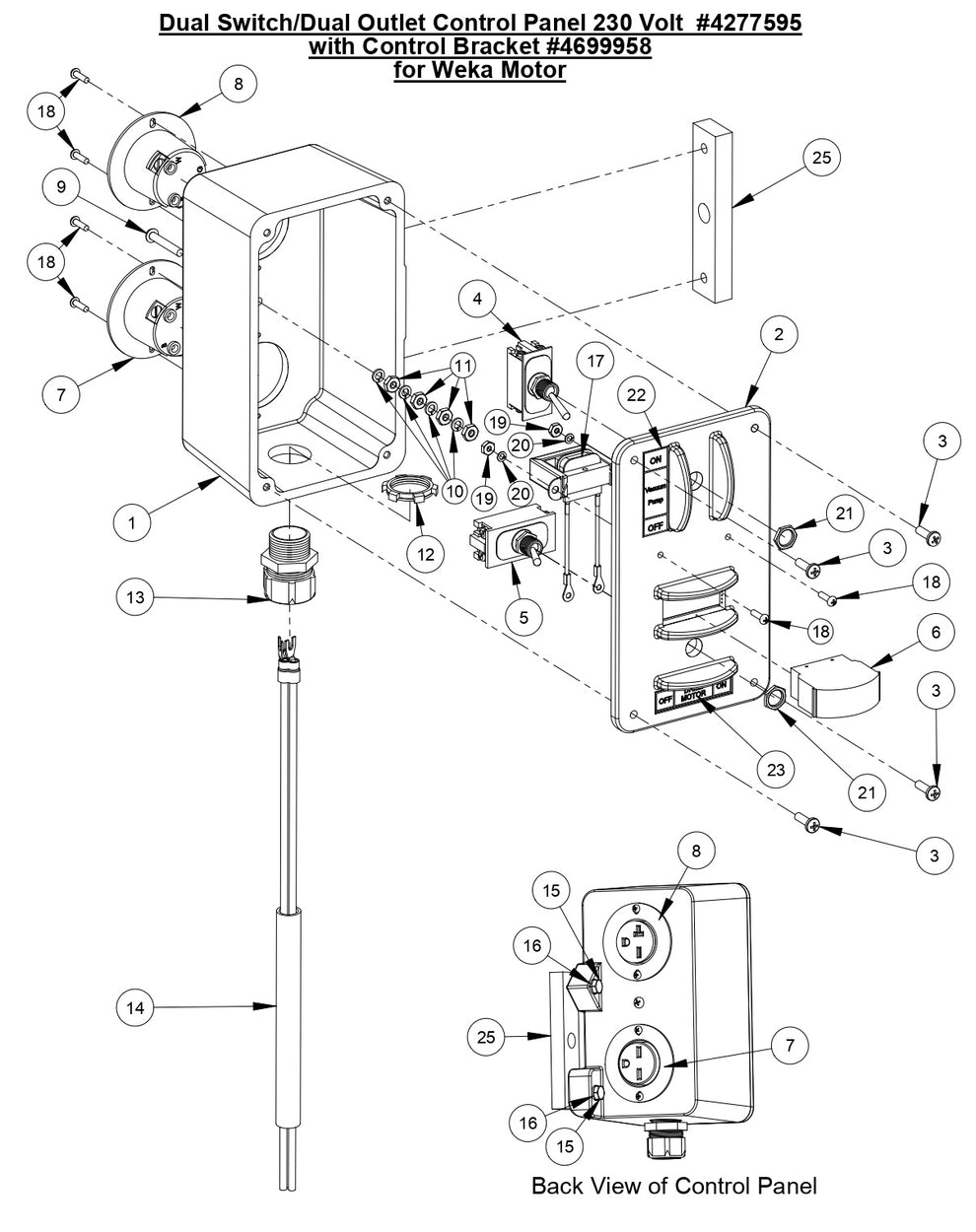

M-5 Dual Switch/Dual Outlet Control Panel 230 Volt with Control Bracket for Weka Motors Parts

M-5 Dual Switch/Dual Outlet Control Panel 230 Volt with Control Bracket for Weka Motors Parts

  • M-5 Dual Switch/Dual Outlet Control Panel 230 Volt with Control Bracket for Weka Motors
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
4699440 Control Box Body for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$112.96
2
4699460 Cover Plate for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$45.20
3
2900159 Machine Screw, Rd. Hd., #10-24 x 5/8" for CC6561 Concrete Saw Core Cut by Diamond Products
$2.99
4
2800016 Toggle Switch 16Amp/125V for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$48.88
5
2800017 Toggle Switch, 20A/125V for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$50.64
6
2800020 Amp Meter 115V, 0-25 Amp for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$66.10
7
2800045 Flanged Outlet, 15 Amp, 250 Volt for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$40.89
8
2800046 Flanged Outlet, 20 Amp, 250 Volt for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$51.65
9
2900172 Machine Screw, Rd. Hd., #10-24 x 1-1/4" for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
10
2900038 Lock Washer, #10 Split for CC150XL-EE Concrete Saw Core Cut by Diamond Products
$2.99
11
2900050 Hex Nut, #10-24 for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
12
2800050 Lock Nut, 3/4" Sealing for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$22.60
13
2800043 Connector, 3/4" Cord for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$24.75
14
4699507 Line Cord for 230 Volt - 14" for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$33.84
15
2900052 1/4-20 x 1.25" Hex Head Cap Screw for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
16
2900024 Lock Washer 1/4" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
17
2800085 AC Current Transformer for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$65.32
18
2900090 Machine Screw, Rd. Hd., #6-32 x 1/2" for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
19
2900091 Hex Nut, #6-32 for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
20
2900092 Lock Washer, #6 Split for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
21
2900204 Nut, Toggle Switch, 15/32"-32 for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
22
1800254 ON/OFF Vacuum Pump Label for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$6.99
23
1800253 ON/OFF Drill Motor Label for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$6.99
25
4699958 Control Box Bracket for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$37.66
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.
