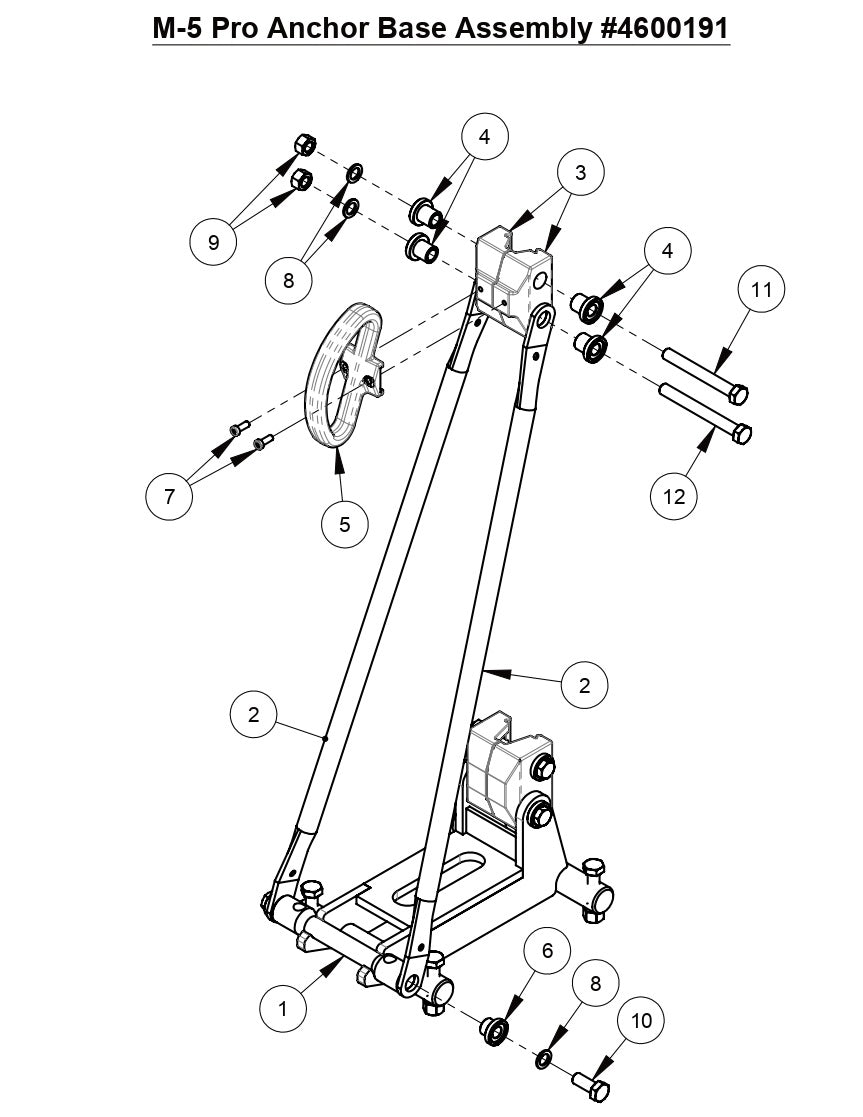

M-5 Pro Anchor Base Assembly Parts

M-5 Pro Anchor Base Assembly Parts

  • M-5 Pro Anchor Base Assembly
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
4600199 Anchor Base w/Harware for M-5 Pro Core Bore Drilling Machine Core Cut by Diamond Products
$552.00
2
4600265 Angle Brace for M-5 Pro Core Bore Drilling Machine Core Cut by Diamond Products
$99.00
3
3403288 Locking Clamp for M-5 Pro Core Bore Drilling Machine Core Cut by Diamond Products
$73.00
4
4600268 Tension Bushing for M-5 Pro Core Bore Drilling Machine Core Cut by Diamond Products
$24.75
5
4600264 Handle for M-5 Pro Core Bore Drilling Machine Core Cut by Diamond Products
$60.26
6
4600270 Bushing, for M12 Screw for M-5 Pro Core Bore Drilling Machine Core Cut by Diamond Products
$22.60
7
3400709 Cap Screw, Soc. Low Hd. , M6 x 16mm for M-5 Pro Core Bore Drilling Machine Core Cut by Diamond Products
$4.99
8
3403010 Washer, M12 20/13/2mm for M-5 Pro Core Bore Drilling Machine Core Cut by Diamond Products
Call for Price call for price call for price
9
2900482 Hex Nut, M12-1.75 for M-5 Pro Core Bore Drilling Machine Core Cut by Diamond Products
$4.99
10
2900330 Cap Screw, Hex Hd., M12 x 1.75 x 30mm for M-5 Pro Core Bore Drilling Machine Core Cut by Diamond Products
$3.99
11
2900347 Cap Screw, Hex Hd., M12-1.75 x 100mm for M-5 Pro Core Bore Drilling Machine Core Cut by Diamond Products
$6.99
12
2900348 Cap Screw, Hex Hd., M12-1.75 x 110mm for M-5 Pro Core Bore Drilling Machine Core Cut by Diamond Products
$11.84
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.
