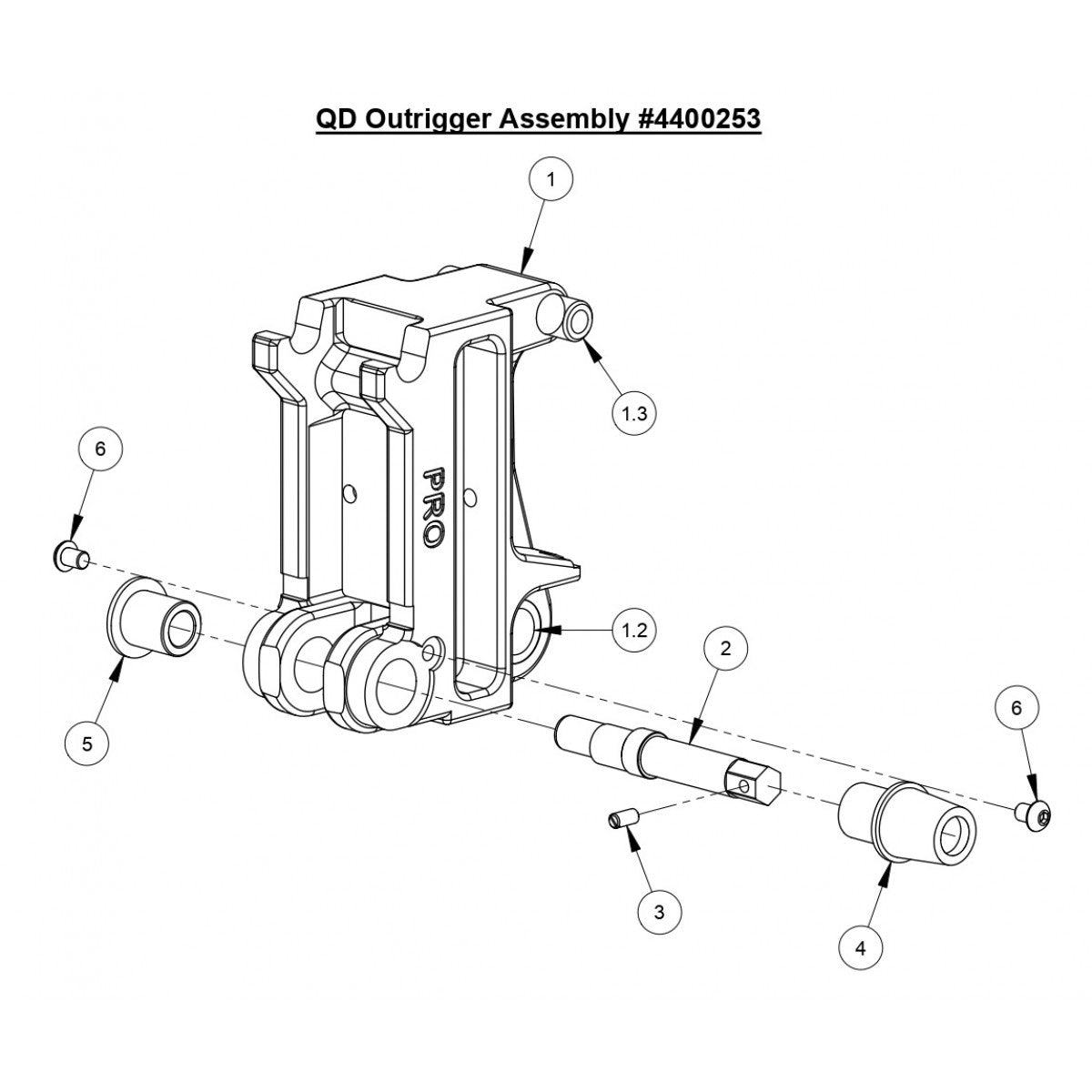

M-5 Pro Qd Outrigger Assembly

M-5 Pro Qd Outrigger Assembly

  • M-5 Pro Qd Outrigger Assembly
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
4400255 QD Outrigger for M-5 Pro Core Bore Drilling Machine Core Cut by Diamond Products
Call for Price call for price call for price
1.2
2400144 Bronze Bearing, 1-3/8" x 1" for M-5 Pro Core Bore Drilling Machine Core Cut by Diamond Products
$23.67
1.3
4600111 Support Tube for M-5 Pro Core Bore Drilling Machine Core Cut by Diamond Products
$32.29
2
4600108 Cam Lock Shaft for M-5 Pro Core Bore Drilling Machine Core Cut by Diamond Products
$67.16
3
2400143 Ball Plunger M8 for M-5 Pro Core Bore Drilling Machine Core Cut by Diamond Products
$10.28
4
4600109 Cam Shaft Housing for M-5 Pro Core Bore Drilling Machine Core Cut by Diamond Products
$67.15
5
4600110 Cam Shaft Bushing for M-5 Pro Core Bore Drilling Machine Core Cut by Diamond Products
$34.13
6
2900285 Cap Screw, Button Hd., 3/8-24 x 1/2" for M-5 Pro Core Bore Drilling Machine Core Cut by Diamond Products
$6.99
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details
