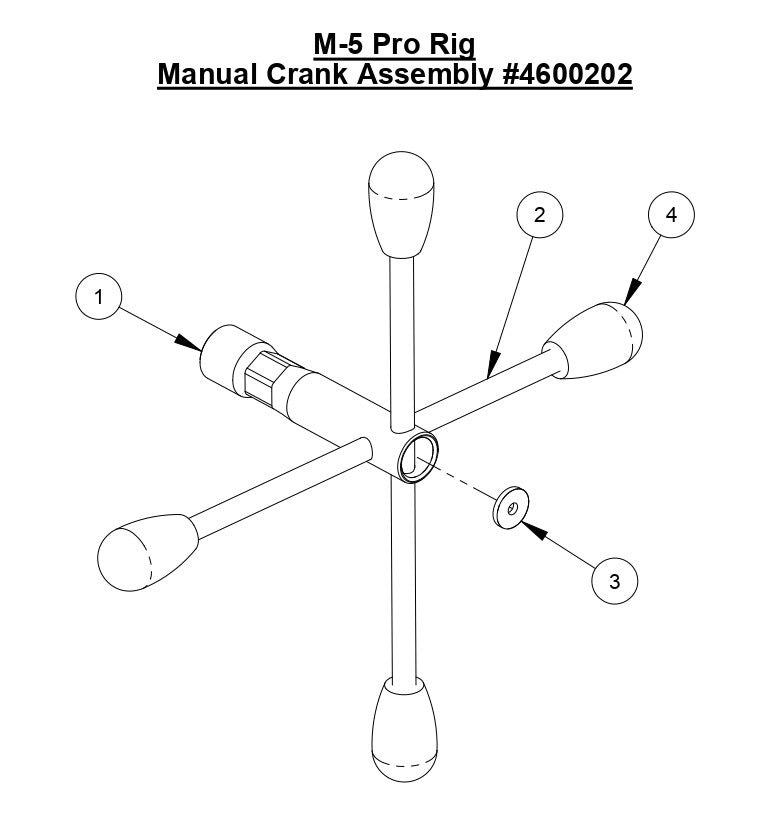

M-5 Pro Rig Manual Crank Assembly Parts

M-5 Pro Rig Manual Crank Assembly Parts

  • M-5 Pro Rig Manual Crank Assembly
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
4600213 Crank Pin for M-5 Pro Core Bore Drilling Machine Core Cut by Diamond Products
$159.39
2
4600214 Driving Rod, Long for M-5 Pro Core Bore Drilling Machine Core Cut by Diamond Products
$46.27
3
4600216 Friction Piece for M-5 Pro Core Bore Drilling Machine Core Cut by Diamond Products
$9.83
4
4600215 Crank Pin Knob, Diam. 12 for M-5 Pro Core Bore Drilling Machine Core Cut by Diamond Products
$33.35
