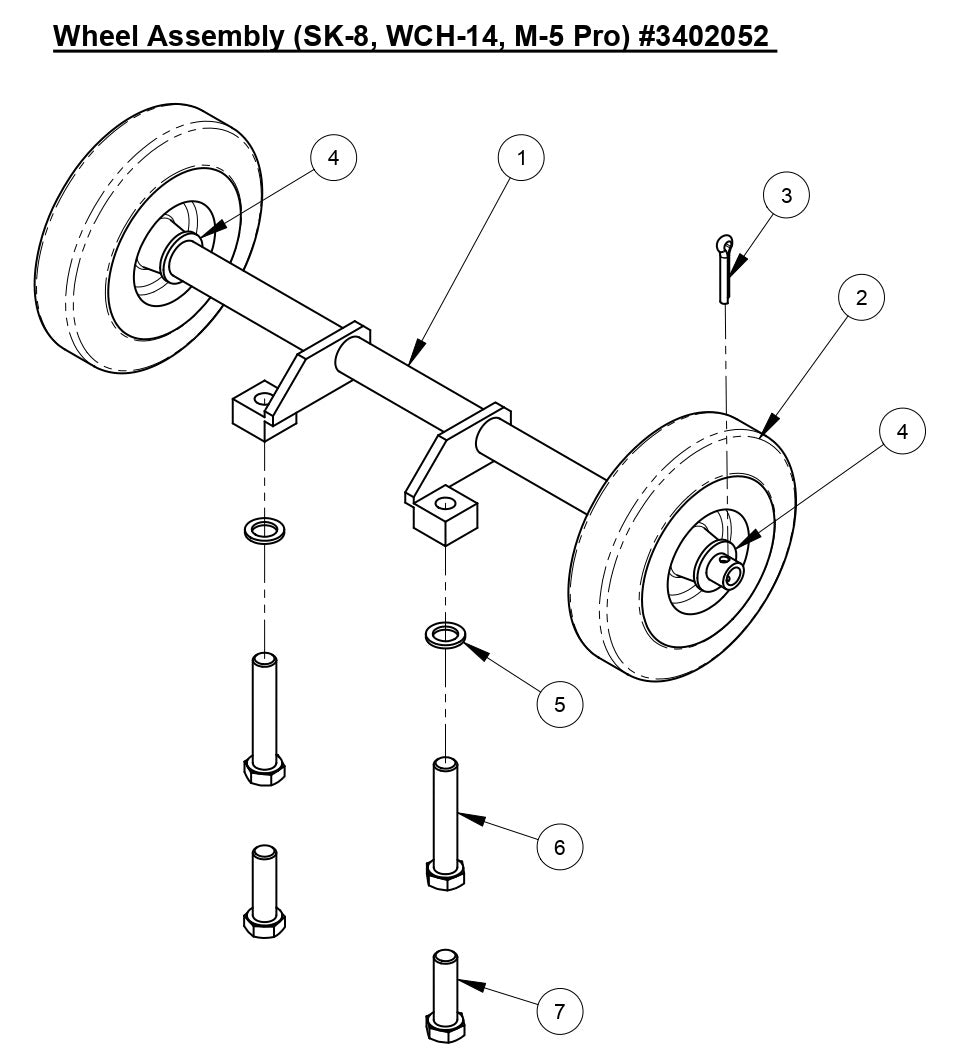

M-5 Pro Wheel Assembly (SK-8, WCH-14, M-5 Pro) Parts

M-5 Pro Wheel Assembly (SK-8, WCH-14, M-5 Pro) Parts

  • M-5 Pro Wheel Assembly
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
4600271 Wheel Weldment for M-5 Pro Core Bore Drilling Machine Core Cut by Diamond Products
Call for Price call for price call for price
2
4600228 Rubber Wheel, 5-1/2" for M-5 Pro Core Bore Drilling Machine Core Cut by Diamond Products
Call for Price call for price call for price
3
2900055 Cotter Pin, 3/16" x 1" for M-5 Pro Core Bore Drilling Machine Core Cut by Diamond Products
$2.99
4
2900326 Flat Washer, M14 for M-5 Pro Core Bore Drilling Machine Core Cut by Diamond Products
$2.99
5
2903247 Washer M12 20MM x 13MM x 2MM for M-5 Pro Core Bore Drilling Machine Core Cut by Diamond Products
$4.99
6
2900359 Cap Screw, Hex Hd., M12-1.75 x 65mm for M-5 Pro Core Bore Drilling Machine Core Cut by Diamond Products
$6.99
7
2900331 Cap Screw, Hex Hd., M12-1.75 x 40mm for M-5 Pro Core Bore Drilling Machine Core Cut by Diamond Products
$4.99
