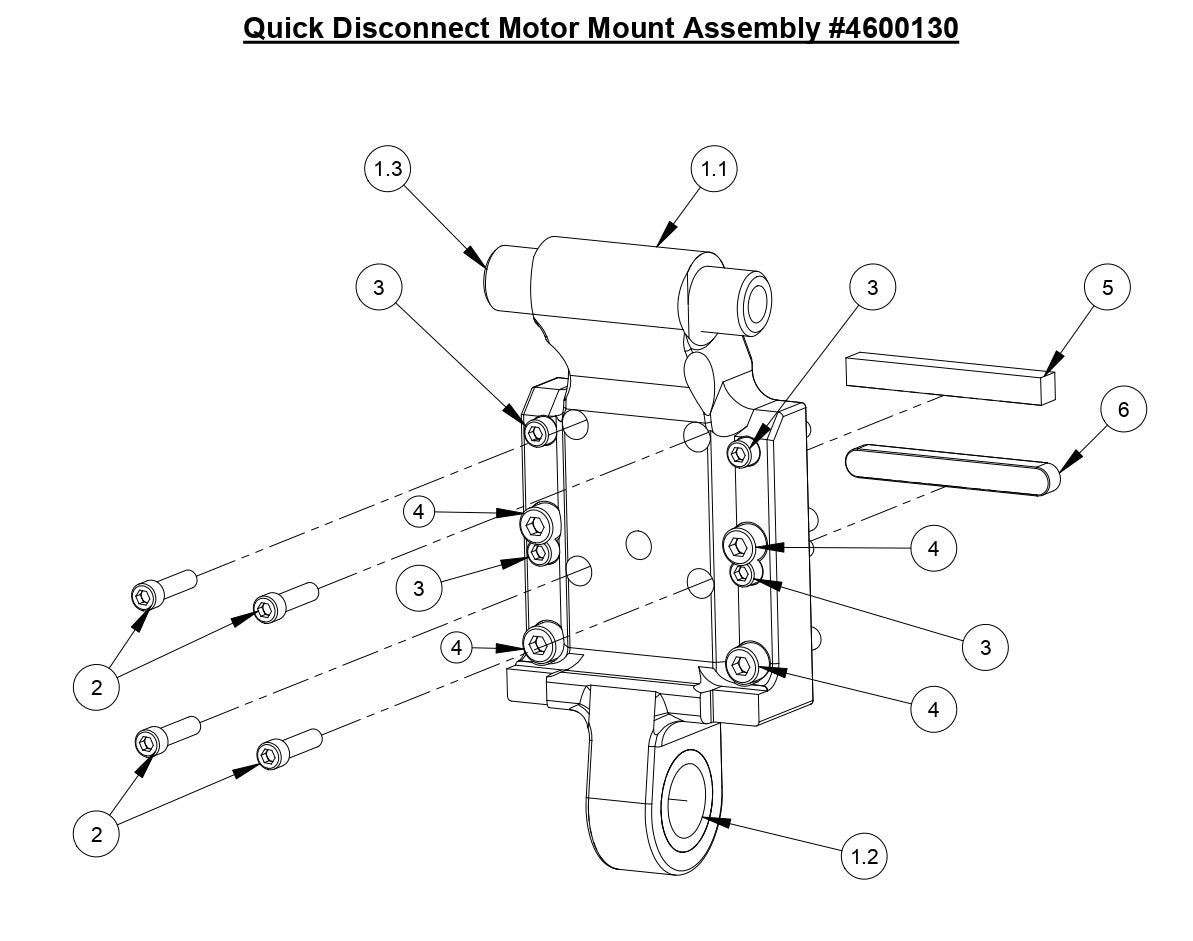

M-5 Quick Disconnect Motor Mount Assembly Parts

M-5 Quick Disconnect Motor Mount Assembly Parts

  • M-5 Quick Disconnect Motor Mount Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
4600157 QD Motor Mount Assembly for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$191.07
1.1
4600103 QD Motor Mount for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$152.46
1.2
2400144 Bronze Bearing, 1-3/8" x 1" for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$23.67
1.3
4600111 Support Tube for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$32.29
2
2900089 Cap Screw, Soc. Hd., 1/4-28 x 1" for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
3
2900399 Cap Srew, Soc Hd., 1/4-20 x 1-1/2" for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
4
2900398 Cap Screw, Soc. Hd., M8-1.25 x 40mm for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$4.99
5
4600131 Key, 3/8" Sq. x 3" for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$6.99
6
2900397 Parallel Key, 10mm x 8mm x 80mm for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$10.06
