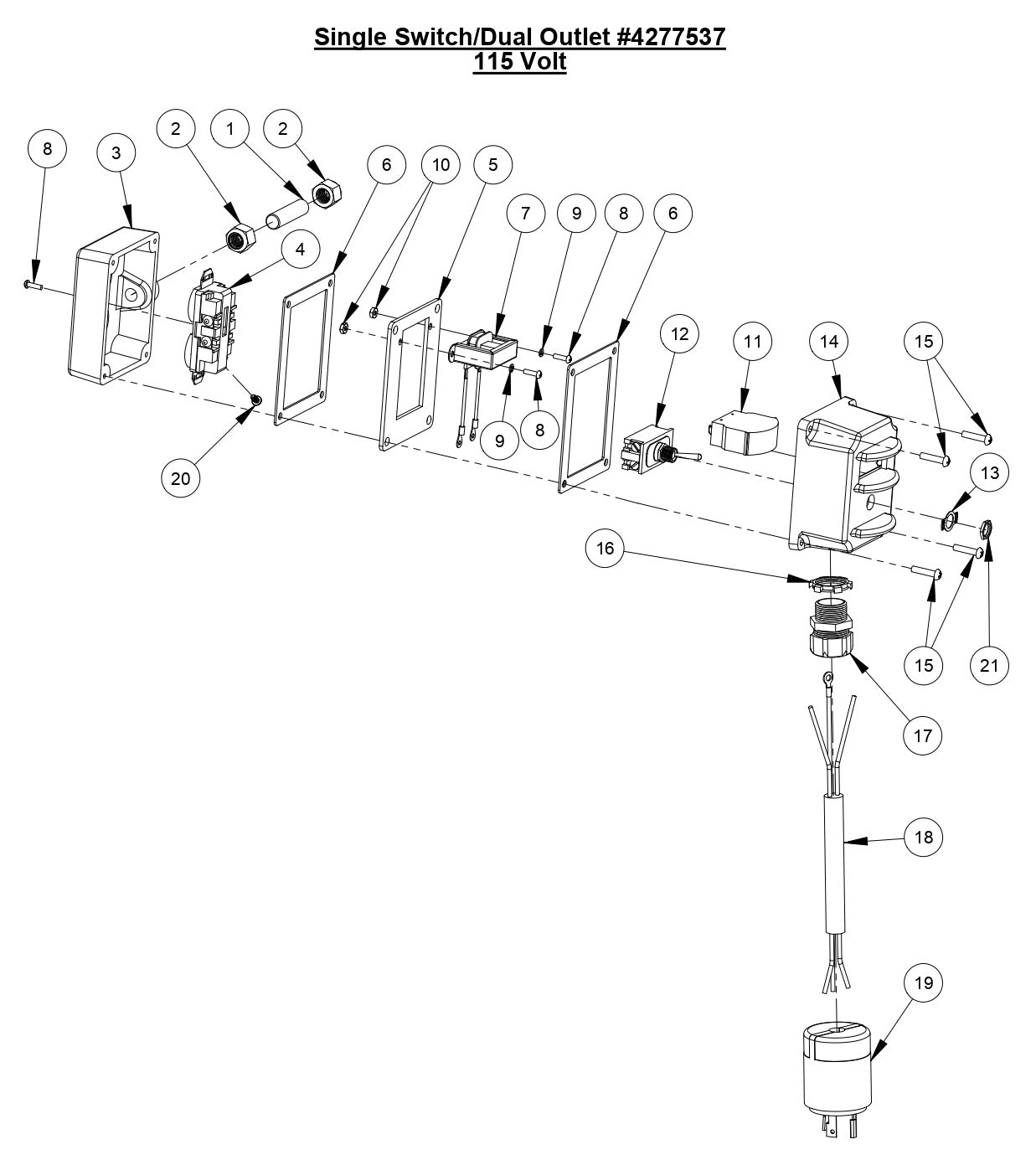

M-5 Single Switch/Dual Outlet 115 Volt Parts

M-5 Single Switch/Dual Outlet 115 Volt Parts

  • M-5 Single Switch/Dual Outlet 115 Volt
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
4699603 Rod, 1/2" - 13 x 2" for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$10.57
2
2900129 Jam Nut, 1/2-13 for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
3
4699600 Switch Box for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$47.57
4
2801845 Duplex Receptacle 20AMP 125Volt for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$22.01
5
2400073 Mounting Plate for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$27.98
6
2400074 Gasket for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$9.37
7
2800085 AC Current Transformer for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$65.32
8
2900090 Machine Screw, Rd. Hd., #6-32 x 1/2" for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
9
2900092 Lock Washer, #6 Split for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
10
2900091 Hex Nut, #6-32 for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
11
2800020 Amp Meter 115V, 0-25 Amp for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$66.10
12
2800017 Toggle Switch, 20A/125V for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$50.64
13
2400075 On-Off Plate for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$6.99
14
4699601 Switch Box Base for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$63.50
15
2900165 Machine Screw, Rd. Hd., #10-24 x 7/8" for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
16
2800050 Lock Nut, 3/4" Sealing for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$22.60
17
2800043 Connector, 3/4" Cord for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$24.75
18
4699602 Line Cord for Single Switch Control Panel for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$43.49
19
2800023 Plug, 125V, 30A, Twist Lock for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$38.74
20
2900206 Tap Screw, Pan Hd., #8-32 x 3/8" for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
21
2900204 Nut, Toggle Switch, 15/32"-32 for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
View full details
