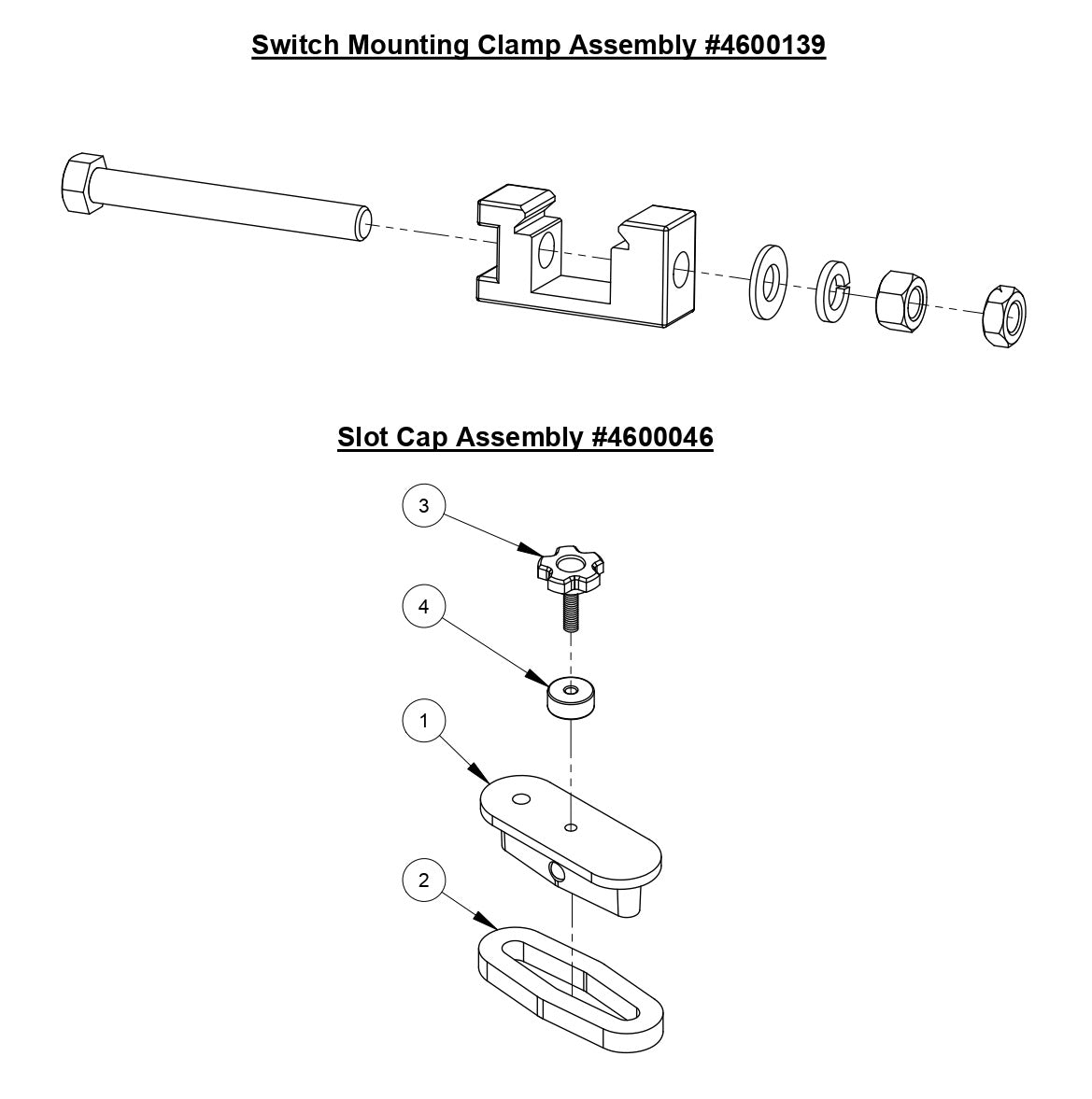

M-5 Slot Cap Assembly Parts

M-5 Slot Cap Assembly Parts

  • M-5 Slot Cap Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
4600004 Slot Cap with Balls for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$60.94
2
2400003 Slot Cap Gasket for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$10.19
3
2400130 Slot Cap Knob for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$14.00
4
2400169 Knob Gasket for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$9.52
View full details
