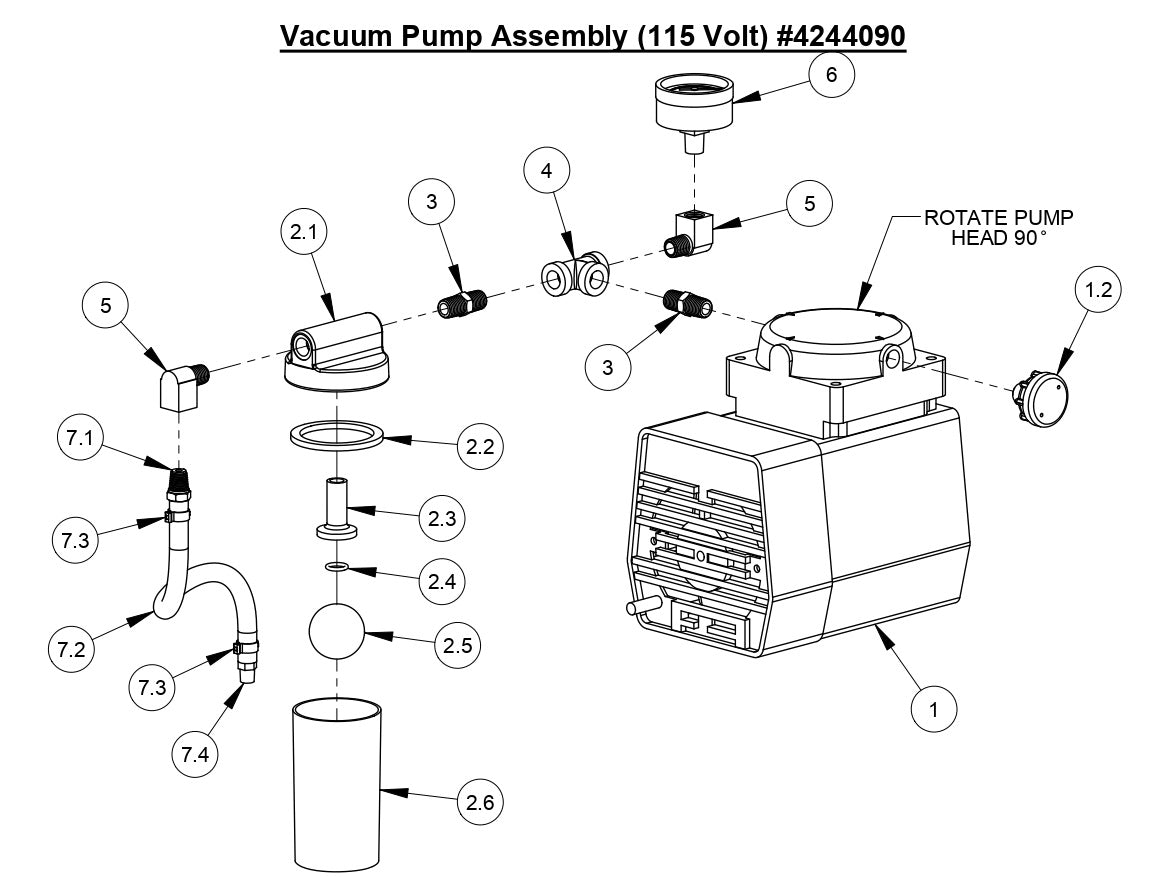

M-5 Vaccum Pump Assembly (115 Volt) Parts

M-5 Vaccum Pump Assembly (115 Volt) Parts

  • M-5 Vaccum Pump Assembly (115 Volt)
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2600016 Vacuum Pump for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$598.95
1.2
2700168 Muffler for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$73.29
2
2700171 Water Jar Assembly for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$190.08
2.1
2700014 Water Jar Lid for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$124.74
2.2
2700017 Water Jar Gasket for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$16.01
2.3
2700015 Funnel Fitting for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$46.92
2.4
2700016 NLA O-Ring for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
Call for Price call for price call for price
2.5
2700172 Float Ball for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$17.58
2.6
2700170 Water Trap Jar for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$42.70
3
3200060 Hex Nipple, 1/4" NPT for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$6.99
4
3200010 Pipe Tee, 1/4" FPT for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$15.07
5
3200012 Street Elbow, 1/4" NPT for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$13.14
6
2700164 Gauge, Vacuum for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$52.44
7
4699490 Hose Assembly for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$40.95
7.1
3200019 Fitting, 1/4" M. Pipe to 1/4" Hose Barb for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$8.08
7.2
4699430 Air Hose, 9-1/4" Long for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$8.12
7.3
3200017 Clamp, Pinch On for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$3.99
7.4
3200018 Fitting, 1/8" M. Pipe to 1/4" Hose Barb for M-5 Core Rig Core Bore Drilling Rig Core Cut by Diamond Products
$10.86
