M-6 Carriage Assembly Parts

M-6 Carriage Assembly Parts

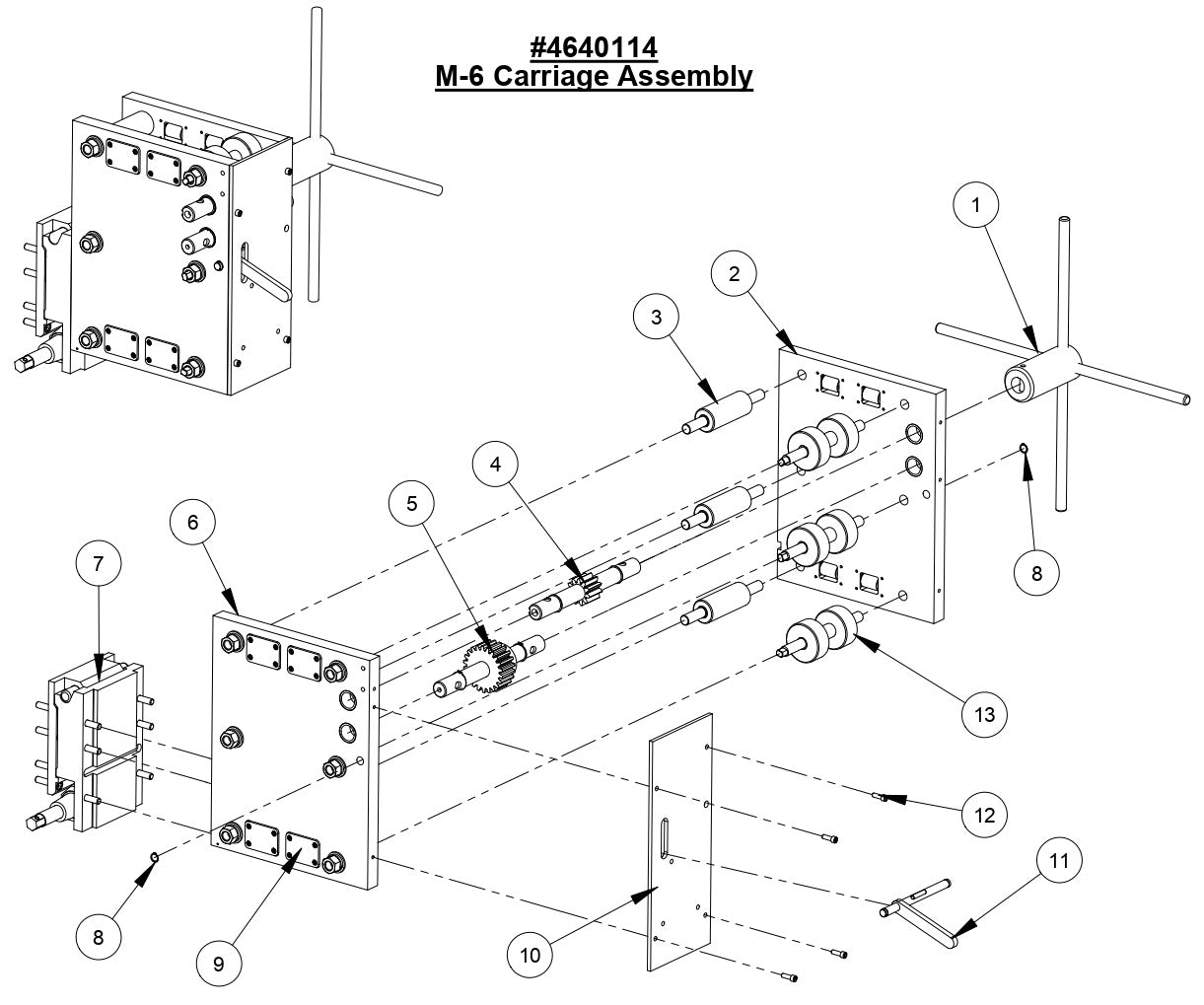

  • M-6 Carriage Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
4640029 Spoke Handle Assembly, M-6, Complete for M-6 Core Bore Drilling Machine Core Cut by Diamond Products
$176.22
2
4640099 M-6 Right Side Carriage Plate Ass'y for M-6 Core Bore Drilling Machine Core Cut by Diamond Products
$517.77
3
4640013 Non-Adjustable Roller Assembly, M-6 for M-6 Core Bore Drilling Machine Core Cut by Diamond Products
$85.01
4
4640015 Pinion Gear Assembly, M-6 for M-6 Core Bore Drilling Machine Core Cut by Diamond Products
$146.52
5
4640017 Spur Gear Assembly, M-6 for M-6 Core Bore Drilling Machine Core Cut by Diamond Products
$449.46
6
4640098 M-6 Left Side Carriage Plate Ass'y for M-6 Core Bore Drilling Machine Core Cut by Diamond Products
$517.77
7
4699997 M6 QD Motor Mount Assembly for M-6 Core Bore Drilling Machine Core Cut by Diamond Products
$792.00
8
2500697 Retaining Ring, 1/2" Ext. 5100-50 for M-6 Core Bore Drilling Machine Core Cut by Diamond Products
$3.99
9
4640033 Side Roller Assembly, M-6 Only for M-6 Core Bore Drilling Machine Core Cut by Diamond Products
$77.38
10
4640024 Cover Plate, M-6, Power Raise & Lower for M-6 Core Bore Drilling Machine Core Cut by Diamond Products
$60.06
11
4640023 Carriage Lock, M-6 for M-6 Core Bore Drilling Machine Core Cut by Diamond Products
$24.75
12
2900247 Cap Screw, Soc. Hd., 1/4-20 x 3/4" for M-6 Core Bore Drilling Machine Core Cut by Diamond Products
$2.99
13
4640009 Adjustable Roller Assembly, M-6 for M-6 Core Bore Drilling Machine Core Cut by Diamond Products
$121.77
