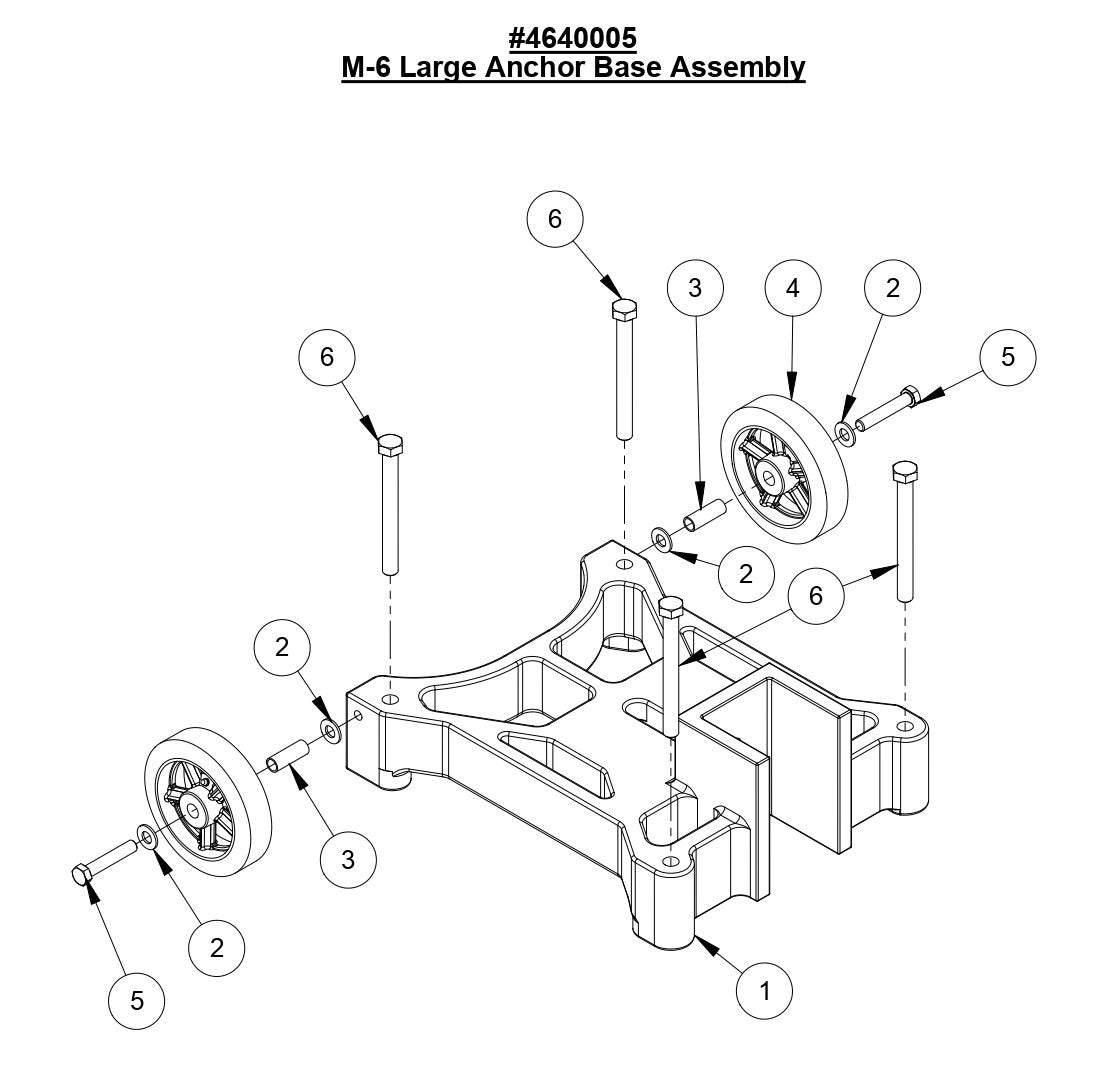

M-6 Large Anchor Base Assembly Parts

M-6 Large Anchor Base Assembly Parts

  • M-6 Large Anchor Base Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
4640006 M-6 Large Anchor Base Assembly for M-6 Core Bore Drilling Machine Core Cut by Diamond Products
$575.19
2
2900058 Flat Washer, 1/2" SAE for M-6 Core Bore Drilling Machine Core Cut by Diamond Products
$3.99
3
4640034 Wheel Bushing for M-6 Core Bore Drilling Machine Core Cut by Diamond Products
$9.60
4
2500003 Wheel 6" x 1-1/2" x 5/8" for M-6 Core Bore Drilling Machine Core Cut by Diamond Products
$117.00
5
2900105 Cap Screw, Hex Hd., 1/2-13 x 2-3/4" for M-6 Core Bore Drilling Machine Core Cut by Diamond Products
$8.82
6
2900104 Tap Bolt, Hex Hd., 5/8-11 x 6" for M-6 Core Bore Drilling Machine Core Cut by Diamond Products
$14.02
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.
