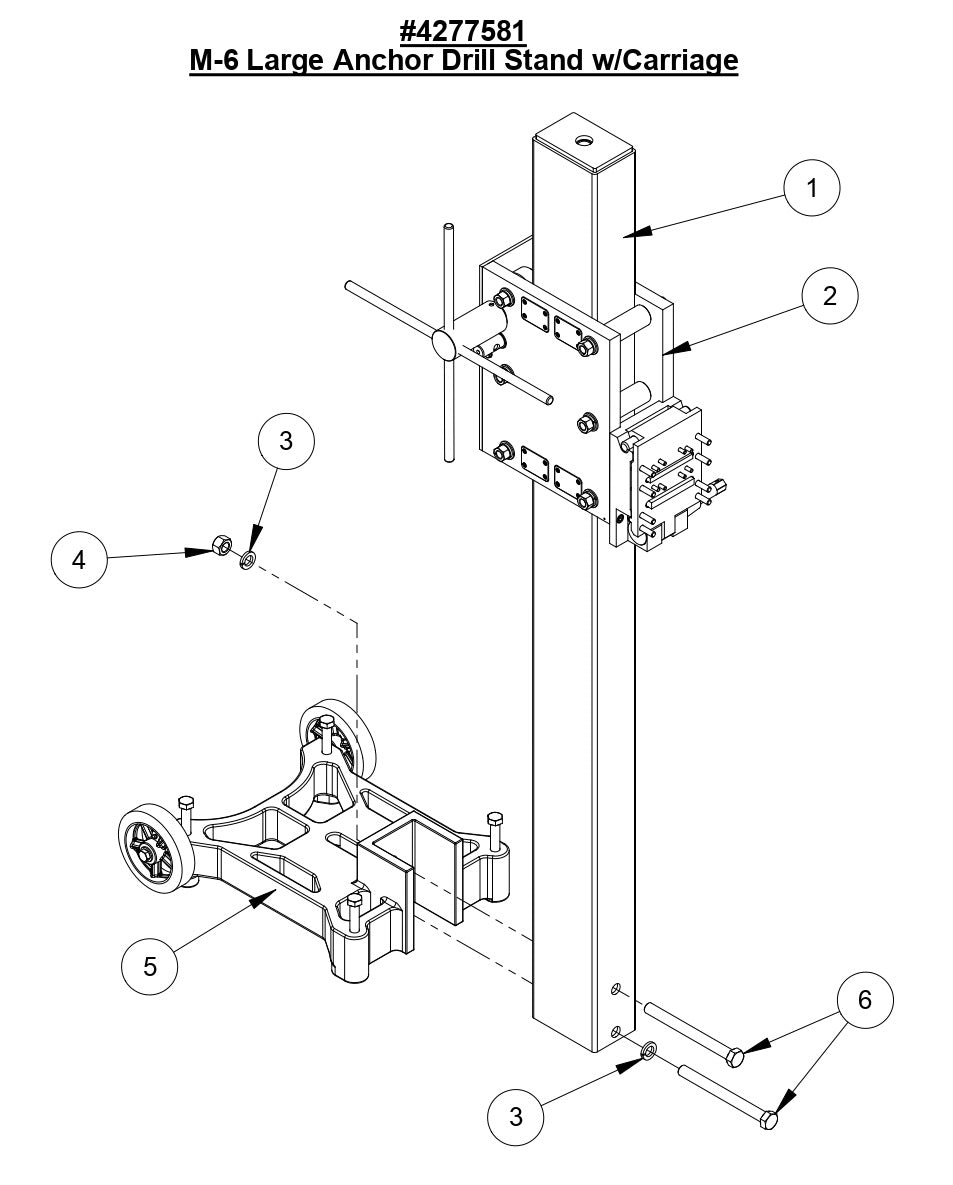

M-6 Large Anchor Drill Stand w/Carriage Parts

M-6 Large Anchor Drill Stand w/Carriage Parts

  • M-6 Large Anchor Drill Stand w/Carriage
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
4640000 M-6 Mast w/Gear Rack, 72" Long for M-6 Core Bore Drilling Machine Core Cut by Diamond Products
$1,878.00
2
4640114 Carriage Assembly, M-6 for M-6 Core Bore Drilling Machine Core Cut by Diamond Products
$3,442.23
3
2900042 Lock Washer, 3/4" Split for M-6 Core Bore Drilling Machine Core Cut by Diamond Products
$3.99
4
2900041 Hex Nut, 3/4-10 for M-6 Core Bore Drilling Machine Core Cut by Diamond Products
$3.99
5
4640005 Large Anchor Base Assembly, M-6 for M-6 Core Bore Drilling Machine Core Cut by Diamond Products
$868.23
6
2900351 Cap Screw, Hex Hd., 3/4-10 x 8" for M-6 Core Bore Drilling Machine Core Cut by Diamond Products
$22.60
View full details
