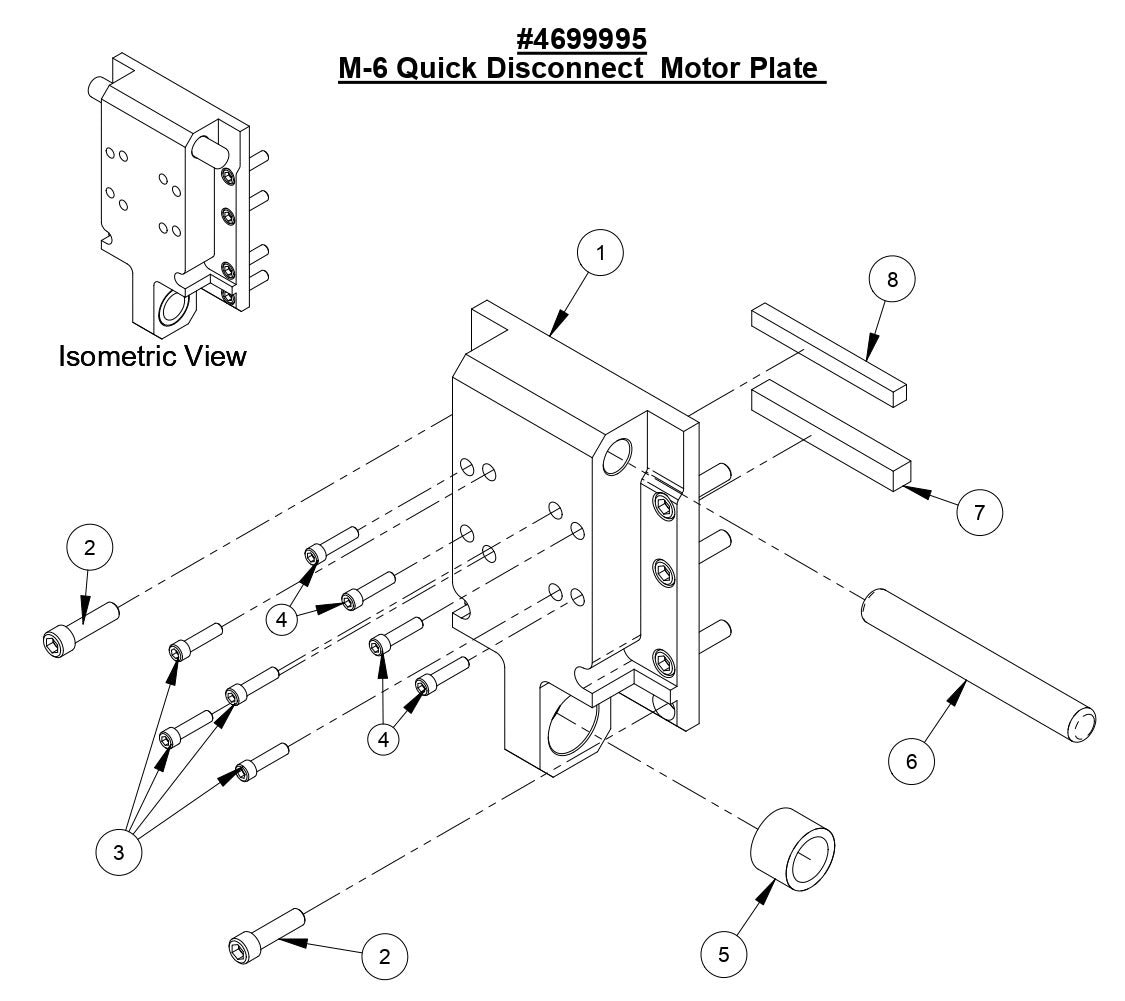

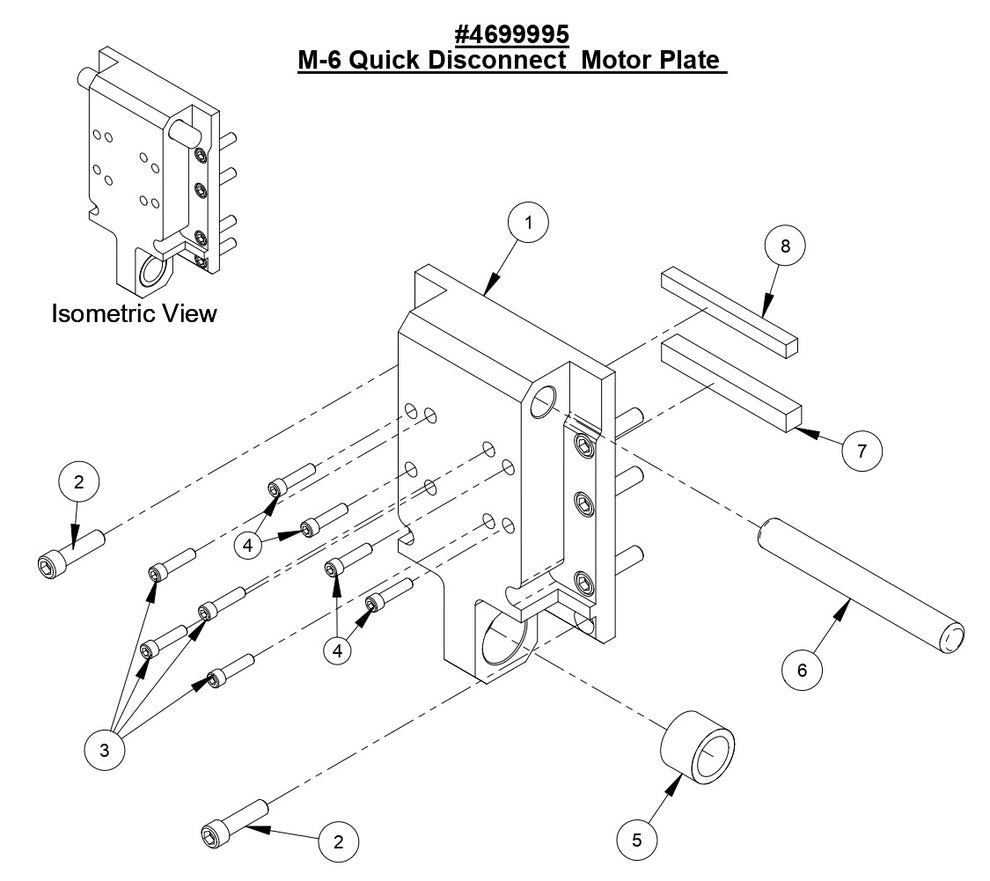

M-6 Quick Disconnect Motor Plate Parts

M-6 Quick Disconnect Motor Plate Parts

  • M-6 Quick Disconnect Motor Plate
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
4699993 Quick Disconnect Motor Mount for M-6 Core Bore Drilling Machine Core Cut by Diamond Products
Call for Price call for price call for price
2
2900183 Capscrew, Soc Hd., 3/8"-16 X 1-3/8" for M-6 Core Bore Drilling Machine Core Cut by Diamond Products
$7.90
3
2900088 Cap Screw, Soc. Hd., 1/4-20 x 1" for M-6 Core Bore Drilling Machine Core Cut by Diamond Products
$2.99
4
2900089 Cap Screw, Soc. Hd., 1/4-28 x 1" for M-6 Core Bore Drilling Machine Core Cut by Diamond Products
$2.99
5
2400144 Bronze Bearing, 1-3/8" x 1" for M-6 Core Bore Drilling Machine Core Cut by Diamond Products
$23.67
6
2900353 Dowel Pin, 3/4" Dia. x 6" for M-6 Core Bore Drilling Machine Core Cut by Diamond Products
$61.07
7
4641010 Key, 1/2" Sq. x 4" Long for M-6 Core Bore Drilling Machine Core Cut by Diamond Products
$8.12
8
4645006 Key, 3/8" Sq. x 4" for M-6 Core Bore Drilling Machine Core Cut by Diamond Products
$8.30
View full details
