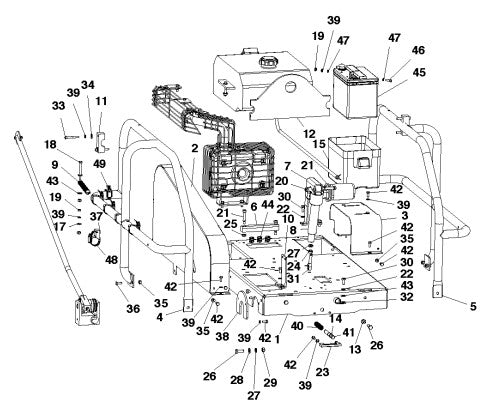

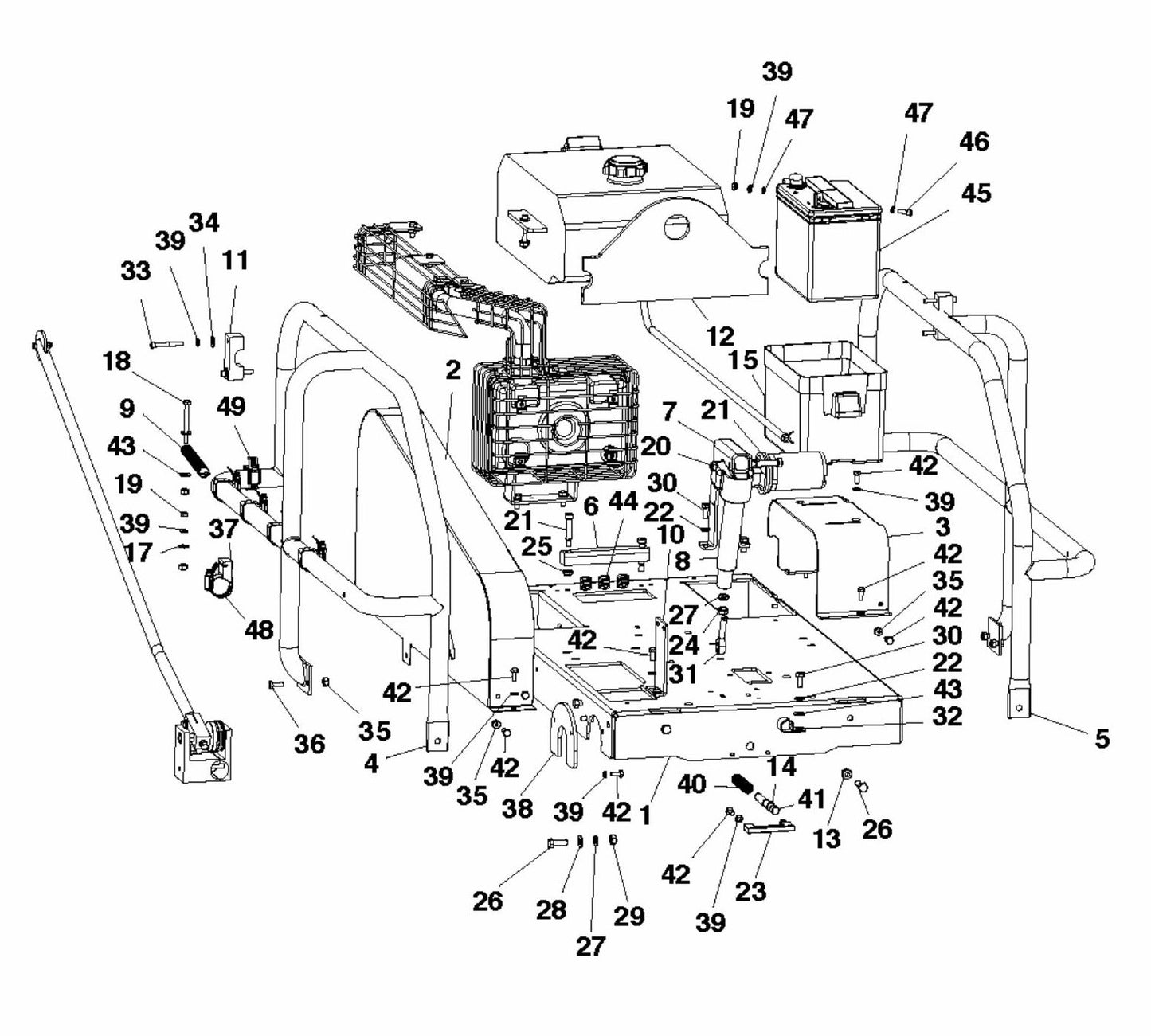

MainFrame Assembly parts-4000, 2015-10 By Husqvarna

MainFrame Assembly parts-4000, 2015-10 By Husqvarna

  • MainFrame Assembly parts-4000, 2015-10 By Husqvarna
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
505830301 MAINFRAME ASSEMBLY, X4000 SOFF CUT 4000 SAW BY HUSQVARNA
$907.54
3
505817801 WHEEL COVER FOR SOFF CUT 4000 SAW BY HUSQVARNA
$97.63
4
505830401 ROLLCAGE, X4000 RIGHT FOR EARLY ENTRY SAW BY HUSQVARNA
$400.50
5
505830501 ROLLCAGE, X4000 LEFT FOR EARLY ENTRY SAW BY HUSQVARNA
$400.50
6
505831901 SPRING BLOCK FOR EARLY ENTRY SAW BY HUSQVARNA
$101.18
7
505831102 BRACKET, ACTUATOR-UPPER H GREY FOR EARLY ENTRY SAW BY HUSQVARNA
$76.00
8
505791102 ACTUATOR, 4" STROKE, WIRED FOR SOFF CUT 4000 SAW BY HUSQVARNA
$1,305.51
9
505737301 SPRING, BLADE IDLER FOR EARLY ENTRY SAW BY HUSQVARNA
$11.20
10
505830201 SPRING MOUNT BRACKET FOR EARLY ENTRY SAW BY HUSQVARNA
$30.66
11
505829801 MOUNTING BLOCK, LIFT BAIL FOR EARLY ENTRY SAW BY HUSQVARNA
$42.39
12
574286301 LIFTING PLATE, X4000 FOR EARLY ENTRY SAW BY HUSQVARNA
$146.60
13
539976979 Nut for Power Trowel by Husqvarna
$2.95
14
505647801 SNAP RING, EXTERNAL .500" FOR EARLY ENTRY SAW BY HUSQVARNA
$4.99
15
505836001 BATTERY COVER FOR SOFF CUT 4000 SAW BY HUSQVARNA
$59.79
17
505632001 Washer for Husqvarna Soff Cut 2000 Early Entry Saw
$5.90
18
505728001 HHB,1/4-20 X 2 3/4 ALL THRD SS FOR EARLY ENTRY SAW BY HUSQVARNA
$2.90
19
505631901 JAM NUT 1/4-20 STAINLESS STEEL for Husqvarna Soff Cut 2500 Walk Behind Saw
$7.01
20
539990717 NUT for Husqvarna Soff-Cut 150 Saw
$4.99
21
505833501 SHSB 3/8 X 1 1/2 FOR EARLY ENTRY SAW BY HUSQVARNA
$7.26
22
505633001 LOCKWASHER .3125 SPLIT SS FOR FASTENERS BY HUSQVARNA
$4.99
23
505714201 GUARD ARBOR LOCK SHAFT FOR EARLY ENTRY SAW BY HUSQVARNA
$57.69
24
542020171 NUT, HEX JAM THIN .375-24 Z/P FOR FASTENERS BY HUSQVARNA
$7.26
25
505631701 NUT, NYLOC 5/16-18 .265"HT. FOR EARLY ENTRY SAW BY HUSQVARNA
$5.80
26
505833101 HHB, 3/8-16 X 1 S.S. FOR EARLY ENTRY SAW BY HUSQVARNA
$2.90
27
505731001 SPLIT WASHER 3/8 S.S. FOR EARLY ENTRY SAW BY HUSQVARNA
$5.80
28
539990517 Flat Washer .375 for Early Entry Saws by Husqvarna replaces 505724601
$5.99
29
505838601 JAM NUT 3/8-16 S.S. FOR EARLY ENTRY SAW BY HUSQVARNA
$4.99
30
539976934 Screw for Husqvarna Soff Cut 2000 Early Entry Saw
$4.99
31
542166690 Ball for Husqvarna FS3500 G Walk Behind Concrete Saw
$35.51
33
505728901 SHC 1/4-20-2 S.S. for Husqvarna Soff Cut 2500 Walk Behind Saw
$15.90
34
505725501 Flat Washer for Husqvarna Soff Cut 2500 Walk Behind Saw
$137.94
35
505630501 Nyloc Nut for Husqvarna Soff Cut 150 Saw
$137.94
36
505627501 HEX BOLT 1/4-20-3/4 S.S. for Husqvarna Soff Cut 2500 Walk Behind Saw
$7.26
37
505819201 CABLE MOUNT BLOCK FOR EARLY ENTRY SAW BY HUSQVARNA
$67.89
38
505815701 BELT ACCESS COVER FOR EARLY ENTRY SAW BY HUSQVARNA
$73.35
39
505632801 LK WASH 1/4 SPLIT SS for Husqvarna Soff Cut 2500 Walk Behind Saw
$5.90
40
505834201 Spring for Husqvarna Soff Cut 2000 Early Entry Saw
$18.00
41
505816901 ARBOR LOCK SHAFT FOR EARLY ENTRY SAW BY HUSQVARNA
$62.32
42
505627401 HEX BOLT 1/4-20-5/8 S.S. for Husqvarna Soff Cut 2500 Walk Behind Saw
$7.26
43
539990188 WASHER for Husqvarna Soff Cut 2500 Walk Behind Saw
$4.99
44
505824001 SPRING A-1052 FOR EARLY ENTRY SAW BY HUSQVARNA
$2.90
45
505786201 Battery for Power Trowel by Husqvarna
$321.74
46
505627801 SHC 1/4-20-3/4 S.S. for Husqvarna Soff Cut 2500 Walk Behind Saw
$4.84
47
505731801 LOCKWASHER 1/4 EXT TOOTH FOR EARLY ENTRY SAW BY HUSQVARNA
$4.84
48
505822501 HOSE CLAMP, WORM DRIVE SAE212 FOR EARLY ENTRY SAW BY HUSQVARNA
$12.78
49
505834301 HOSE CLAMP, WORM DRIVE SAE16 FOR EARLY ENTRY SAW BY HUSQVARNA
$7.03
2
Call for Price call for price call for price
32
Call for Price call for price call for price
