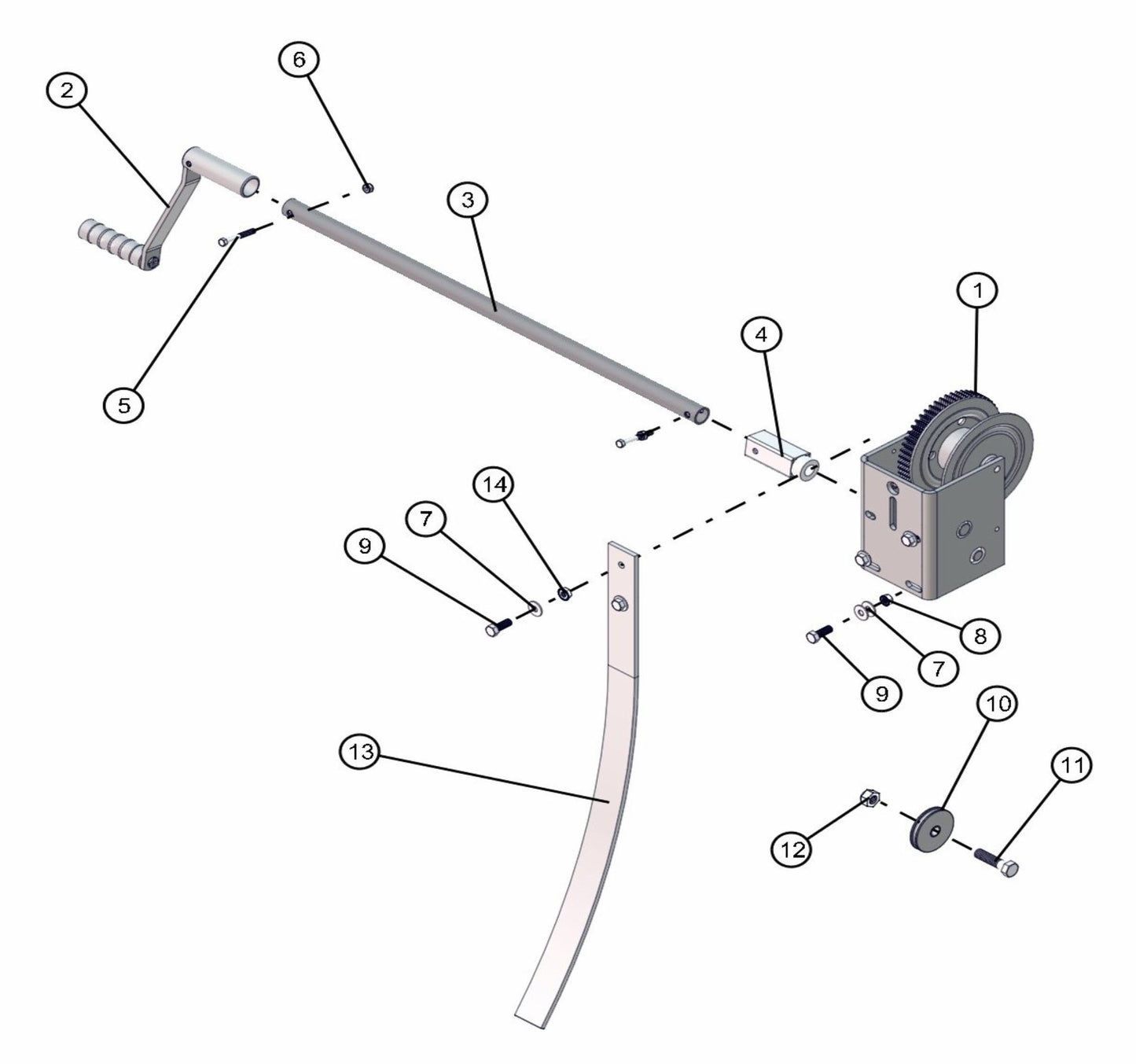

Manual Winch Laydown Tower Assembly Parts for FCS Maxi-Lite 15-20KW (0001LV10 to 9999MLV12) by Allmand

Manual Winch Laydown Tower Assembly Parts for FCS Maxi-Lite 15-20KW (0001LV10 to 9999MLV12) by Allmand

  • Manual Winch Laydown Tower Assembly Parts for FCS Maxi-Lite 15-20KW (0001LV10 to 9999MLV12) by Allmand
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
352482 Winch, Plated 2500 Lbs for Maxi-Lite Laydown 15-20Kw Light Towers by Allmand
$295.97
2
650470 Winch Handle for Maxi-Lite Laydown 15-20Kw Light Towers by Allmand
$48.00
5
046035 1/4-20 X 2 Hex Head Cs Gr5 Pl for Night-Lite Nl5000 (06-000001 To 06-999999) Light Towers by Allmand
$4.49
6
044023 1/4-20 Nylock Nut for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$2.99
7
047010 5/16 Flat Washer for Maxi-Lite 15330 & 20625 Light Towers by Allmand
$2.99
8
044031 5/16-18 Keps Nut for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$2.99
9
046110 3/8-16 X 1 Hex Head Cs Gr5 Pl for Maxi-Lite Light Towers by Allmand
$2.99
10
320112 2 1/2" Pulley With Bushing for Maxi-Lite Laydown 15-20Kw Light Towers by Allmand
$58.83
11
046200 1/2-13 X 2 1/4 Hex Head Cs Gr5 Pl for Maxi-Lite Ii Ld-Series (0001Ml212 To 9999Ml216) Light Towers by Allmand
$2.99
12
044048 1/2-13 Nylock Hex Nut Pl for Maxi-Lite Light Towers by Allmand
$2.99
13
630555P Kickout Spring Laydown for Maxi-Lite Ii Ld-Series (0001Ml212 To 9999Ml216) Light Towers by Allmand
$141.60
14
044036 3/8-16 Keps Hex Nut for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$2.99
3
Call for Price call for price call for price
4
Call for Price call for price call for price
