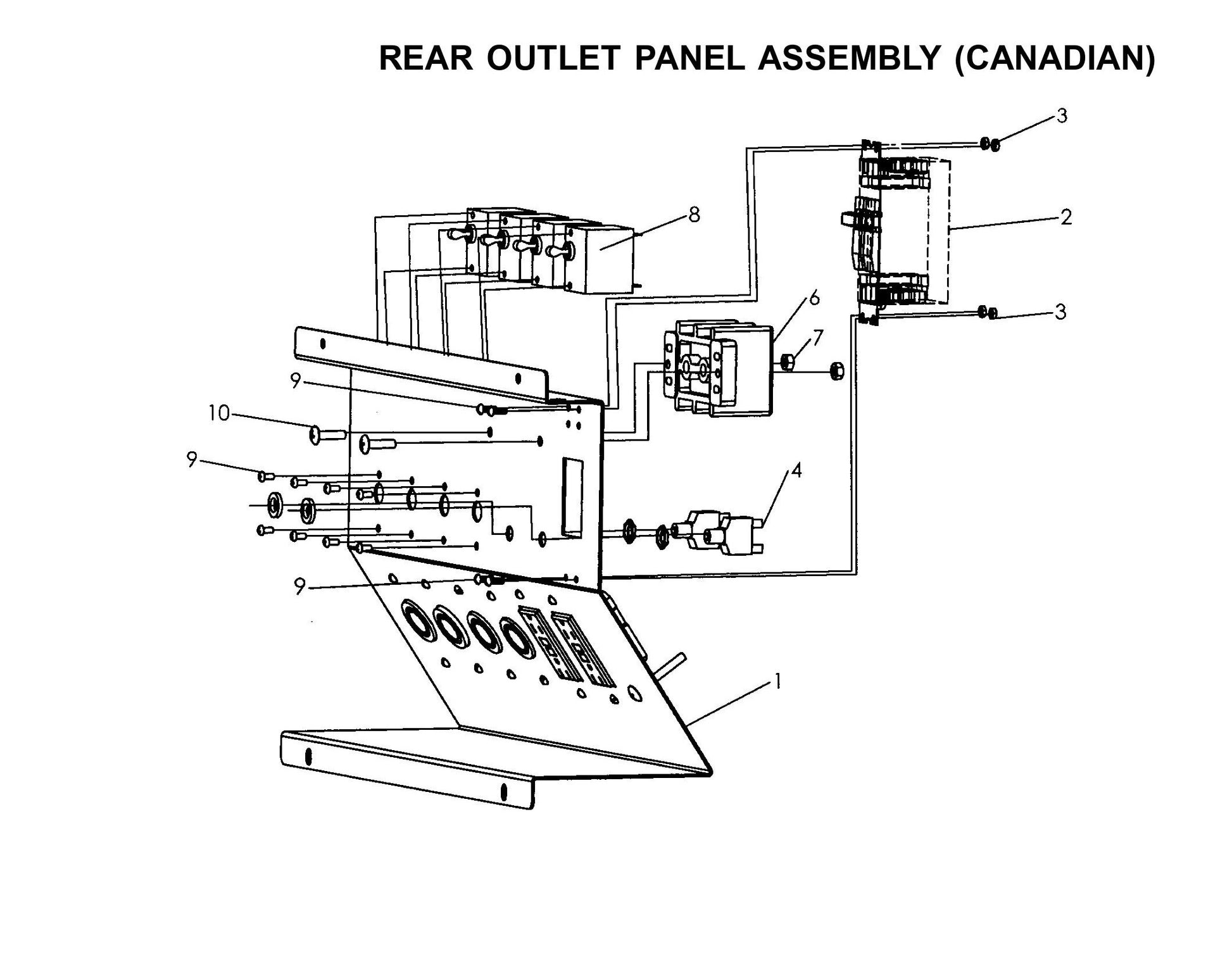

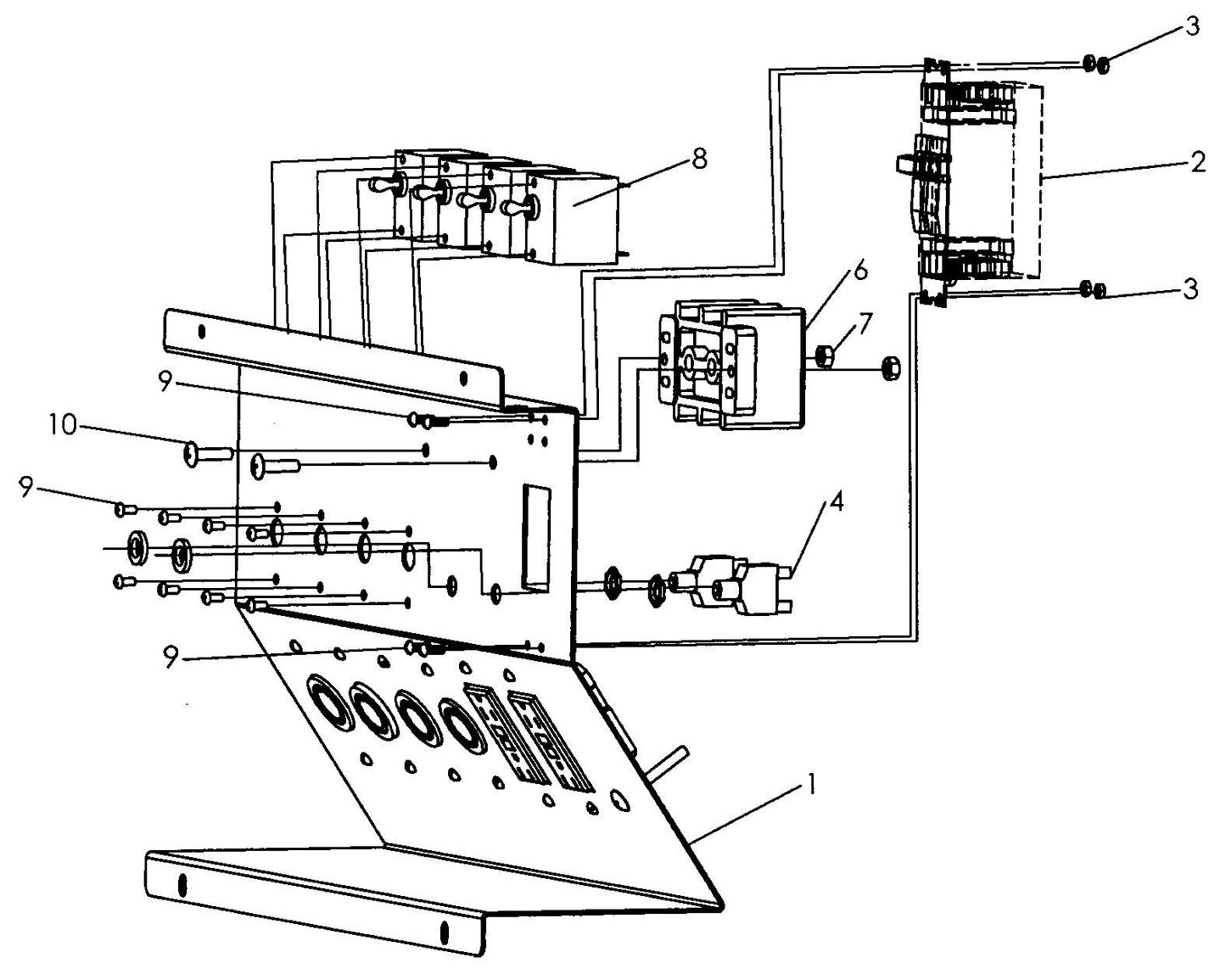

Maxi-Lite 15330 and 20330-Rear Outlet Panel (Canadian) Assembly-1 Parts By Allmand

Maxi-Lite 15330 and 20330-Rear Outlet Panel (Canadian) Assembly-1 Parts By Allmand

  • Maxi-Lite 15330 and 20330-Rear Outlet Panel (Canadian) Assembly-1 Parts By Allmand
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
680442 Outlet Panel With 4-30 Amp Receptacles for Maxi-Lite 15330 & 20930 Light Towers by Allmand
$244.23
2
353301 90 Amp 2 Pole Breaker (20 Kw) for Maxi-Lite 15330 & 20931 Light Towers by Allmand
$416.69
2
353280 70 Amp 2 Pole Breaker (15 Kw) for Maxi-Lite 15330 & 20914 Light Towers by Allmand
$386.25
3
044003 #8-32 Nc Keps Nut for Maxi-Lite 15330 & 20915 Light Towers by Allmand
$2.99
4
650105 15 Amp Circuit Breaker for Maxi-Lite 15330 & 20916 Light Towers by Allmand
$38.49
6
350360 Power Distribution Block for Maxi-Lite 15330 & 20918 Light Towers by Allmand
$157.42
7
044021 1/4 - 20 Nc Keps Nut for Maxi-Lite 15330 & 20753 Light Towers by Allmand
$2.99
8
330456 30 Amp Double Pole Switch for Maxi-Lite 15330 & 20920 Light Towers by Allmand
$182.47
9
041013 #8-32 Nc X 1/2 Machine Screw for Maxi-Lite 15330 & 20938 Light Towers by Allmand
$2.99
10
041080 1/4 - 20 Nc X 1 Truss Head Screw for Maxi-Lite 15330 & 20922 Light Towers by Allmand
$2.99
