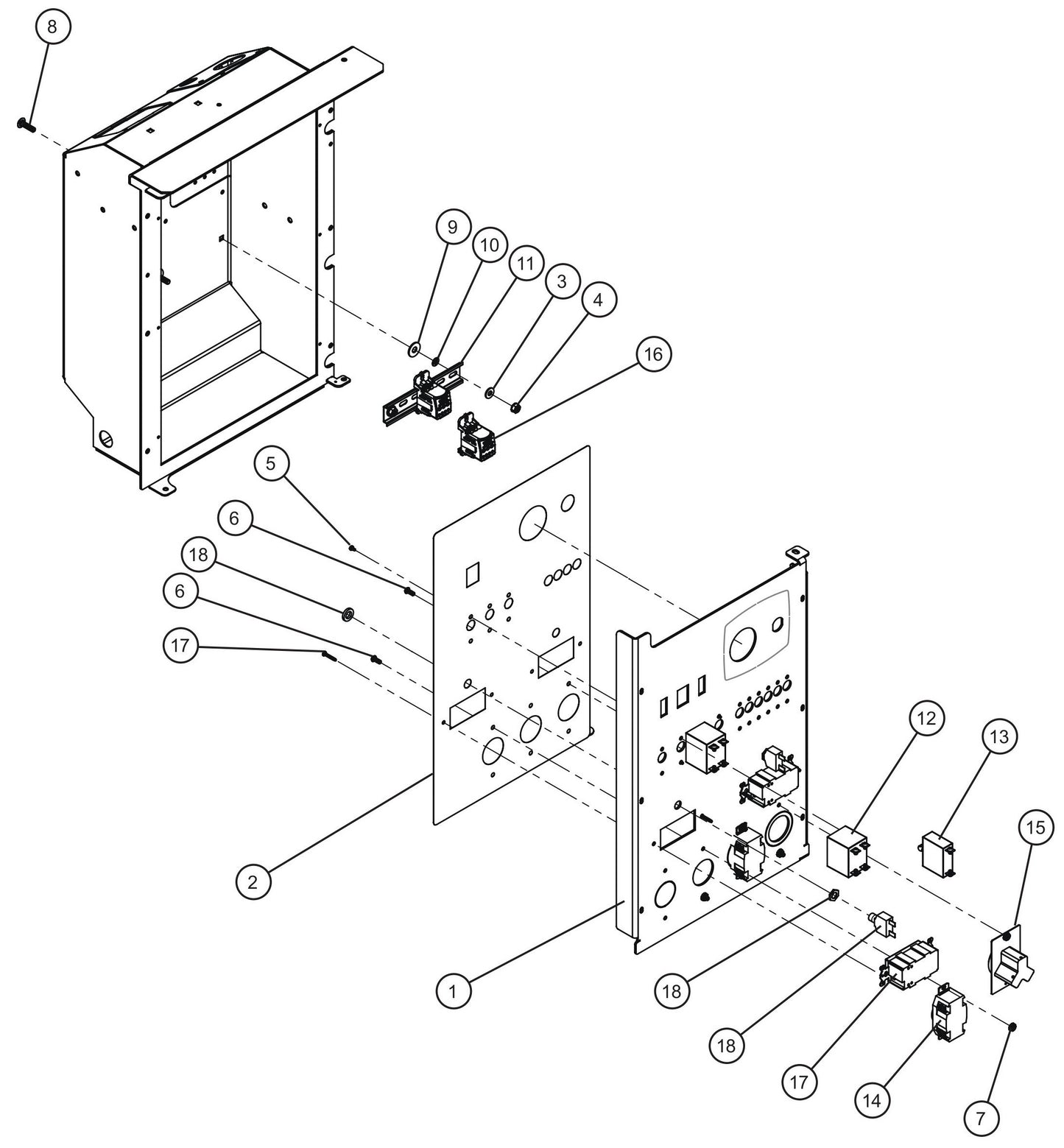

Maxi-Lite (SN 11-001672 to 11-999999) 8kW 1PH 2-30A Twistlock 1-30A RV Outlet Package-I Assembly Parts by Allmand

Maxi-Lite (SN 11-001672 to 11-999999) 8kW 1PH 2-30A Twistlock 1-30A RV Outlet Package-I Assembly Parts by Allmand

  • Maxi-Lite (SN 11-001672 to 11-999999) 8kW 1PH 2-30A Twistlock 1-30A RV Outlet Package-I Assembly Parts by Allmand
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
111223P Maxi-Lite Component Box Lsc/Key Outlet Panel for Maxi-Lite Light Towers by Allmand
Call for Price call for price call for price
2
116384 Maxi-Lite Outlet Panel Decal for Maxi-Lite Light Towers by Allmand
Call for Price call for price call for price
3
047005 1/4 Flat Washer for Maxi-Lite Light Towers by Allmand
$2.99
4
044021 1/4-20 Keps Hex Hut for Maxi-Lite Light Towers by Allmand
$2.99
5
041018 #6-32 X 1/4 Ph-Round Head Machine Screw for Maxi-Lite Light Towers by Allmand
$2.99
6
041021 #10-24 X 1/2 Ph-Round Head Machine Screw for Maxi-Lite Light Towers by Allmand
$2.99
7
044016 #10-24 Keps Hex Nut for Maxi-Lite Light Towers by Allmand
$2.99
8
100342 1/4-20 X 1 Carriage Bolt for Maxi-Lite Light Towers by Allmand
$2.99
9
047010 5/16 Flat Washer for Maxi-Lite Light Towers by Allmand
$2.99
10
101701 1/4 Push Nut for Maxi-Lite Light Towers by Allmand
$2.99
11
114488 Din Rail 6 Inch for Maxi-Lite Light Towers by Allmand
Call for Price call for price call for price
12
330456 30A Dpst Circuit Breaker for Maxi-Lite Light Towers by Allmand
$182.47
13
330472 15A Spst Switch for Maxi-Lite Light Towers by Allmand
$91.99
14
653102 30A 125-250V Twistlock Receptacle for Maxi-Lite Light Towers by Allmand
$12.04
15
680815 30A 125V Rv Outlet for Maxi-Lite Light Towers by Allmand
$85.31
16
104779 Eriflex Distribution Block for Maxi-Lite Light Towers by Allmand
$67.73
17
330499 20A Gfci Receptacle for Maxi-Lite Light Towers by Allmand
$142.88
18
650138 20A Push Button Circuit Breaker for Maxi-Lite Light Towers by Allmand
$71.00
NS
114027 Maxi-Lite 8Kw 1 Phase Outlet Panel Schematic for Maxi-Lite Light Towers by Allmand
Call for Price call for price call for price
