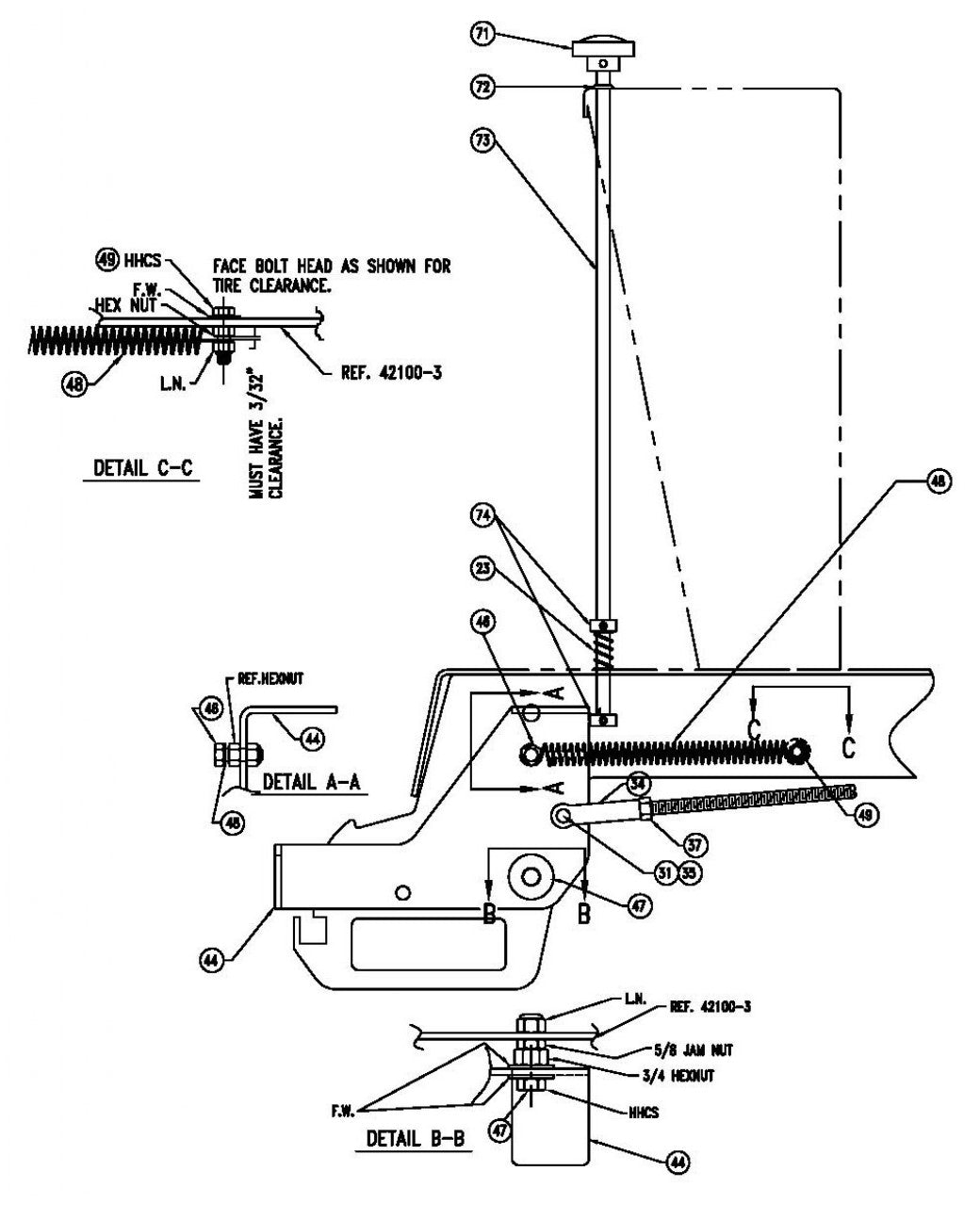

MB-16 Brake System Diagram 1 Parts By Miller Curber

MB-16 Brake System Diagram 1 Parts By Miller Curber

  • MB-16 Brake System Diagram 1 Parts By Miller Curber
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
23
SN0150 Compression Spring fits MB16 Miller Curber Concrete by Miller Curber SN0150
$18.41
31
42126-24 #10-32 Unf Plated Hex Nut fits MB16 Miller Curber Concrete by Miller Curber 4212624
$7.20
37
42126-24 #10-32 Unf Plated Hex Nut fits MB16 Miller Curber Concrete by Miller Curber 4212624
$7.20
46
42126-24 #10-32 Unf Plated Hex Nut fits MB16 Miller Curber Concrete by Miller Curber 4212624
$7.20
47
42126-24 #10-32 Unf Plated Hex Nut fits MB16 Miller Curber Concrete by Miller Curber 4212624
$7.20
49
42126-24 #10-32 Unf Plated Hex Nut fits MB16 Miller Curber Concrete by Miller Curber 4212624
$7.20
34
MS3900 Adjustable Yoke End fits MB16 Miller Curber Concrete by Miller Curber MS3900
$36.07
44
42101-44 Brake Pedal fits MB16 Miller Curber Concrete by Miller Curber 4210144
$227.27
48
42101-48 Spring, Brake Pedal Return fits MB16 Miller Curber Concrete by Miller Curber 4210148
$34.41
71
42101-71 Palm Grip fits MB16 Miller Curber Concrete by Miller Curber 4210171
Call for Price call for price call for price
72
42101-72 Bushing fits MB16 Miller Curber Concrete by Miller Curber 4210172
$4.90
73
42101-73 Parking Brake Catch Rod fits MB16 Miller Curber Concrete by Miller Curber 4210173
$49.22
74
42101-74 Set Collar fits MB16 Miller Curber Concrete by Miller Curber 4210174
$16.34
