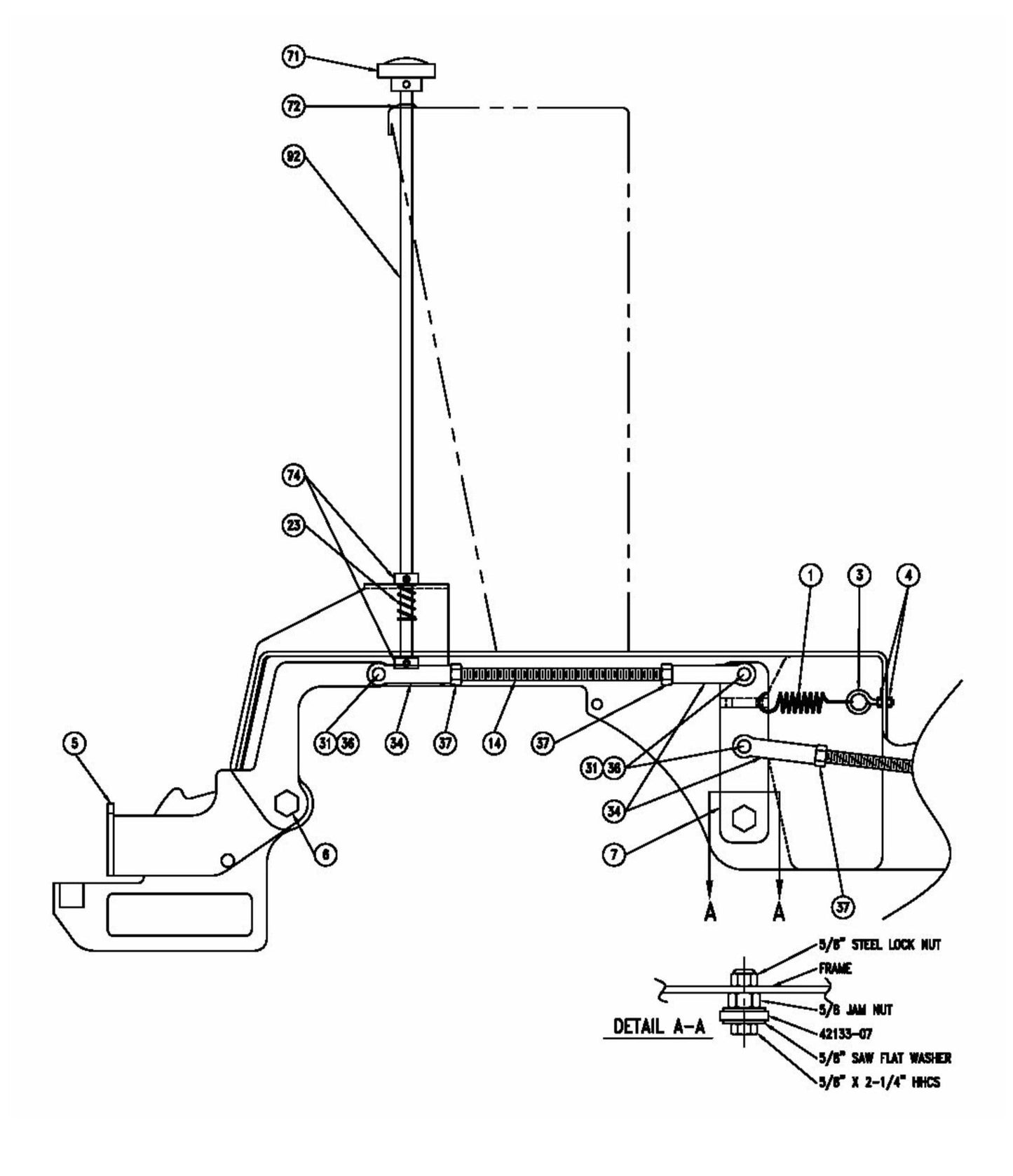

MB-16 Brake System Diagram 3 Parts By Miller Curber

MB-16 Brake System Diagram 3 Parts By Miller Curber

  • MB-16 Brake System Diagram 3 Parts By Miller Curber
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
42101-02 Brake Band fits MB16 Miller Curber Concrete by Miller Curber 4210102
$362.55
2
42101-15 “J” Bolt fits MB16 Miller Curber Concrete by Miller Curber 4210115
Call for Price call for price call for price
3
42101-16 Locknut fits MB16 Miller Curber Concrete by Miller Curber 4210116
$2.99
4
HW0001 1/8” X ¾” Cotter Pin 42101-31 fits MB16 Miller Curber Concrete by Miller Curber HW0001
$71.20
5
42101-18 Brake Cam (Replace In Matched Pairs Only) fits MB16 Miller Curber Concrete by Miller Curber 4210118
$46.14
6
42101-19 Case Hardened Clevis Pin No Substitutes fits MB16 Miller Curber Concrete by Miller Curber 4210119
$49.22
7
42101-20 Spring Pin No Substitutes. - Do Not Use Cotter Pin fits MB16 Miller Curber Concrete by Miller Curber 4210120
$29.46
8
42101-22 Clevis Pin fits MB16 Miller Curber Concrete by Miller Curber 4210122
$12.27
9
SN0150 Compression Spring fits MB16 Miller Curber Concrete by Miller Curber SN0150
$18.41
10
42101-28 Brake Cam Link Arm fits MB16 Miller Curber Concrete by Miller Curber 4210128
$66.81
11
42101-30 Clevis Pin fits MB16 Miller Curber Concrete by Miller Curber 4210130
$14.01
12
42101-32 Spring Pin No Substitutes. Do Not Use Cotter Pin. fits MB16 Miller Curber Concrete by Miller Curber 4210132
$2.99
13
MS3900 Adjustable Yoke End fits MB16 Miller Curber Concrete by Miller Curber MS3900
$36.07
14
MS3800 Yoke Pin fits MB16 Miller Curber Concrete by Miller Curber MS3800
$12.27
15
42101-61 Wheel Hub With Studs fits MB16 Miller Curber Concrete by Miller Curber 4210161
$683.51
