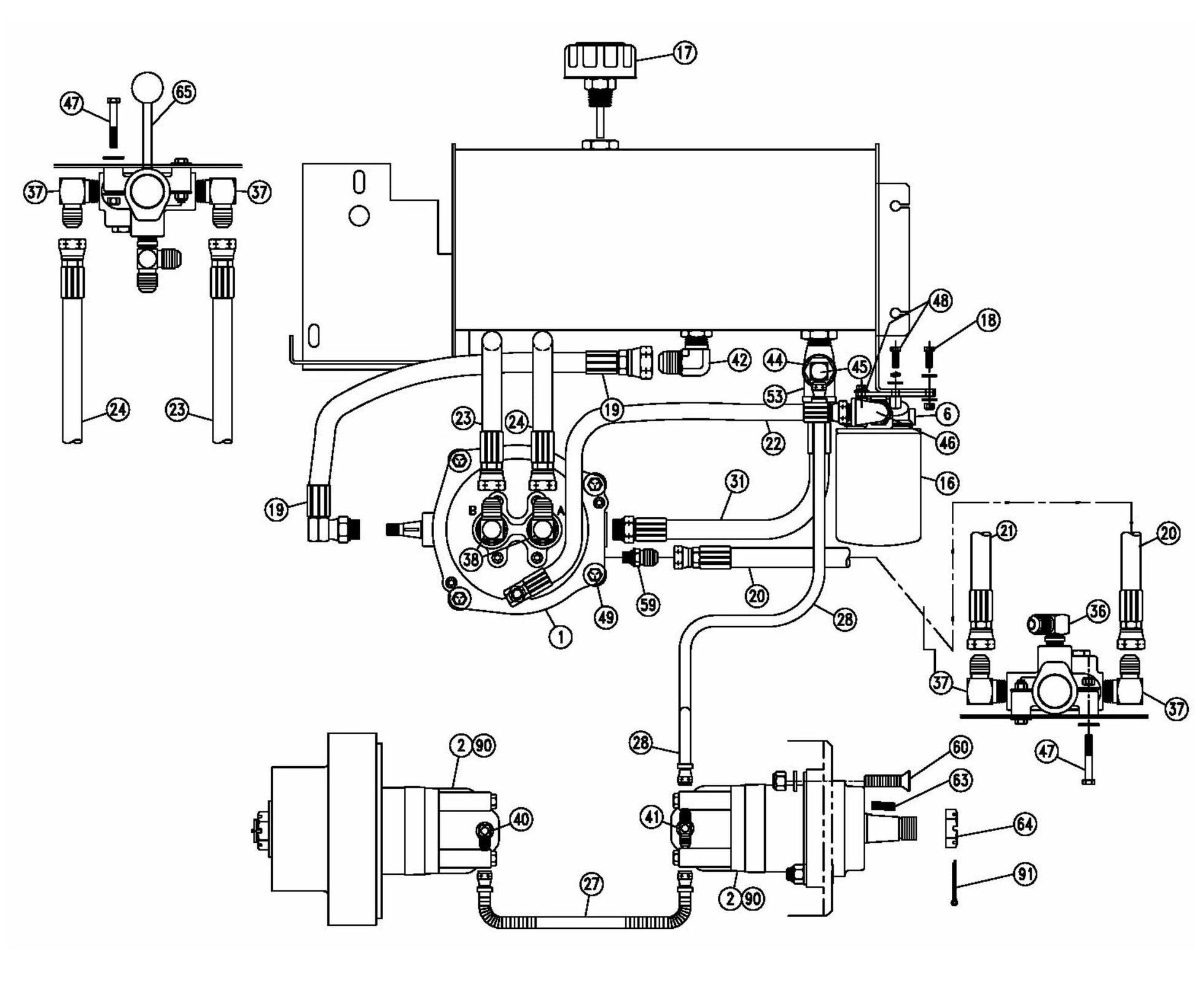

MB-16 Hydraulic System General Arrangement Diagram 1 Parts By Miller Curber

MB-16 Hydraulic System General Arrangement Diagram 1 Parts By Miller Curber

  • MB-16 Hydraulic System General Arrangement Diagram 1 Parts By Miller Curber
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
HM0500 Hydrostatic Pump fits MB16 Miller Curber Concrete by Miller Curber HM0500
$5,154.30
2
HM0600 Wheel Motor fits MB16 Miller Curber Concrete by Miller Curber HM0600
$1,280.92
6
FI0200 Spin-On Filter Assy. Complete fits MB16 Miller Curber Concrete by Miller Curber FI0200
$215.00
16
FI0350 Reservoir Filler Breather Assembly fits MB16 Miller Curber Concrete by Miller Curber FI0350
$77.60
17
42126-24 #10-32 Unf Plated Hex Nut fits MB16 Miller Curber Concrete by Miller Curber 4212624
$7.20
47
42126-24 #10-32 Unf Plated Hex Nut fits MB16 Miller Curber Concrete by Miller Curber 4212624
$7.20
48
42126-24 #10-32 Unf Plated Hex Nut fits MB16 Miller Curber Concrete by Miller Curber 4212624
$7.20
49
42126-24 #10-32 Unf Plated Hex Nut fits MB16 Miller Curber Concrete by Miller Curber 4212624
$7.20
60
42126-24 #10-32 Unf Plated Hex Nut fits MB16 Miller Curber Concrete by Miller Curber 4212624
$7.20
91
42126-24 #10-32 Unf Plated Hex Nut fits MB16 Miller Curber Concrete by Miller Curber 4212624
$7.20
18
42103-19 Hose Assembly, 15” Long fits MB16 Miller Curber Concrete by Miller Curber 4210319
Call for Price call for price call for price
19
HH1700 Hose Assembly, 20” Long fits MB16 Miller Curber Concrete by Miller Curber HH1700
$70.94
20
42103-21 Hose Assembly, 24” Long fits MB16 Miller Curber Concrete by Miller Curber 4210321
$191.21
21
42103-22 Hose Assembly, 18” Long fits MB16 Miller Curber Concrete by Miller Curber 4210322
$165.49
22
HH1900 Hose Assembly, 27” Long fits MB16 Miller Curber Concrete by Miller Curber HH1900
$112.57
23
HH2000 Hose Assembly, 30” Long fits MB16 Miller Curber Concrete by Miller Curber HH2000
Call for Price call for price call for price
24
42103-25 Hose Assembly, 69” Long fits MB16 Miller Curber Concrete by Miller Curber 4210325
$212.81
27
HH2100 Hose Assembly, 18” Long W/Spring Guard fits MB16 Miller Curber Concrete by Miller Curber HH2100
$66.81
28
HH2200 Hose Assembly, 54” Long W/Spring Guard fits MB16 Miller Curber Concrete by Miller Curber HH2200
$101.78
31
HH2500 Hose Assembly, 18” Long fits MB16 Miller Curber Concrete by Miller Curber HH2500
$89.10
36
FG3900 90º Male Elbow fits MB16 Miller Curber Concrete by Miller Curber FG3900
$48.85
37
FG3700 90º Male Elbow fits MB16 Miller Curber Concrete by Miller Curber FG3700
$59.16
41
FG4200 Straight Thread “O” Ring Branch Tee fits MB16 Miller Curber Concrete by Miller Curber FG4200
$33.15
42
42103-42 90º Male Elbow fits MB16 Miller Curber Concrete by Miller Curber 4210342
$23.31
44
42103-44 Hex Reducer Bushing Reservoir fits MB16 Miller Curber Concrete by Miller Curber 4210344
$23.36
45
FG4300 90º Male Elbow fits MB16 Miller Curber Concrete by Miller Curber FG4300
$31.16
46
42103-46 90º Street Elbow fits MB16 Miller Curber Concrete by Miller Curber 4210346
$22.18
40
FG4100 Straight Thread “O” Ring 90º Elbow fits MB16 Miller Curber Concrete by Miller Curber FG4100
$33.04
53
42103-53 Fitting Male Run Street Tee fits MB16 Miller Curber Concrete by Miller Curber 4210353
$114.12
59
42103-59 Straight Thread “O” Ring Connector fits MB16 Miller Curber Concrete by Miller Curber 4210359
$35.05
63
42103-63 Wheel Motor Key fits MB16 Miller Curber Concrete by Miller Curber 4210363
$22.46
64
42103-64 Wheel Motor Castle Nut fits MB16 Miller Curber Concrete by Miller Curber 4210364
$57.48
65
42103-65 Valve Handle Weldment fits MB16 Miller Curber Concrete by Miller Curber 4210365
$59.02
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
