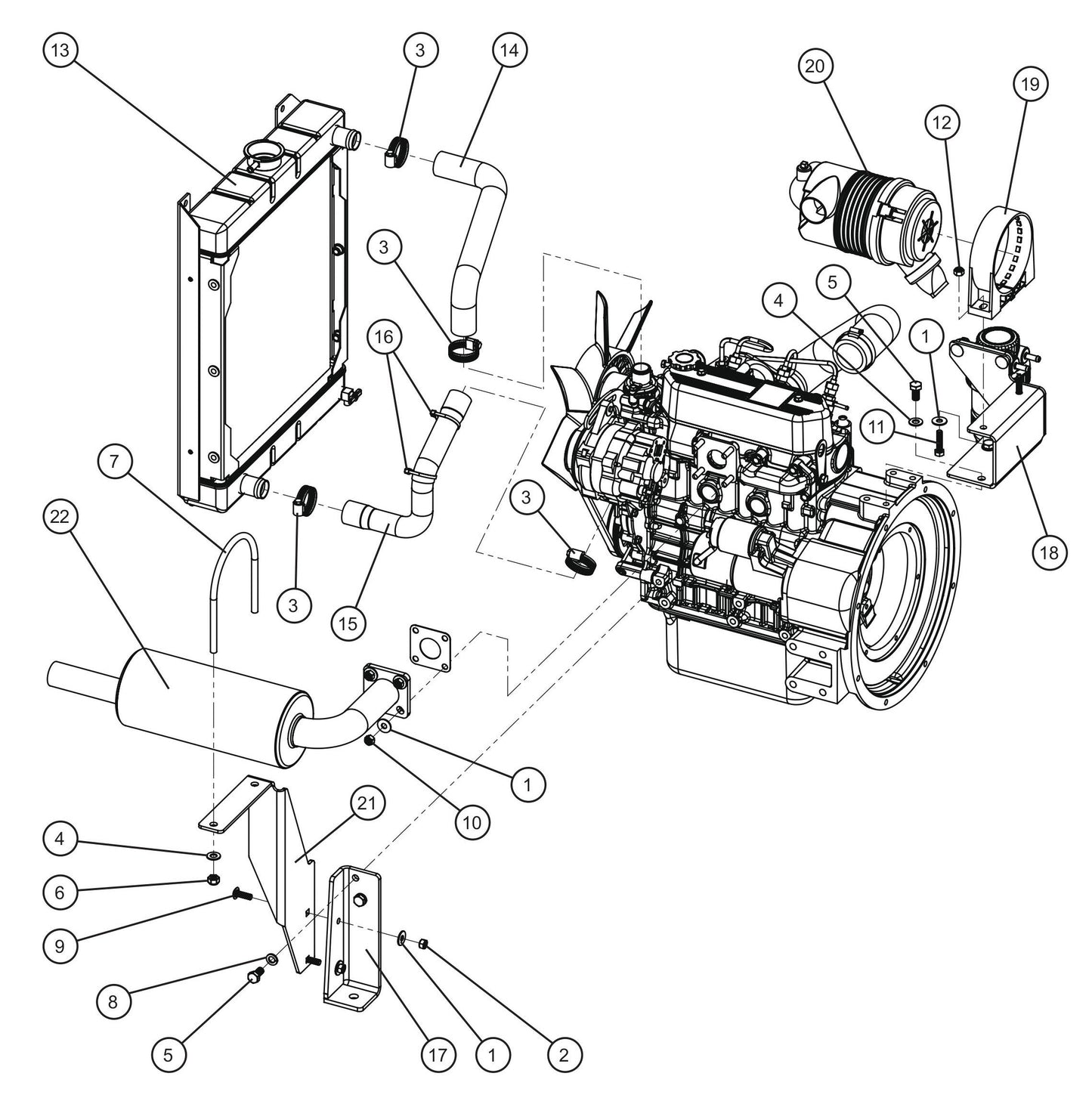

Mitsubishi Engine Assembly Group (1 of 5) Parts for Night Light NL5000 (0001NL500016 TO 9999NL500016) by Allmand

Mitsubishi Engine Assembly Group (1 of 5) Parts for Night Light NL5000 (0001NL500016 TO 9999NL500016) by Allmand

Skip to product information
1 of 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
047010 5/16 Flat Washer Pl for Night-Lite Nl5000 (0001Nl500016 To 9999Nl500016) Light Towers by Allmand
Call for Price call for price call for price
2
044033 5/16-18 Nylock Hex Nut Pl for Night-Lite Nl5000 (0001Nl500016 To 9999Nl500016) Light Towers by Allmand
$2.99
3
045035 #20 Hose Clamp for Night-Lite Nl5000 (0001Nl500016 To 9999Nl500016) Light Towers by Allmand
$4.88
4
047016 3/8 Flat Washer Sae Zinc for Night-Lite Nl5000 (0001Nl500016 To 9999Nl500016) Light Towers by Allmand
$2.99
5
042038 M10 X 20Mm X 1.25 Mm Hex Head Cs Gr8.8 Pl for Night-Lite Nl5000 (0001Nl500016 To 9999Nl500016) Light Towers by Allmand
$2.99
6
044080 3/8-16 Top Lock Hex Nut Pl for Night-Lite Nl5000 (0001Nl500016 To 9999Nl500016) Light Towers by Allmand
$2.99
7
105744 4.75” Muffler U-Bolt for Night-Lite Nl5000 (0001Nl500016 To 9999Nl500016) Light Towers by Allmand
$18.38
8
042151 M10 Split Lock Washer Pl for Night-Lite Nl5000 (0001Nl500016 To 9999Nl500016) Light Towers by Allmand
$2.99
9
053020 5/16-18 X 1 Carriage Bolt Pl for Night-Lite Nl5000 (0001Nl500016 To 9999Nl500016) Light Towers by Allmand
$2.99
10
042079 M8 X 1.25 Gr8 Top Lock Nut for Night-Lite Nl5000 (0001Nl500016 To 9999Nl500016) Light Towers by Allmand
Call for Price call for price call for price
11
102127 8Mm X 35Mm X 1.25 Hex Gr 8.8 Plated for Night-Lite Nl5000 (0001Nl500016 To 9999Nl500016) Light Towers by Allmand
$7.28
12
042081 M8 X 1.25Mm Nylock Hex Nut Pl Metric for Night-Lite Nl5000 (0001Nl500016 To 9999Nl500016) Light Towers by Allmand
$2.99
13
105393 Radiator Small Engines 1.0L / 1.1L for Night-Lite Nl5000 (0001Nl500016 To 9999Nl500016) Light Towers by Allmand
$891.00
14
108241 Radiator Hose Upper Mitsubishi L3E for Night-Lite Nl5000 (0001Nl500016 To 9999Nl500016) Light Towers by Allmand
$45.56
15
108435 Radiator Hose Lower Mitsubishi L3E for Night-Lite Nl5000 (0001Nl500016 To 9999Nl500016) Light Towers by Allmand
$62.93
16
068090 Cable Tie 8 for Night-Lite Nl5000 (0001Nl500016 To 9999Nl500016) Light Towers by Allmand
Call for Price call for price call for price
17
108239P Engine Bracket Right Weldment for Night-Lite Nl5000 (0001Nl500016 To 9999Nl500016) Light Towers by Allmand
Call for Price call for price call for price
18
108690P Air Cleaner Bracket Weldment Nl5000 for Night-Lite Nl5000 (0001Nl500016 To 9999Nl500016) Light Towers by Allmand
Call for Price call for price call for price
19
650263 Mounting Band Air Cleaner for Night-Lite Nl5000 (0001Nl500016 To 9999Nl500016) Light Towers by Allmand
$44.00
20
650262 Air Cleaner Radial Seal for Night-Lite Nl5000 (0001Nl500016 To 9999Nl500016) Light Towers by Allmand
$157.93
21
108264P Muffler Bracket for Night-Lite Nl5000 (0001Nl500016 To 9999Nl500016) Light Towers by Allmand
Call for Price call for price call for price
22
108245 Muffler Mitsubishi L3E for Night-Lite Nl5000 (0001Nl500016 To 9999Nl500016) Light Towers by Allmand
$363.53
NS
108311 Schematic Engine Harness for Night-Lite Nl5000 (0001Nl500016 To 9999Nl500016) Light Towers by Allmand
Call for Price call for price call for price
NS
108310 Engine Harness Mistubishi L3E for Night-Lite Nl5000 (0001Nl500016 To 9999Nl500016) Light Towers by Allmand
Call for Price call for price call for price
NS
108369 Charge Circuit Fuse 40Amp for Night-Lite Nl5000 (0001Nl500016 To 9999Nl500016) Light Towers by Allmand
Call for Price call for price call for price
