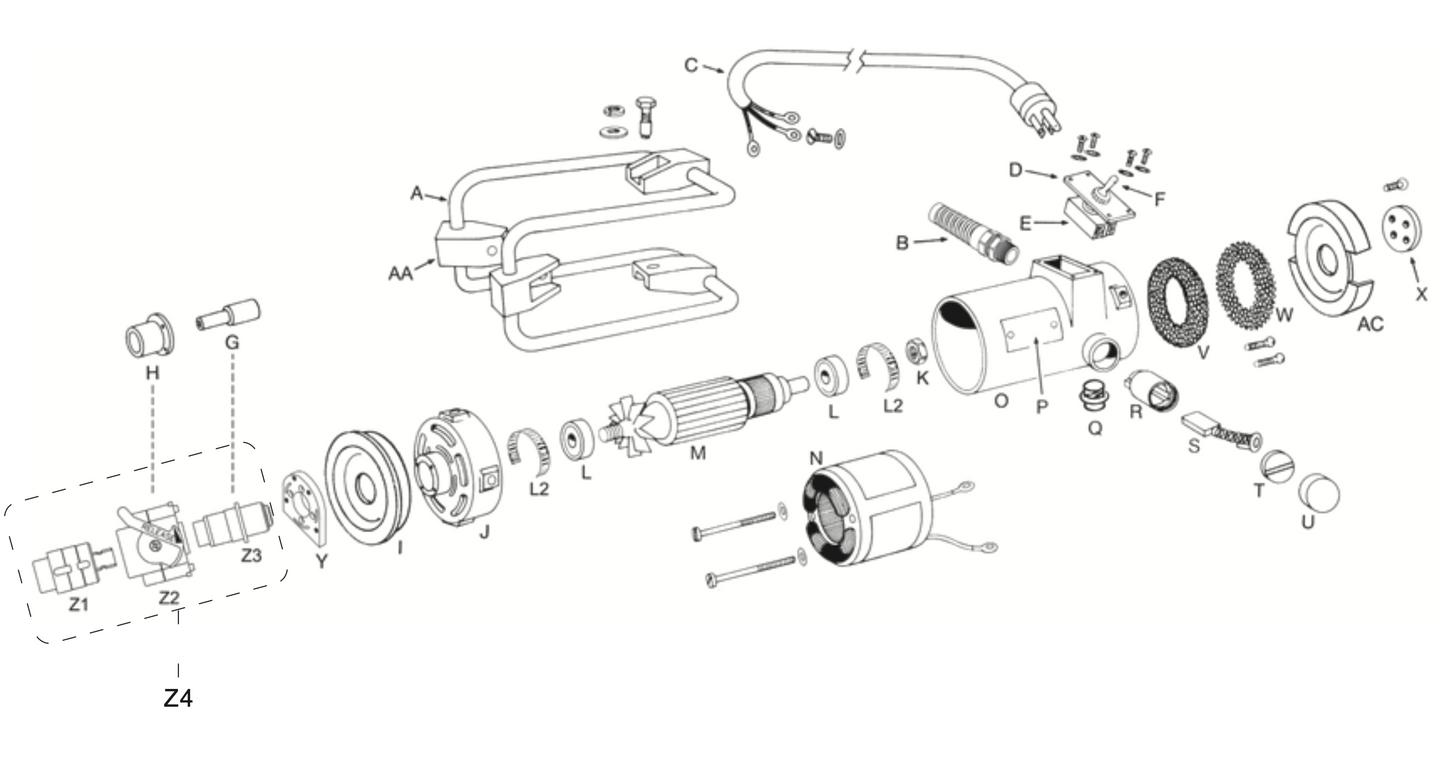

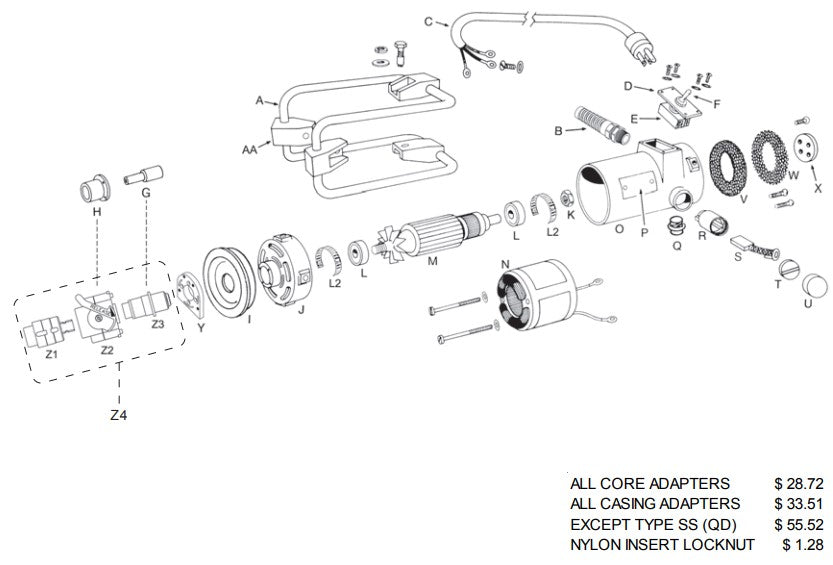

Model 2.4 UL Grounded Motor Assembly Parts by Oztec

Model 2.4 UL Grounded Motor Assembly Parts by Oztec

  • Model 2.4 UL Grounded Motor Assembly Parts by Oztec
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
A
6825A2 Frame Assembly (Includes 4 Shock Mounts) for Model 2.4 Concrete Vibrators by Oztec
$123.73
AA
319A2 Shock Mount (4 Required) for Model 2.4 Concrete Vibrators by Oztec
$22.84
B
334D2 Threaded Strain Relief Assy. for Model 2.4 Concrete Vibrators by Oztec
$27.45
C
174BG1 Cord Assembly for Model 2.4 Concrete Vibrators by Oztec
$55.19
E
177A1 Switch for Model 2.4 Concrete Vibrators by Oztec
$44.67
F
34A1 Rubber Boot (Switch) for Model 2.4 Concrete Vibrators by Oztec
$14.36
I
46G2 Baffle Assembly for Model 2.4 Concrete Vibrators by Oztec
$17.02
J
324B1 End Bell for Model 2.4 Concrete Vibrators by Oztec
$71.93
L
207S1-P Bearing Set for Model 2.4 Concrete Vibrators by Oztec
$65.23
L2
173E1-P Tolerance Ring Set for Model 2.4 Concrete Vibrators by Oztec
$21.00
M (115V)
6825D1 Armature 115V for Model 2.4 Concrete Vibrators by Oztec
$253.11
M (230V)
6825D2 Armature 230V for Model 2.4 Concrete Vibrators by Oztec
$312.73
N (115V)
221C1 Field 115V for Model 2.4 Concrete Vibrators by Oztec
$184.67
N (230V)
221G1 Field 230V for Model 2.4 Concrete Vibrators by Oztec
$219.60
O
368K1 Housing for Model 2.4 Concrete Vibrators by Oztec
$215.04
Q
444C1 Access Port Plug for Model 2.4 Concrete Vibrators by Oztec
$14.32
R
178A2-P Brush Holder Set for Model 2.4 Concrete Vibrators by Oztec
$39.17
S
240A2-P Brush Set for Model 2.4 Concrete Vibrators by Oztec
$27.80
T
329B2-P Screw Cap Set for Model 2.4 Concrete Vibrators by Oztec
$13.08
U
329E2-P Protective Cap Set, Threaded for Model 2.4 Concrete Vibrators by Oztec
$23.74
V
47A2 Filter for Model 2.4 Concrete Vibrators by Oztec
$17.00
W
49A2 Filter Screen for Model 2.4 Concrete Vibrators by Oztec
$17.02
X
346B1 Cover 1.2, 1.8, 2.4, 3.2 by Oztec
$14.36
Y
462AM1 Q.D. Spacer for Model 1.8 Concrete Vibrators by Oztec
$26.25
Z1
217A1 Oz Qd Casing Coupling Assy. for Model 1.8 Concrete Vibrators by Oztec
$39.28
Z2
270MX1 Oztec Qd Casing Adapter Assy. by Oztec
$47.74
Z3
271GT1 Oztec Qd Core Adapter Assy. for Model 1.8 Concrete Vibrators by Oztec
$40.66
Z4
OZQDKIT Oztec Qd Kit for Model 2.4 Concrete Vibrators by Oztec
$103.42
-
368B1 Housing 1.8, 2.4 by Oztec
$165.69
D 115V
Call for Price call for price call for price
- 230V
Call for Price call for price call for price
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
