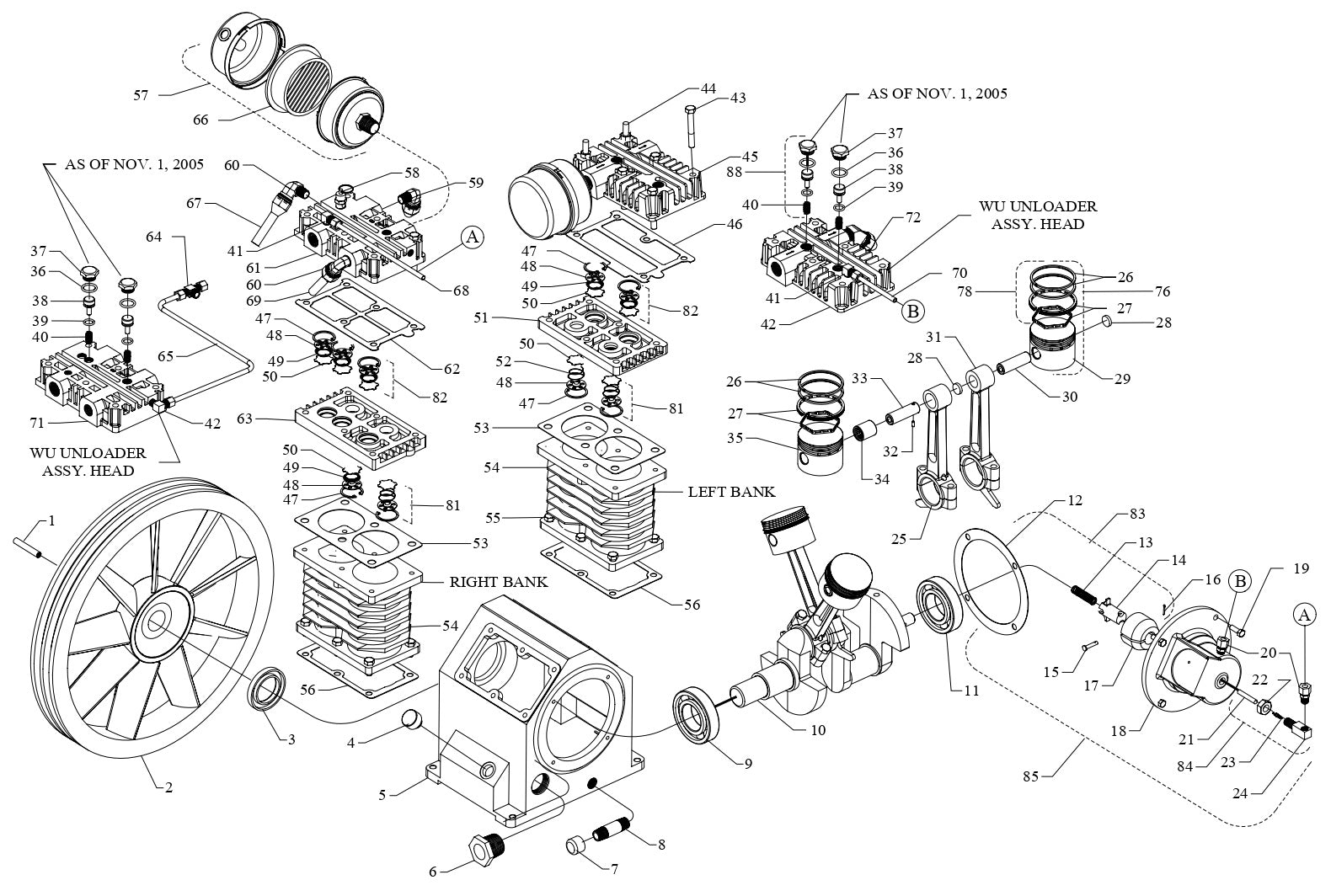

Model W & WU Four Cylinder Two Stage 2-1/2 (3) -2-1/2 Bore X 3-1/4 Stroke Assembly Parts By Jenny

Model W & WU Four Cylinder Two Stage 2-1/2 (3) -2-1/2 Bore X 3-1/4 Stroke Assembly Parts By Jenny

Skip to product information
1 of 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
120-1166 Pin, Rolled, Coiled, Stl, 5/16Odx1.25Lg, W25 for Jenny Air Compressors W25 1201166
$5.99
2
2201094 Flywheel W Pump Ci 16"Dia 2 Groove W23A for Jenny Air Compressors 220-1094
$1,069.81
3
150-1038 Seal, Oil, Lip, Single, 1.575 Dia, W11 for Jenny Air Compressors W11 1501038
$11.11
4
610-1051 Plug, Fill, Oil, W/O-Ring&Dipstick, Assy, W14 for Jenny Air Compressors W14 6101051
$14.99
5
2201036 Crankcase W Pump Ci Machined W1 for Jenny Air Compressors 220-1036
$529.65
6
360-1114 Gauge, Sight, Level, Oil, 1”Npt, Installed for Jenny Air Compressors LOW 3601114
$85.39
7
1221084 Cap Female Mi 3/8"Npt for Jenny Air Compressors 122-1084
$32.44
8
1221037 Nipple Steel Sch 40 3/8" X 2" L for Jenny Air Compressors 122-1037
$18.81
9
150-1031 Bearing, Ball, W9 for Jenny Air Compressors W9 1501031
$29.68
10
2201038 Crankshaft W Pump Ci Machined W20 for Jenny Air Compressors 220-1038
$758.50
11
150-1032 Bearing, Ball, W10 for Jenny Air Compressors W10 1501032
$35.52
12
104-1014 Gasket, Cap, Bearing, W Pump, 1/32Thk, W3 for Jenny Air Compressors W3 1041014
$5.99
13
150-1081 Spring, Unloader, Centrifical, Eq72 for Jenny Air Compressors EQ72 1501081
$24.76
14
220-1049 Tube, Operating, Centrifical Unloader, Eq71 for Jenny Air Compressors EQ71 2201049
$15.00
15
120-1169 Pin, Cotter, St, Black, 1\16Diax1\2Lg, Eq73B for Jenny Air Compressors EQ73B 1201169
$2.99
16
610-1066 Pin, Pivot, Unldr, Cntrfcl, W/Cttr Pin, Eq73 for Jenny Air Compressors EQ73 6101066
$4.95
17
610-1167 Unloader, Centrifugal, Weight, Set, Eq70 for Jenny Air Compressors EQ70 6101167
$41.56
18
2201037 Cap Bearing W Pump Ci Machined W2 for Jenny Air Compressors 220-1037
$168.89
19
1201002 Screw Cap Hexhd Gr5 St Blk 1/4-20X5/8 (10 Ft-Lb) for Jenny Air Compressors 120-1002
Call for Price call for price call for price
20
1211025 Connector Male Compression Br 1/4Tbx1/8" for Jenny Air Compressors 121-1025
$16.90
21
220-1050 Pin, Unloader, Centrifugal, Eq74D for Jenny Air Compressors EQ74D 2201050
$12.96
22
120-1171 Nut, Hex, Jam, Steel, Plated, 7/16-20, Eq74C for Jenny Air Compressors EQ74C 1201171
$3.99
23
120-1170 Valve, Core, Eq74A for Jenny Air Compressors EQ74A 1201170
$2.99
24
150-1035 Body, Unloader, Eq74B for Jenny Air Compressors EQ74B 1501035
$17.01
25
3101012 Rod Connecting Al High Pressure W21W for Jenny Air Compressors 310-1012
$143.69
26
150-1003 Ring, Compression, Piston, Steel, Eba 22, K33 for Jenny Air Compressors K33 1501003
$12.49
27
610-1065 Kit, Ring, Oil, W/Expander, Assy, K34 for Jenny Air Compressors K34 6101065
$10.33
28
104-1103 Bumper, Pin, Wrist, Plastic, K36A for Jenny Air Compressors K36A 1041103
Call for Price call for price call for price
29
220-1005 Piston, Pump, Aluminum, Machined, K32 for Jenny Air Compressors K32 2201005
$19.66
30
150-1005 Pin, Wrist, Piston, Steel, Hardened, K35 for Jenny Air Compressors K35 1501005
$11.09
31
3101007 Rod Connecting Pump Alum Machined W21 for Jenny Air Compressors 310-1007
$71.69
32
120-1165 Pin, Rolled, Steel, Black, 1/8Odx5/16L, Eq37 for Jenny Air Compressors EQ37 1201165
$3.99
33
150-1039 Pin, Piston, Steel, Eq35 for Jenny Air Compressors EQ35 1501039
Call for Price call for price call for price
34
150-1034 Bearing, Needle, Eq38 for Jenny Air Compressors EQ38 1501034
$21.67
35
220-1042 Piston, Pump, Al, Machined, 2 Stage, K32W for Jenny Air Compressors K32W 2201042
$38.83
36
1041015 Ring O Buna-N 1/2"Idx11/16"Odx3/32"Thk for Jenny Air Compressors 104-1015
$3.99
37
1221051 Plug Hex Brass 11/16-16 Un-2B X .550 for Jenny Air Compressors 122-1051
$24.71
38
150-1028 Piston, Unloader, Valve, Brass, Ku81 for Jenny Air Compressors KU81 1501028
$10.20
39
104-1020 Ring, O, Silicon, 7/16”Idx5/8”Odx3/32”Thk for Jenny Air Compressors KU82 1041020
$3.99
40
150-1020 Spring, Valve, Unloader, Intake, Ku83 for Jenny Air Compressors KU83 1501020
$3.99
41
1211032 Elbow Male Compression Br 1/4Tbx1/8"Nptm for Jenny Air Compressors 121-1032
$28.44
42
2201016 Head Unloading G Pump Ci 6Holes Lu80 1 Left Hand Head for Jenny Air Compressors 220-1016
$279.98
43
120-1028 Screw, Cap, Hexhd, Gr5, St, Blk, 5/16-18X2-1/4 for Jenny Air Compressors K52 1201028
$3.99
44
120-1252 Bolt, Stud, Hex, St, 5/16-18X2-1/4X5/8, K52-1 for Jenny Air Compressors K52-1 1201252
$6.68
45
310-1004 Head, Start/Stop, G Pump, Ci, Painted, L50 for Jenny Air Compressors L50 3101004
Call for Price call for price call for price
46
104-1008 Gasket, Head, K&G&W Pump, 1/32Thk, L51 for Jenny Air Compressors L51 1041008
$12.14
47
150-1041 Retainer, Valve, Steel, Pas, 0.062”Thk, K43 for Jenny Air Compressors K43 1501041
$3.99
48
109-1010 Valve, Check, Bumper, Steel, K44 for Jenny Air Compressors K44 1091010
$5.99
49
150-1018 Spring, Cone, Ss, Valve, Discharge, K46 for Jenny Air Compressors K46 1501018
$3.99
50
109-1011 Valve, Check, Disc, Stainless Steel, K47 for Jenny Air Compressors K47 1091011
$4.95
51
2201013 Plate Valve L Pump Ci Machined L40 for Jenny Air Compressors 220-1013
$19.66
52
150-1017 Spring, Cone, Ss, Valve, Intake, K45 for Jenny Air Compressors K45 1501017
$3.99
53
104-1007 Gasket, Plate, Valve, K&G&W Pump, 1/32Tk, L41 for Jenny Air Compressors L41 1041007
$12.83
54
360-1152 Cylinder, W Pump, Ci, Painted, Blue, W30 for Jenny Air Compressors W30 3601152
$175.19
55
1201017 Screw Cap Hexhd Gr5 St Blk 5/16-18X3/4 (15Ft-Lb) for Jenny Air Compressors 120-1017
$5.39
56
104-1006 Gasket, Cylinder, K&G&W Pump, 1/32Thk, K31 for Jenny Air Compressors K31 1041006
$4.95
57
320-1121 Filter, W/Decal, Assy, G154S for Jenny Air Compressors G154S 3201121
$96.39
58
141-1006 Valve, Safety, Seat, Hard, 1/4”, 65 Psi, Sv65 for Jenny Air Compressors SV65 1411006
$22.10
59
1211013 Elbow Male Brass 1/2-45Saex1/2"Nptm for Jenny Air Compressors 121-1013
$47.32
60
1211015 Elbow Male Brass 5/8-45Saex1/2"Nptm for Jenny Air Compressors 121-1015
$57.87
72
1211015 Elbow Male Brass 5/8-45Saex1/2"Nptm for Jenny Air Compressors 121-1015
$57.87
61
310-1022 Head, Start/Stop, Eq Pump, Ci, Painted, Eq50 for Jenny Air Compressors EQ50 3101022
$117.21
62
104-1013 Gasket, Head, K&G&W Pump, 1/32Thk, Eq51 for Jenny Air Compressors EQ51 1041013
Call for Price call for price call for price
63
2201041 Plate Valve W Pump Ci Machined W40 for Jenny Air Compressors 220-1041
$128.44
64
1211039 Tee Branch Brass 1/4"Tbx1/4"Tbx1/8"Nptm for Jenny Air Compressors 121-1039
$38.68
65
610-1136 Tube, Unloader, Head-Head, Cu, W Pump, Wu88 for Jenny Air Compressors WU88 6101136
$15.11
66
150-1104 Element, Filter, Air, Compressor, Jenny, G54E for Jenny Air Compressors G54E 1501104
$17.04
67
610-1057 Intercooler, Finned, W/Flare Nuts, Asy, Eq65 for Jenny Air Compressors EQ65 6101057
$46.56
68
610-1135 Tube, Unloader, Centrifugal, Cu, W Pump, W78 for Jenny Air Compressors W78 6101135
$14.59
69
610-1059 Intercooler, Finned, W/Flare Nuts, Assy, W65 for Jenny Air Compressors W65 6101059
$56.86
70
610-1134 Tube, Breather, Bent, Cu, J&W Pump, W18 for Jenny Air Compressors W18 6101134
$12.04
71
2201043 Head Unloading Eq Pump Ci 6Holes Eq80 Right Hand Head for Jenny Air Compressors 220-1043
$156.35
73
610-1050 Kit, Gasket, W Pump, Assy, W100 for Jenny Air Compressors W100 6101050
$36.04
74
610-1132 Kit, Basic, Repair, W Pump, W101 for Jenny Air Compressors W101 6101132
$224.25
75
610-1133 Kit, Basic, Repair, Wu Pump, Wu101 for Jenny Air Compressors WU101 6101133
$258.52
76
610-1028 Piston, W/Rings&Pin, Assy, K132 for Jenny Air Compressors K132 6101028
$65.44
77
610-1013 Piston, High Psi, W/Rings&Pin, Assy, Eq132 for Jenny Air Compressors EQ132 6101013
$71.64
78
610-1020 Kit, Pump, Ring, Piston, F&K&G&W Pump, K133 for Jenny Air Compressors K133 6101020
$42.64
79
610-1045 Plate, Valve, L Pump, W/Valves&Gaskets, L140 for Jenny Air Compressors L140 6101045
$134.87
80
610-1052 Plate, Valve, Right, W/Valves&Gaskets, W140 for Jenny Air Compressors W140 6101052
$122.58
81
6101031 Valve Check Suction Assy K145 for Jenny Air Compressors 610-1031
$12.10
82
610-1032 Valve, Discharge, Assy, K146 for Jenny Air Compressors K146 6101032
$12.10
83
610-1053 Weight, Unloader, Centrifical, W/Gskt, W170 for Jenny Air Compressors W170 6101053
$122.30
84
3101016 Valve Unloader Centrifical Assy Eq174 Assy. Includes 20 21 22 23 24 for Jenny Air Compressors 310-1016
$22.79
85
610-1054 Unloader, Centrifical, W/B Cap, Assy, W175 for Jenny Air Compressors W175 6101054
$196.53
86
310-1008 Head, Unloading, K&G, W/1/2”Prt, 7 Hle, Lu180 for Jenny Air Compressors LU180 3101008
$145.93
86
310-1013 Head, Unloading, Eq Pump, Ci, Painted, Eq180 for Jenny Air Compressors EQ180 3101013
$102.98
87
610-1042 Valve, Unloader, Head, Pump, Assy, Ku181 for Jenny Air Compressors KU181 6101042
$12.07
