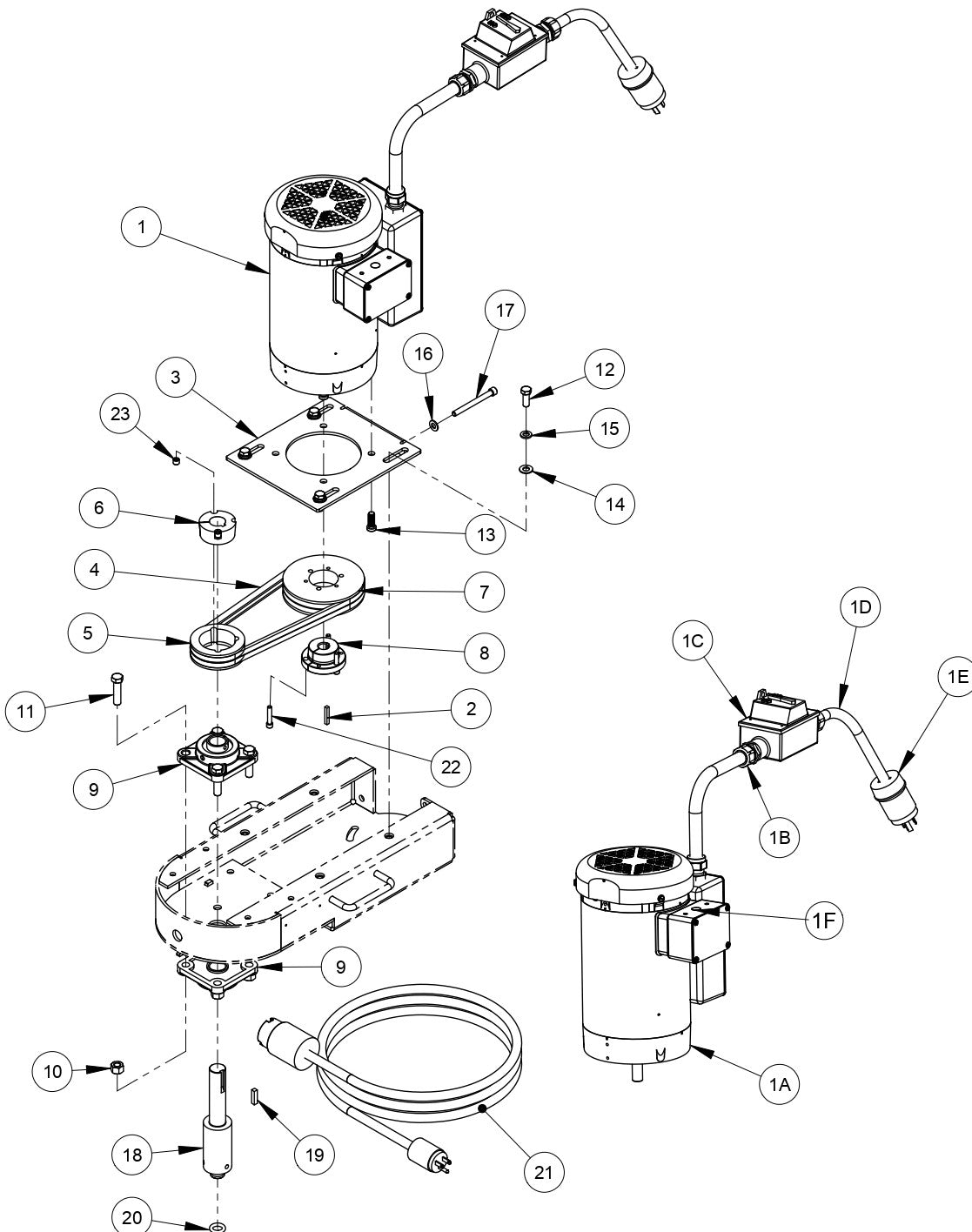

Motor Assembly Parts For CC80 Floor Grinders By Diamond Products

Motor Assembly Parts For CC80 Floor Grinders By Diamond Products

  • Motor Assembly Parts For CC80 Floor Grinders By Diamond Products
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
2600594 2HP-1 Ph Elec. Motor w/ on/off switch, 20A Plug for CC80 FLOOR GRINDER Core Cut by Diamond Products
$1,781.01
2
6048229 Key, 3/16" Sq. x 1-1/4" for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$2.99
3
6040532 Engine Mounting Plate for CC80 FLOOR GRINDER Core Cut by Diamond Products
Call for Price call for price call for price
4
2500034 V-Belt, 3VX315 for 5 HP and 8 HP for CC1100 Concrete Saw Core Cut by Diamond Products
$35.51
5
2504694 Sheave, 3.35-2 Groove (2-3V-3.35-TB) for CC80 FLOOR GRINDER Core Cut by Diamond Products
$120.00
6
2500030 Taper Bushing, 1" w/ Set Screws for CC80 FLOOR GRINDER Core Cut by Diamond Products
$57.03
7
2505006 Sheave, 5.00-2 Groove (3V500SH) for CC80 FLOOR GRINDER Core Cut by Diamond Products
$136.62
8
2504699 Bushing, 5/8" QD SH for CC80 FLOOR GRINDER Core Cut by Diamond Products
$46.27
9
2501063 Bearing, 4 Bolt Flange, 1" ID for CC80 FLOOR GRINDER Core Cut by Diamond Products
$40.87
10
2900045 Lock Nut, 7/16-14 Nylon for CC80 FLOOR GRINDER Core Cut by Diamond Products
$2.99
11
2900149 Cap Screw, Hex Hd., 7/16-14 x 1-3/4" for CC80 FLOOR GRINDER Core Cut by Diamond Products
$6.99
12
2900005 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
13
2900983 Cap Screw, Soc. Low Hd., 3/8-16 x 1" for CC80 FLOOR GRINDER Core Cut by Diamond Products
$3.99
14
2900014 3/8" SAE Flat Washer for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
15
2900006 Lock Washer 3/8" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
16
2900022 Flat Washer 5/16" SAE 5/16" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
17
2900613 Cap Screw, Soc. Hd., 5/16-18 x 3-1/4 for CC80 FLOOR GRINDER Core Cut by Diamond Products
$3.99
18
6010487 Shaft, Grinding Head for CC80 FLOOR GRINDER Core Cut by Diamond Products
$384.12
19
6011089 Key, 1/4" Sq. x 1" Long for CC80 FLOOR GRINDER Core Cut by Diamond Products
$2.99
20
2503195 O-Ring, Metric M5 x 15mm for CC80 FLOOR GRINDER Core Cut by Diamond Products
$11.58
21
4699100 Cord 50' 12GA, 1 15V 20A Twist to15A Straight for CC80 FLOOR GRINDER Core Cut by Diamond Products
$481.14
22
2900519 Cap Screw, Soc. Hd., 1/4-20 x 1-1/4 for CC80 FLOOR GRINDER Core Cut by Diamond Products
$4.99
23
2900131 Set Screw, Soc. Hd., 3/8-16 x 3/8" for CC80 FLOOR GRINDER Core Cut by Diamond Products
$3.99
1A
2600271 Motor, 2HP-1PH Baldor for CC80 FLOOR GRINDER Core Cut by Diamond Products
$1,719.63
1B
2800043 Connector, 3/4" Cord for CC80 FLOOR GRINDER Core Cut by Diamond Products
$24.75
1C
2800309 Switch Box Lid W/Gaskets & Screws for CC80 FLOOR GRINDER Core Cut by Diamond Products
$421.74
1D
6040347 12/3 Cord W/ 20Amp L5-20P Plug for CC80 FLOOR GRINDER Core Cut by Diamond Products
$62.66
1E
2800087 Plug, Nema L5-20P,125VAC-20Amp for CC80 FLOOR GRINDER Core Cut by Diamond Products
$28.79
1F
2803200 Motor Reset Switch for CC80 FLOOR GRINDER Core Cut by Diamond Products
$258.39
