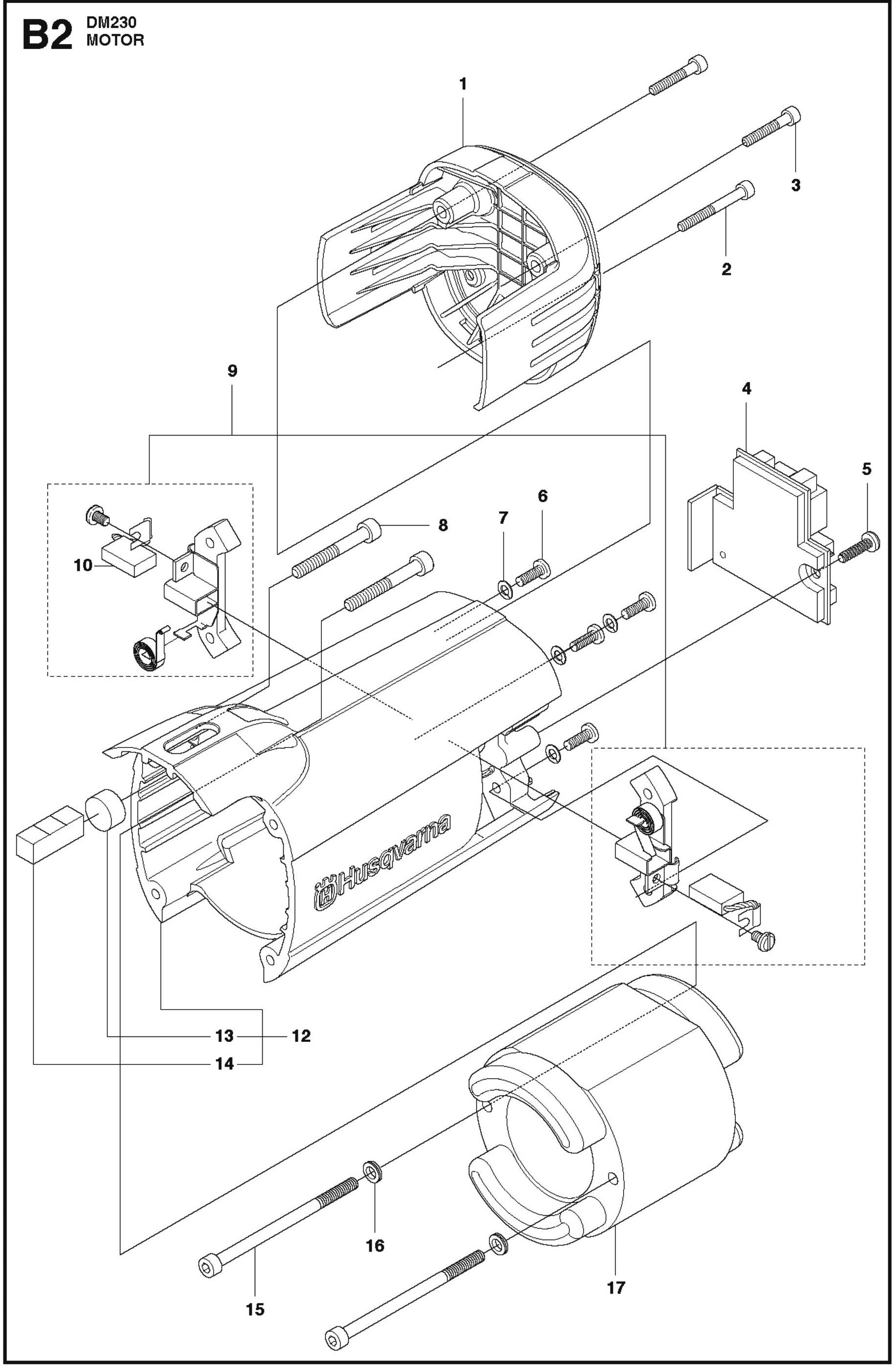

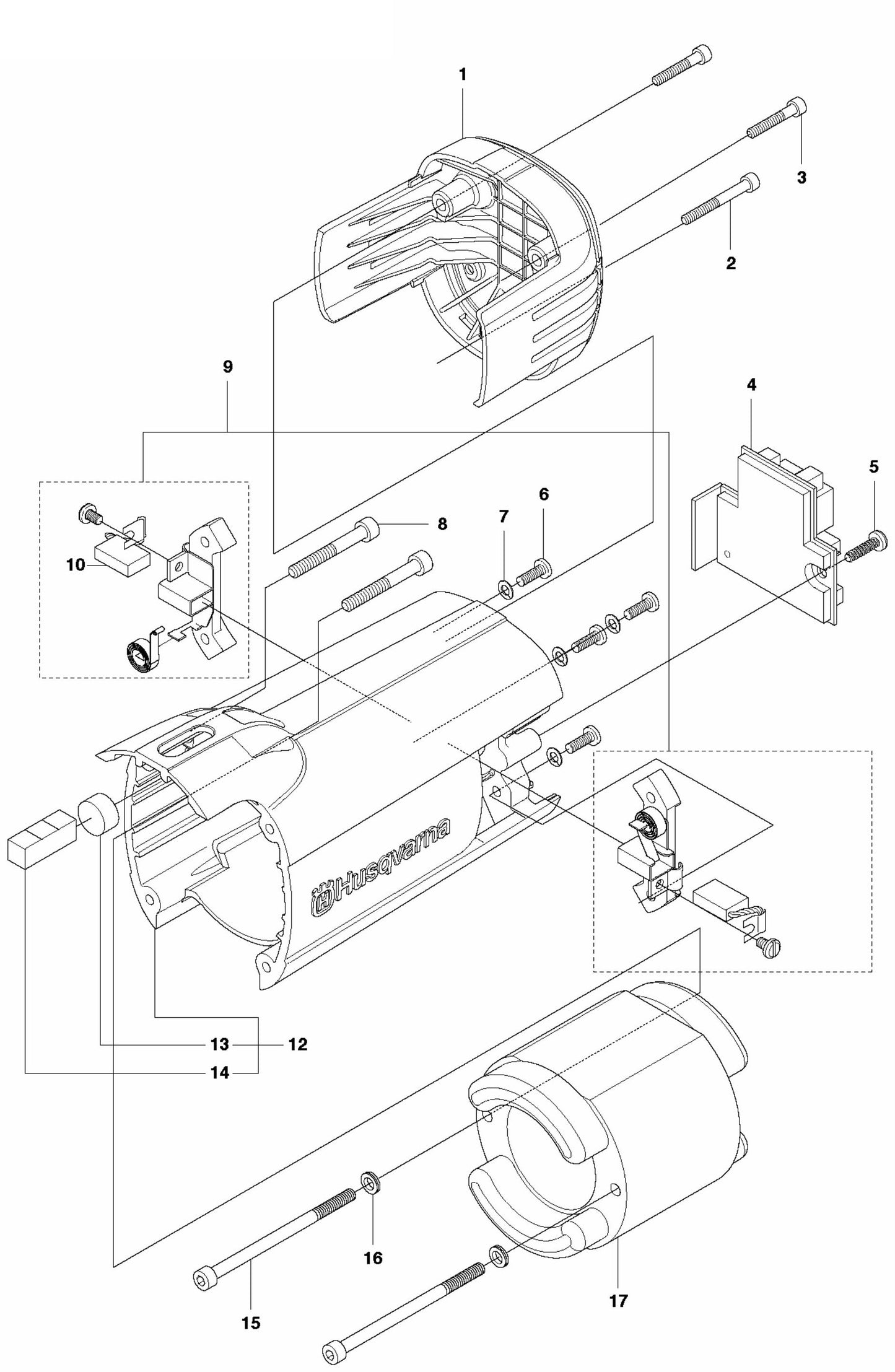

DM 230 Motor Assembly Parts-2 by Husqvarna

DM 230 Motor Assembly Parts-2 by Husqvarna

  • DM 230 Motor Assembly Parts-2 by Husqvarna
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
588586001 REAR COVER FOR CORE DRILL BY HUSQVARNA
$25.18
2
725533755 SHCS M5 X 35 ISO 4762-12.9 B/O FOR FASTENERS BY HUSQVARNA
$4.89
3
503200778 SCREW IHSCFM M5X25 10.9 ZN/FE FOR CORE DRILL BY HUSQVARNA
$2.90
4
544123402 PRINTED CIRCUIT ASSY. FOR CORE DRILL BY HUSQVARNA
$274.55
4
544123401 Printed Circuit Assembly 230V for DM230 Core Drill by Husqvarna
$192.85
5
525476301 C1 SCREW FOR CORE DRILL BY HUSQVARNA
$2.90
6
724129101 SCREW FOR POWER CUTTERS BY HUSQVARNA
$4.89
7
735113650 WASHER QTY 10 FOR POWER CUTTERS BY HUSQVARNA
$34.89
8
725533955 Screw Ihscm for DM 230 Drill Motors by Husqvarna
Call for Price call for price call for price
9
582873903 Brush Holder Kit 12.6mm for DM220 and DM230 Core Drills and TS60 Saw by Husqvarna
$88.30
10
506225805 Carbon Brush for DM220 DM230 Core Drills and TS 60 Saw by Husqvarna
$40.10
13
544231301 LEVEL FOR CORE DRILL BY HUSQVARNA
$2.90
14
544231201 LEVEL FOR CORE DRILL BY HUSQVARNA
$5.80
16
503230402 LOCK WASHER-M5 FOR POWER CUTTERS BY HUSQVARNA
$12.72
17
591363903 STATOR ASSY, DM230, 230V FOR CORE DRILL BY HUSQVARNA
$171.00
17
591363904 STATOR ASSY DM230 120V FOR CORE DRILL BY HUSQVARNA
$442.70
15
725534755 HSHCS, M5 X 0.8 X 80 12.9 BO FOR FASTENERS BY HUSQVARNA
$7.94
