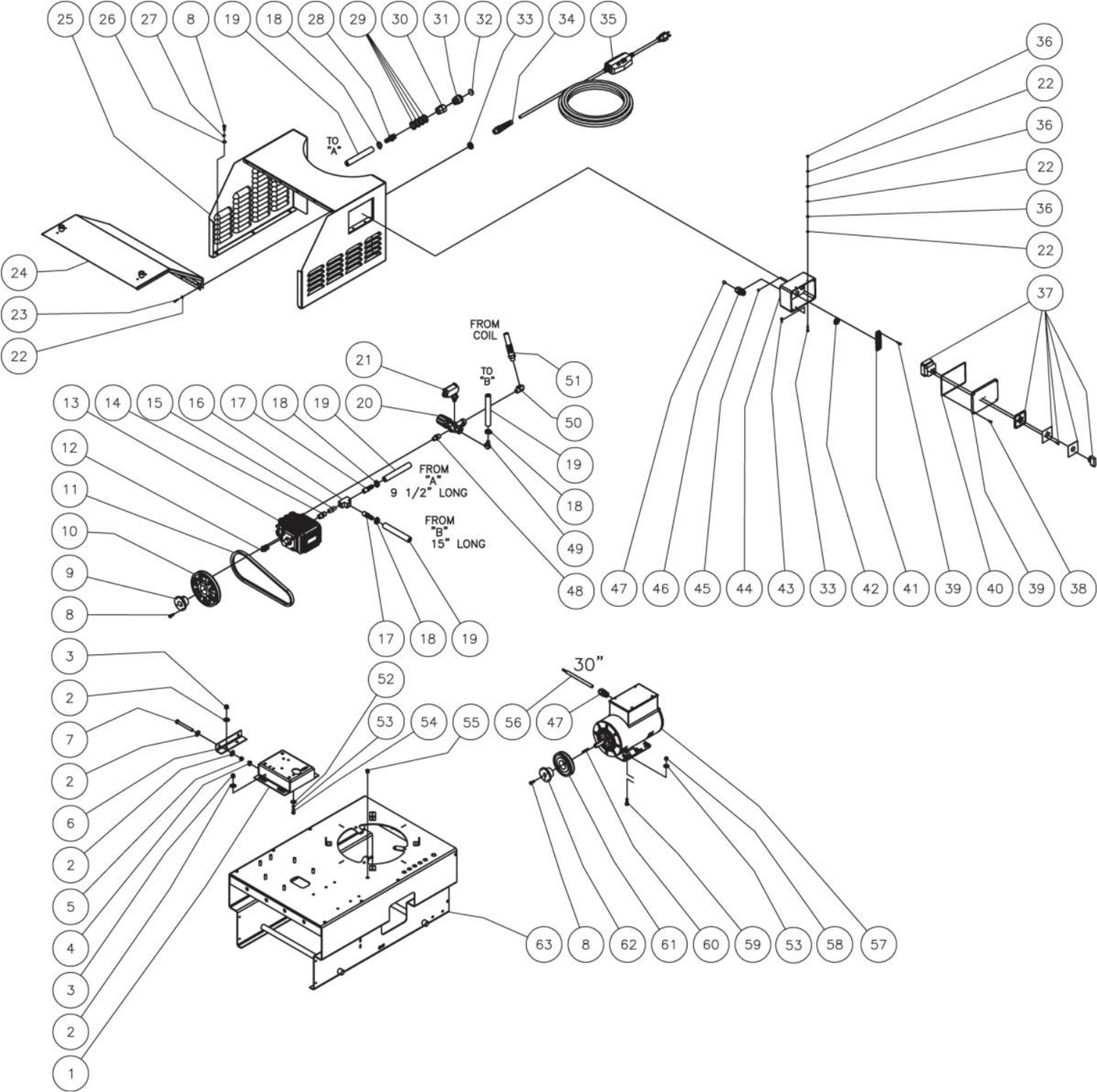

HLP-0703-2M10, HLP-1502-2M10, DH-0703, DH-1502 Motor/Pump Assembly Parts by Mi-T-M

HLP-0703-2M10, HLP-1502-2M10, DH-0703, DH-1502 Motor/Pump Assembly Parts by Mi-T-M

  • HLP-0703-2M10, HLP-1502-2M10, DH-0703, DH-1502 Motor/Pump Assembly Parts by Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
5-0153A18 Pump Hat for MiTM Pressure Washers 50153A18
Call for Price call for price call for price
2
28-0023 Washer for MiTM Pressure Washers by MiTM 280023
$4.49
3
30-0159 LOCKNUT BY MITM
$0.68
4
30-6025 Clip Nut for MiTM Pressure Washers 306025
$21.38
5
30-0006 Hex Nut for MiTM Pressure Washers 300006
$7.65
6
20-0584A18 Tension Bracket for MiTM Pressure Washers 200584A18
$57.12
7
27-0576 Bolt for ABS Air Compressor by Mi-T-M 270576
Call for Price call for price call for price
8
27-0015 Bolt for ABS Air Compressor by Mi-T-M 270015
$1.99
9
9-0017 Pump Bushing H24Mm Spc for AC1-HE02-05M by Mi-T-M 90017
$21.01
10
10-0103 Sheave Ak64H for AC1-HE02-05M by Mi-T-M 100103
$26.89
11
11-0012 Cog Belt Ax31 for AC1-HE15-04M Air Compressor by Mi-T-M 110012
$23.20
11
11-0016 Cog Belt Ax32 for AC1-HE02-05M1 Air Compressor by Mi-T-M 110016
$23.67
12
*22-0005 Valve-Thermal Relief 1/2M 145F for MI-T-M 3004-0ME1 CW Series by MiTM 220005
Call for Price call for price call for price
13
3-0365 PUMP BY MITM
$630.26
14
23-0016 Bushing 1/2M X 3/8F Hex Brass for AC1-HE02-05M by Mi-T-M 230016
$6.03
15
23-0027 Nipple 3/8M X 3/8M Hex Brass for AC1-HE02-05M1 Air Compressor by Mi-T-M 230027
$7.76
16
23-0041 Tee 3/8" All Female Brass for AC1-HE02-05M1 Air Compressor by Mi-T-M 230041
$20.52
17
23-0105 Barb 3/8Mp X 1/2 Hose Brass for AC1-HE02-05M1 Air Compressor by Mi-T-M 230105
$7.58
18
42-0011 Hose Clamp for ABS Air Compressor by Mi-T-M 420011
Call for Price call for price call for price
19
15-0007 Hose *(Two Feet Required) for ABS Air Compressor by Mi-T-M 150007
Call for Price call for price call for price
20
850-0252 Unloader Assy for AC1-HE02-05M by Mi-T-M 8500252
$131.04
21
22-0171 Pressure Switch 1/4Bsp 15 Bar for AC1-HE02-05M by Mi-T-M 220171
$77.70
22
28-1009 Star Washer for MiTM Pressure Washers by MiTM 281009
$4.49
23
27-8835 Screw for MiTM Pressure Washers by MiTM 278835
$4.49
24
850-0342 CABINET DOOR ASSEMBLY BY MITM
$119.01
25
20-0718A18 HOOD ASSEMBLY BY MITM
$120.15
26
28-0002 Washer for MiTM Pressure Washers 280002
$5.93
27
29-0006 Lockwasher for MiTM Pressure Washers by MiTM 290006
$4.49
28
23-0045 Barb 1/2Mp X 1/2 Hose Brass for AC1-HE02-05M1 Air Compressor by Mi-T-M 230045
$11.46
29
28-0051 Washer for MiTM Pressure Washers 280051
$20.40
30
23-0001 Garden Hose-Swiv 1/2Fx3/4F-Br for AC1-HE02-05M by Mi-T-M 230001
$13.87
31
22-0201 Backflow Preventor-Vacuum Type for AC1-HE02-05M1 Air Compressor by Mi-T-M 220201
$37.17
32
19-0001 Filter-Inlet Washer W/Screen for AC1-HE02-05M by Mi-T-M 190001
$1.99
33
32-0108 Locknut 1/2" Electrical for AC1-HE02-05M by Mi-T-M 320108
$3.99
34
32-0407 Cord Strain Relief W/ Pigtail for AC1-HE02-05M1 Air Compressor by Mi-T-M 320407
$9.72
35
32-0215 Cord 12/3 W/Gfi Plug Nema5-20P for AC1-HE15-04M Air Compressor by Mi-T-M 320215
$134.04
35
32-0268 Cord 14/3 W/Gfci 15 Amp for AC1-HE02-05M by Mi-T-M 320268
$126.20
36
30-6001 Nut for MiTM Pressure Washers by MiTM 306001
$4.49
37
32-0679 Cam Switch for AC1-HE02-05M1 Air Compressor by Mi-T-M 320679
$122.69
37
32-0434 Switch/Cam for AC1-HE02-05M by Mi-T-M 320434
$76.34
38
70-0197 Kit Hardware/Seal for AC1-HE02-05M1 Air Compressor by Mi-T-M 700197
$5.99
39
32-0433A18 Lid Painted for AC1-HE02-05M1 Air Compressor by Mi-T-M 320433A18
$38.21
40
27-8930 SCREW BY MITM
Call for Price call for price call for price
41
32-0436 20 Amp Terminal Strip 8 Pair for AC1-HE02-05M by Mi-T-M 320436
$13.31
42
27-8807 Bolt for MiTM Pressure Washers by MiTM 278807
$4.49
43
27-9526 Bolt BY MITM
$1.35
44
32-0432A18 Electric Box Painted for AC1-HE02-05M1 Air Compressor by Mi-T-M 320432A18
$68.82
45
30-8152 LOCKNUT BY MITM
$0.68
46
32-0437 Strain Relief for AC1-HE02-05M by Mi-T-M 320437
$6.40
47
32-0514 Plug Strain Relief Rubber for AC1-HE02-05M1 Air Compressor by Mi-T-M 320514
$4.85
48
*24-0010 Nipple 3/8" Hex Steel for Mi-T-M CA-2403-0MRB by MiTM 240010
$7.89
49
23-0119 Elbow 1/4M 1/2 Barb for AC1-HE02-05M by Mi-T-M 230119
$20.10
50
23-0034 Elbow 3/8M X 3/8F 90 Str Brass for AC1-HE02-05M1 Air Compressor by Mi-T-M 230034
$19.33
51
15-0194 Hose 3/8X24" 4500Psi R2 Black for AC1-HE02-05M1 Air Compressor by Mi-T-M 150194
$30.64
52
28-0022 Washer for MiTM Pressure Washers by MiTM 280022
$4.49
53
29-0007 Lockwasher for ABS Air Compressor by Mi-T-M 290007
Call for Price call for price call for price
54
27-8884 Screw for MiTM Air Compressors by MiTM 278884
$4.43
55
9-0028 Bushing 1/2 Od Snap for AC1-HE02-05M1 Air Compressor by Mi-T-M 90028
$1.99
56
32-0440 Cord 12/3 for AC1-HE02-05M1 Air Compressor by Mi-T-M 320440
$9.61
57
2-0119 Motor 2 Hp 115/230V 60 Hz 1Ph for AC1-HE15-04M Air Compressor by Mi-T-M 20119 2-0235
$535.95
57
2-0118 Motor 1.5 Hp Odp 115/208-230 V for AC1-HE02-05M by Mi-T-M 20118
$399.47
58
30-0157 Locknut for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 300157
$2.85
59
27-0067 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270067
$1.99
60
43-0072 Key 3/16" X 1-3/8" for AC1-HE02-05M1 Air Compressor by Mi-T-M 430072
$9.98
61
10-0099 Sheave Ak44H for AC1-HE15-04M Air Compressor by Mi-T-M 100099
$22.83
61
10-0122 Sheave Ak54H for AC1-HE02-05M1 Air Compressor by Mi-T-M 100122
$28.04
62
9-0037 Bushing D X 5/8 for AC1-HE02-05M by Mi-T-M 90037
$19.22
63
5-0195A18 FRAME ASSEMBLY BY MITM
$507.74
