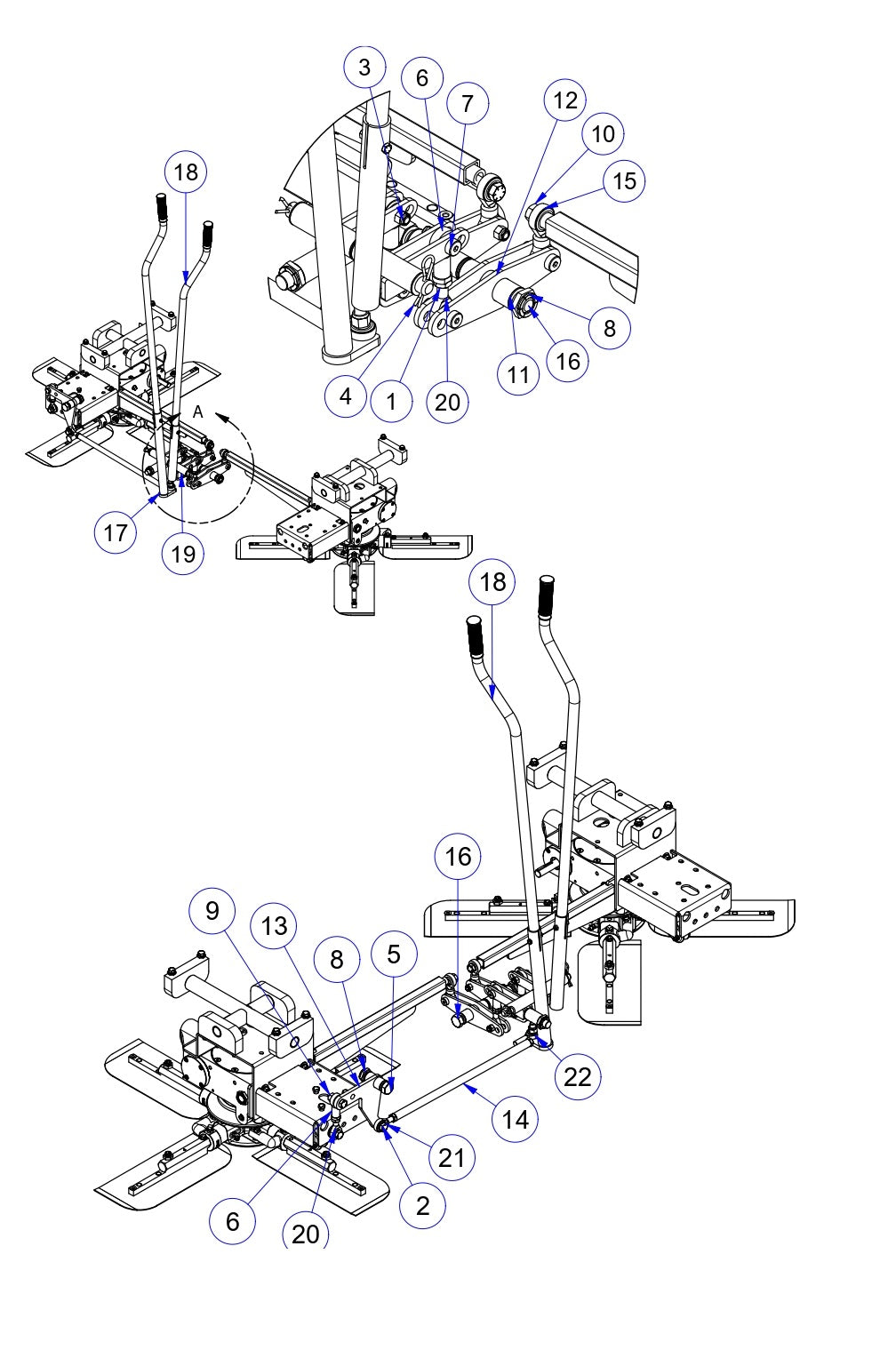

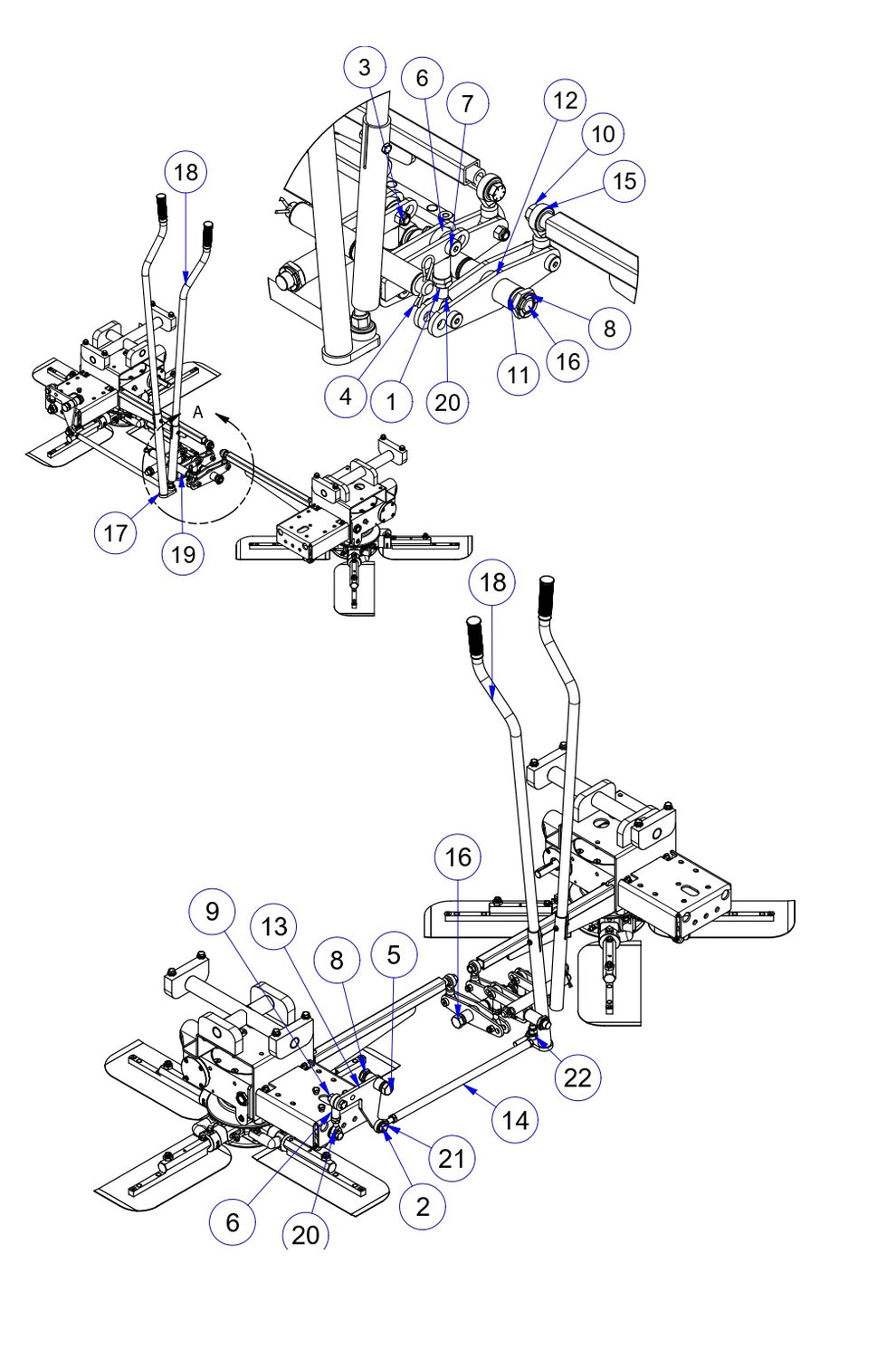

MP235 Mechanical Pro Riders Steering System Assembly Parts by Allen Engineering

MP235 Mechanical Pro Riders Steering System Assembly Parts by Allen Engineering

  • MP235 Mechanical Pro Riders Steering Assembly Parts by Allen Engineering
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
010051 Fstn, Nut Hex Jam 1/2-20 Fine Grd8 by Allen Enginnering
$4.99
2
010069 Fstn Hhcs 1/2-13 X 1-1/2 Grd8 by Allen Enginnering
$4.95
3
010464 Fstn, Nut Nylok 3/8-16 Gr 8 by Allen Enginnering
$4.95
4
010711 Clip, .125X2-9/16 Hitch Pin by Allen Enginnering
$4.95
5
016510 FSTN, HHCS 3/4-10 X 3 GRADE 8 by Allen Engineering
$12.96
6
019900 Rod, End Female 1/2" by Allen Enginnering
$42.24
7
026267 Bolt, 3/8-16Xø1/2X1 Lg Shoulder by Allen Enginnering
$9.00
8
026447 Fstn,Nylock Nut Thin 3/4-10 by Allen Enginnering
$4.99
9
040208 Fstn, Nut Stover Lock 1/2-13 by Allen Enginnering
$2.99
11
048929 Bearing, Tfi-1214-16 Iglide 3/4" by Allen Enginnering
$12.45
12
053120 WLDMT, LEVER ARM F/STEERING by Allen Engineering
$279.60
14
053174 SHAFT, TIE ROD - 17-1/2" MP235/315 by Allen Engineering
$50.40
15
053183 Steering Linkage, Mp215 by Allen Enginnering
$162.47
16
056636 Fstn, Hhcs 3/4-10X7-1/2 Gr 8 by Allen Enginnering
$18.68
17
073903 WELDMENT, RH STEERING TUBE MP215X by Allen Engineering
$286.80
19
073906 WLDMT, LEVER STEERING, LH FOR MP215X by Allen Engineering
$444.00
20
221408 Rod, End Male 1/2" by Allen Enginnering
$37.35
21
221408 Rod, End Male 1/2" by Allen Enginnering
$37.35
22
221408 Rod, End Male 1/2" by Allen Enginnering
$37.35
