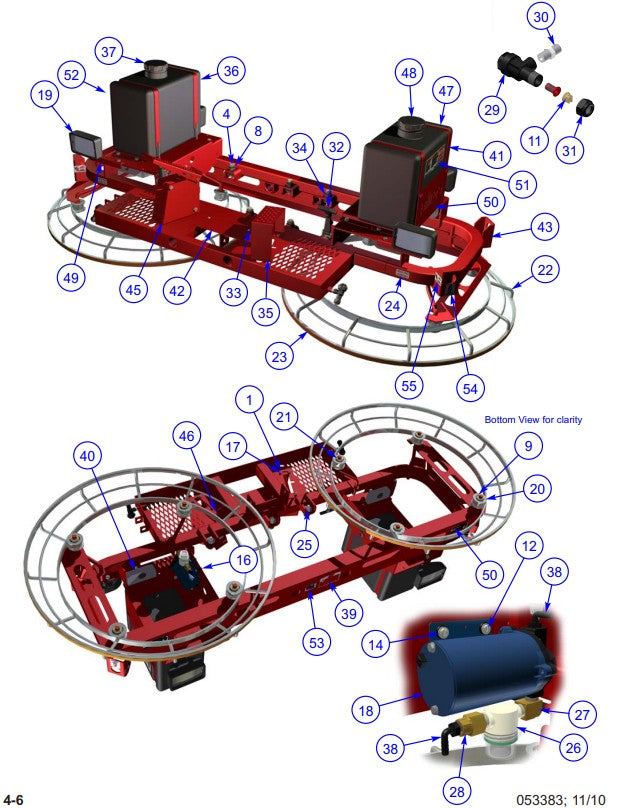

MP235 (pre 2021) Main Frame Unit Assembly Parts by Allen Engineering

MP235 (pre 2021) Main Frame Unit Assembly Parts by Allen Engineering

  • MP235 (pre 2021) Main Frame Unit Assembly Parts by Allen Engineering
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
010002 Fstn, Hhcs 1/4-20 X 3/4 Gr8 by Allen Enginnering
$2.99
2
010035 Fstn, Hhcs 3/8-16 X 3/4 Grd8 by Allen Enginnering
$4.95
3
010036 Fstn, Hhcs 3/8-16 X 1 Grd8 by Allen Enginnering
$4.95
4
010073 FSTN, HHCS 1/2-13 X 2-1/2 GR 8 by Allen Engineering
$3.99
5
010091 Fstn, Lw 3/8 Grd8 by Allen Enginnering
$4.95
6
010464 Fstn, Nut Nylok 3/8-16 Gr 8 by Allen Enginnering
$4.95
7
010568 Fstn, Rhms 10-32 X 1/2 Gr 8 by Allen Enginnering
$4.95
8
011490 Fstn, Fw Hardened 1/2 Gr 8 by Allen Enginnering
$4.95
9
012361 Fstn, Pin Cotter 1/8 X 1 by Allen Enginnering
$2.99
10
012612 Fstn, Nut Hex Nylock 5/16-18 Gr by Allen Enginnering
$4.95
11
012702 Tip--Spray 8001 (Fine) by Allen Enginnering
$46.44
12
016382 Fstn, Rhms 10-32 X 1 by Allen Enginnering
$4.95
13
017751 Fstn, Fw 3/8 Hard A325 Grade 8 by Allen Enginnering
$2.99
14
018072 Fstn, Fw #10 Sae by Allen Enginnering
$4.95
15
024629 Grommet, 1 5/8Od X 7/8Id by Allen Enginnering
$3.99
16
029568 Fstn, Nut Nylok 10-32 by Allen Enginnering
$4.95
17
029671 Fstn, Nut Hex 1/4-20 Nyloc by Allen Enginnering
$4.95
18
033735 Pump, Spray System by Allen Enginnering
$225.22
19
036881 Light Prep Riders For Part Orders Only by Allen Enginnering
$90.00
20
037264 Assembly, Roller Pt 430 Edger by Allen Enginnering
$396.66
22
061078 Weldt, 436 Walkbehind Edger Lower Ring by Allen Enginnering
$1,008.45
23
039211 Belt, Uretahne A/13X111" by Allen Enginnering
$468.37
24
039778 Decal, Grease Thrust Bearing Daily by Allen Enginnering
$5.40
25
040208 Fstn, Nut Stover Lock 1/2-13 by Allen Enginnering
$2.99
26
040209 Filter, Rider Spray System by Allen Enginnering
$65.80
27
040387 Elbow, 3/8 Brass 90° Street by Allen Enginnering
$31.13
28
040388 Ftg, 3/8X1/4 Brass Fm To Fm Reducer by Allen Enginnering
$19.92
29
041604 Valve, Check Body Nozzle by Allen Enginnering
$74.70
30
041606 Plastic 1/4 Npt Close Nipple by Allen Enginnering
$4.99
31
041624 Retainer, Nylon Spray Tip by Allen Enginnering
$8.72
32
042260 Latch, Flex Draw Lrg Rubber Sp400B by Allen Enginnering
$52.66
33
042343 Fstn, Sfbhcs 1/4"-20 X 3/4 by Allen Enginnering
$4.95
34
046744 MOUNT, 90LB MOTOR ISOLATOR 45A by Allen Engineering
$52.80
36
047700 Tank, 6 Gallon Water Plastic by Allen Enginnering
$329.43
37
047701 Cap, 3-1/2" Black Thrd Vent W/Tethe by Allen Enginnering
$52.80
38
047933 Elbow, 1/4 Pushlok X 1/4 Npt Plasti by Allen Enginnering
$14.40
39
048448 DECAL, AEC PATENT NUMBERS by Allen Engineering
$5.99
40
048561 Bearing Assembly F/ Rotor Mount X1 by Allen Enginnering
$145.67
-
048559 Bar, Bearing Housing Alum X1 by Allen Enginnering
$77.31
-
048560 Bearing, I-Glide Flanged T500 by Allen Enginnering
$14.40
41
048921 Weldt, Tank Strap by Allen Enginnering
$109.81
45
053188 ASSY, THROTTLE PEDAL MP215 by Allen Engineering
$836.40
47
053200 Fuel Tank Assy, Rider (Gas) by Allen Enginnering
$528.88
48
053213 Cap F/ Tank, Epa (Replacement) by Allen Enginnering
$70.99
49
053218 BRACKET, LIGHT F/ MP235/315 by Allen Engineering
$48.00
51
053443 Decal, Gasoline Only (Sp) by Allen Enginnering
$14.52
52
053445 Decal, Retardant Only (Sp) by Allen Enginnering
$26.40
54
053448 Decal, Lift Here Only (Sp) by Allen Enginnering
$6.23
55
053449 DECAL, PINCH HAZARD (SP) by Allen Engineering
$9.72
