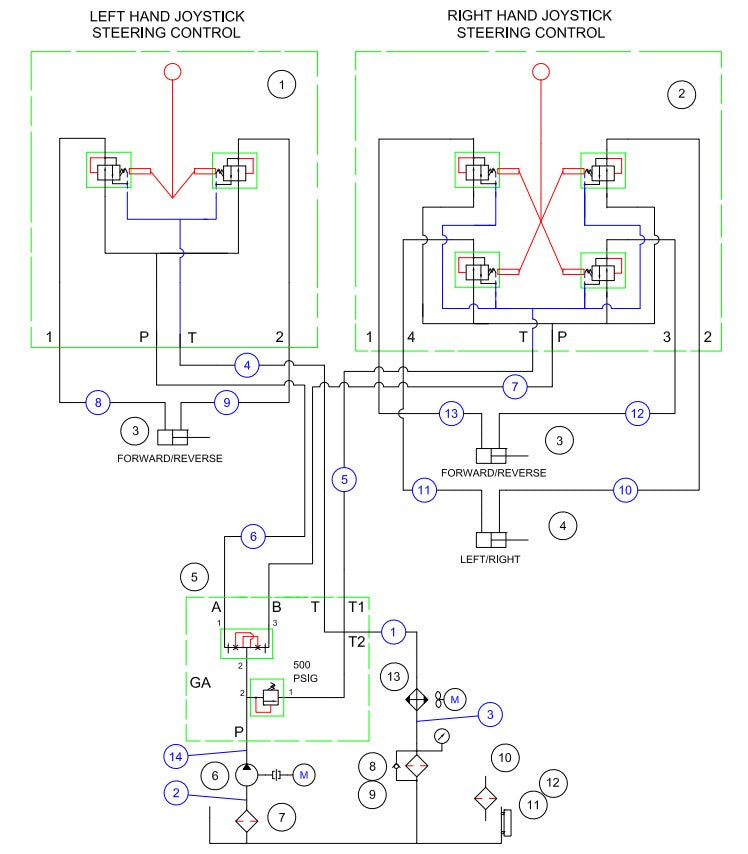

MP245 (pre 2021) Hydraulic Schematic Assembly Parts by Allen Engineering

MP245 (pre 2021) Hydraulic Schematic Assembly Parts by Allen Engineering

  • MP245 (pre 2021) Hydraulic Schematic Assembly Parts by Allen Engineering
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
064818 Control Valve, Lh Single Axis_2 by Allen Enginnering
$1,760.31
2
064817 Control Valve, Rh Dual Axis_2 by Allen Enginnering
$1,716.61
3
048660 Hdx 600/740/610 1.50X5/8X5/8 L/R/Fwd/Rev Stg Cyl by Allen Enginnering
$1,434.24
4
048660 Hdx 600/740/610 1.50X5/8X5/8 L/R/Fwd/Rev Stg Cyl by Allen Enginnering
$1,434.24
5
046735 Manifold, 1200C Hyd Steering by Allen Enginnering
$1,035.34
6
046738 Pump, Gear 3.2Cc 1200C by Allen Enginnering
$1,120.50
7
034012 Filter, Stauff Tmf-05-0 by Allen Enginnering
$108.32
8
049978 Filter, 1/2Npt 20M Nominal Element by Allen Enginnering
$421.31
9
046241 Filter Gauge by Allen Enginnering
$132.22
10
FI0350 Filler Breather F/ Reservoir B-16 by Allen Enginnering
$77.60
11
056932 GAUGE 76MM 3" LEVEL GAUGE by Allen Engineering
$193.20
12
045948 FTG, 7574051 MAGNETIC #12 PLUG by Allen Engineering
$60.00
13
052930 Cooler, Air/Oil 2005K-12S-Bp by Allen Enginnering
$1,575.42
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
