MP245 (pre 2021) LH Rotor Assembly Parts by Allen Engineering

MP245 (pre 2021) LH Rotor Assembly Parts by Allen Engineering

  • MP245 (pre 2021) LH Rotor Assembly Parts by Allen Engineering
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
010023 Fstn, Hhcs 5/16-18 X 1-3/4 Grd8 by Allen Enginnering
$4.95
2
010024 Fstn, Hhcs 5/16-18 X 2 Gr8 by Allen Enginnering
$4.95
3
010035 Fstn, Hhcs 3/8-16 X 3/4 Grd8 by Allen Enginnering
$4.95
4
010090 Fstn, Lw 5/16 Grd8 by Allen Enginnering
$4.95
5
010091 Fstn, Lw 3/8 Grd8 by Allen Enginnering
$4.95
6
012612 Fstn, Nut Hex Nylock 5/16-18 Gr by Allen Enginnering
$4.95
7
015677 Fstn, Ring, Ø7/16 E-Style Retaining by Allen Enginnering
$2.99
8
015678 Fstn, Pin Yoke Arm 7-3/8X7/16 by Allen Enginnering
$17.16
9
015690 Washer, Retaining For Trowels by Allen Enginnering
$29.40
10
015691 Fstn, Shcs 1/2-13 X 1-1/2, Right Hand Thread by Allen Enginnering
$25.20
11
015692 Cap, Ø1/4 Red Grease by Allen Enginnering
$2.99
12
015693 Plug, Plastic Cap Ec12 by Allen Enginnering
$2.99
13
015694 Plug W-1 Red Plastic Tapered by Allen Enginnering
$2.99
14
015696 Key, .25" X 1.25"Lg Hard Rad. by Allen Enginnering
$9.00
15
015821 Cap, Pressure Plate by Allen Enginnering
$21.43
16
015822 Bearing, Thrust by Allen Enginnering
$213.18
17
015824 Plate, Pro Rider/Walker Pressure (P by Allen Enginnering
$255.47
18
015890A-4 TRWL BLADES FINISH 6X14 BLUE X 4 by Allen Engineering
$114.00
19
015893 Spider Assy, 900-Sfc Lh-Som by Allen Enginnering
$1,400.63
20
026215 Yoke, Arm by Allen Enginnering
$217.29
21
026442 Gearbox, Std 900/1200 Lh (Som) by Allen Enginnering
$2,915.54
22
026504 Fstn, Shld Blt 3/8 X 1-1/4 by Allen Enginnering
$7.20
23
050017 Crosshead, Mp215 by Allen Enginnering
$255.47
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

How do I use this diagram?

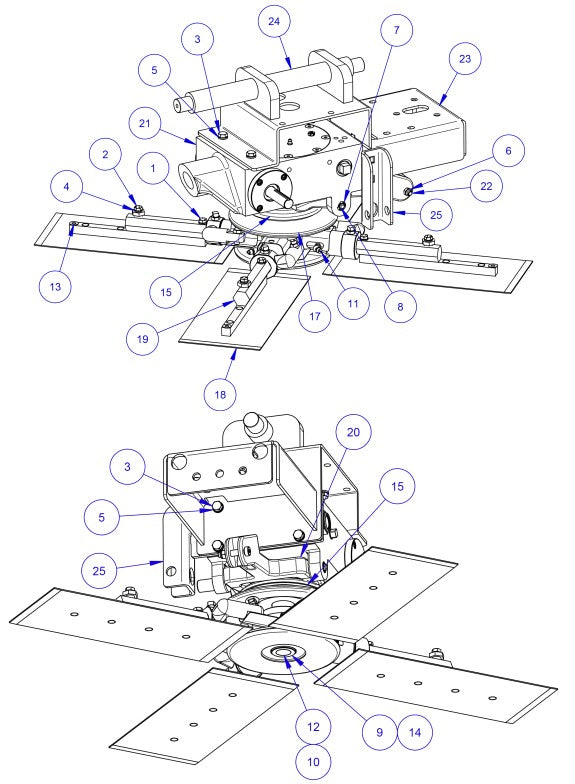

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.
