MQ MQD206H HONDA GX120K1QX2 ENGINE Control Assembly Parts By Multiquip

MQ MQD206H HONDA GX120K1QX2 ENGINE Control Assembly Parts By Multiquip

  • MQ MQD206H HONDA GX120K1QX2 ENGINE Control Assembly Parts By Multiquip
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
3
16500ZH7820 Control Assembly (Remote) for Multiquip MQD206H Diaphragm Pump
$48.60
4
16551ZE0010 Arm, Governor for Multiquip MQD206H Diaphragm Pump
$25.03
5
16555ZE0000 Rod, Governor for Multiquip MQD206H Diaphragm Pump
$10.99
6
16561ZE0020 Spring, Governor for Multiquip MQD206H Diaphragm Pump
$6.54
7
16562ZE0020 Spring, Throttle Return for Multiquip MQD206H Diaphragm Pump
$7.67
8
16571ZH7000 Lever, Control for Multiquip MQD206H Diaphragm Pump
$22.47
9
16574ZE1000 Spring, Lever for Multiquip Mikasa MVH402GHB Plate Tamper Compactor
$6.05
10
16575ZH8000 Washer, Control Lever for Multiquip Mikasa MVHR60HW Plate Tamper Compactor
$8.28
11
16576891000 Holder, Cable for Multiquip Mikasa MVH402GHB Plate Tamper Compactor
$9.14
12
16578ZE1000 Spacer, Control Lever for Multiquip Mikasa MVH402GHB Plate Tamper Compactor
$7.09
14
16580ZH7810 Base Control for Multiquip MQD206H Diaphragm Pump
$25.56
15
16584883300 Adjusting Spring for Multiquip Mikasa MRH800GS Walk Behind Tandem Roller
$8.37
16
16592ZE1810 Spring, Cable Return for Multiquip Mikasa MVHR60HW Plate Tamper Compactor
$4.10
18
90013883000 Bolt, Flange (6X for J Series Walk Behind Trowels by Multiquip Whiteman
$4.25
19
90015ZE5010 Bolt, Governor Arm for Multiquip Mikasa MVH402GHB Plate Tamper Compactor
$27.29
20
90022888010 BOLT FLANGE 6X20, MAC5501G BY MAKITA
$7.76
21
90114SA0000 Nut, Self-Lock (6Mm) for Multiquip Mikasa MVH402GHB Plate Tamper Compactor
$27.29
24
93500050250H Screw 5X25 for Multiquip Mikasa MVC88VTH MVC88CTHW Plate Tampers
$2.19
25
93500050160A Screw, Pan 5X16 for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$2.19
26
9405006000 Bolt, Flange, 6 Mm for GA6HB GA6HEB Portable Generator with Honda GX340R2EDN2 GX340R2EDE2 Gasoline Engine by MQ Multiquip
$0.96
View full details

Frequently asked questions

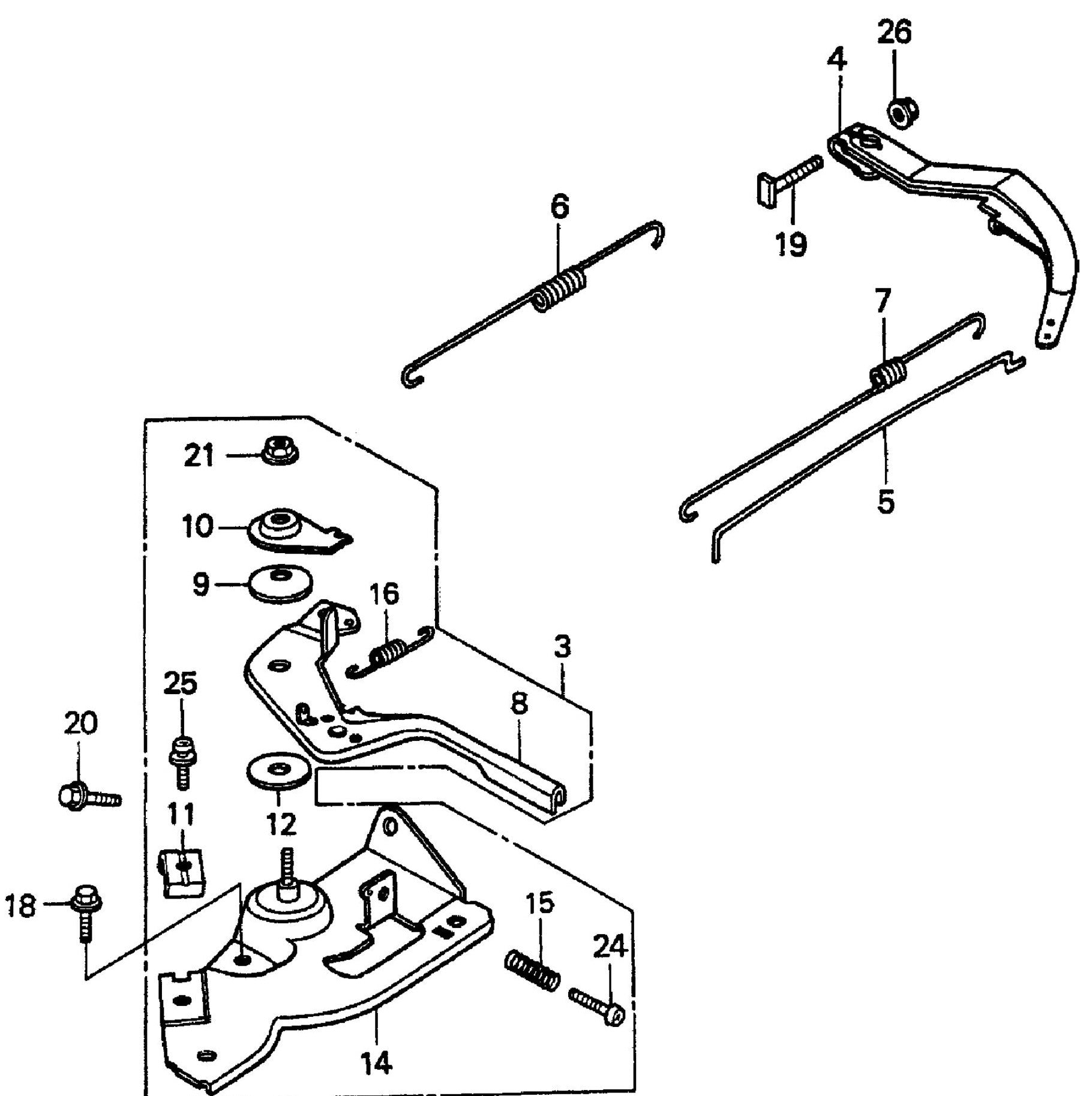

How do I use this diagram?
