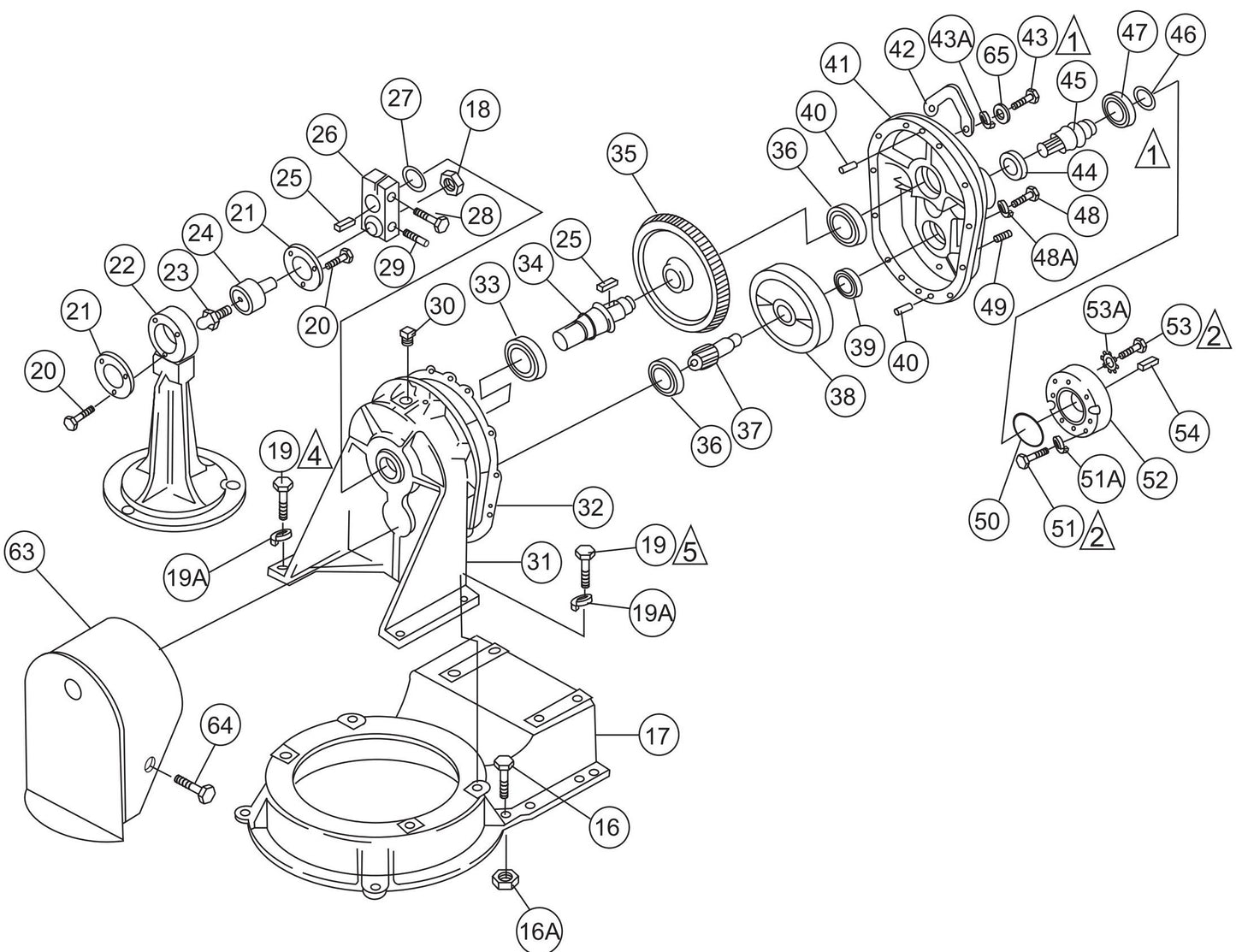

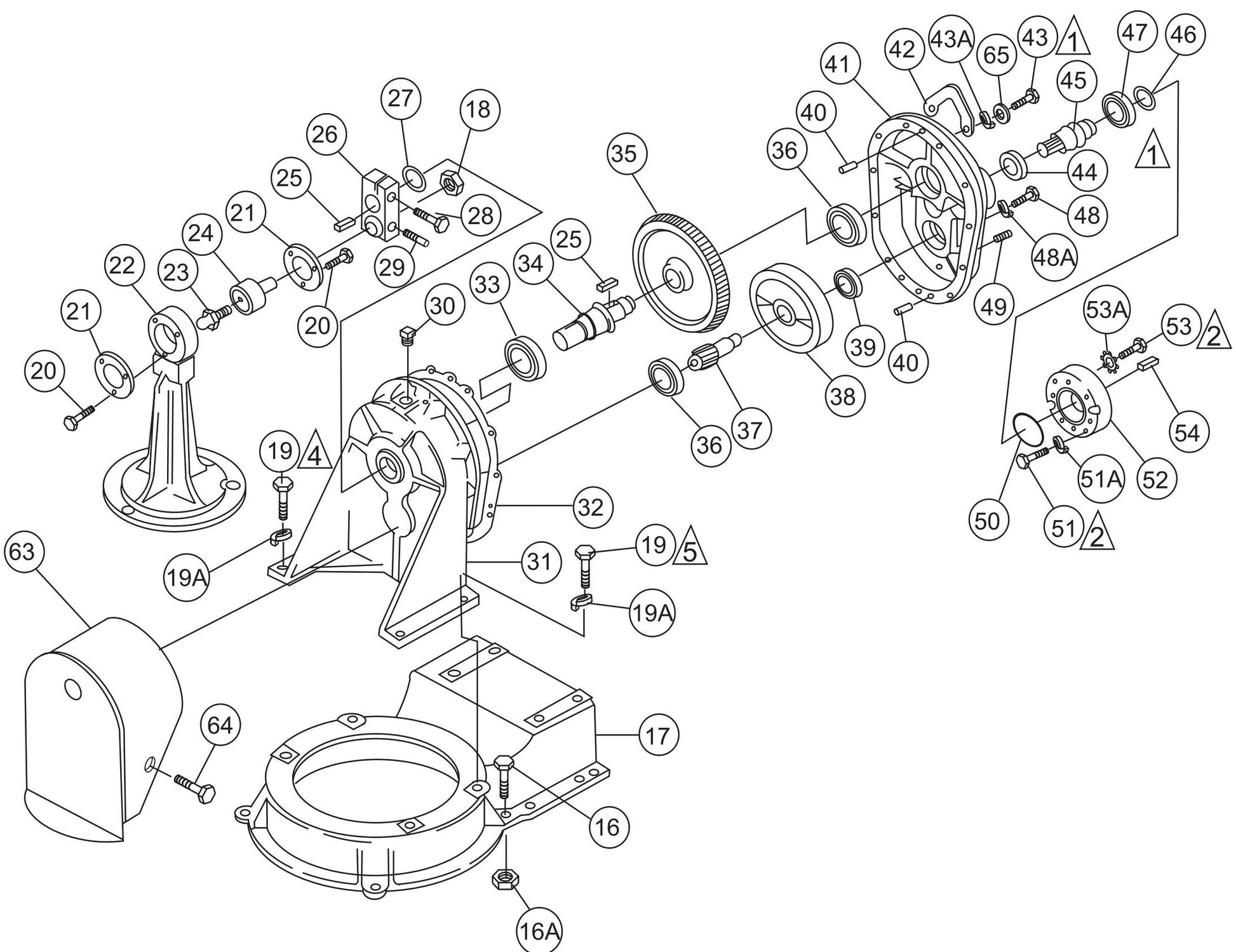

MQ MQD206H Pump Assembly Parts By Multiquip

MQ MQD206H Pump Assembly Parts By Multiquip

  • MQ MQD206H Pupm Assembly Parts By Multiquip
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
16
2021214 Screw, 1/2”X2-1/4” Hex, Hn for Multiquip MQD206H Diaphragm Pump
$2.30
16A
2061213 Hex Nut, 3/8”-16 for Multiquip MQD206H Diaphragm Pump
$4.39
17
2023350 Pump Frame for Multiquip MQD206H Diaphragm Pump
$536.24
18
2025818 Jam Nut, 5/8-18 Unf for Multiquip MQD206H Diaphragm Pump
$8.82
19
3051213 Hex Screw 1/2”-13 Unc X 1-3/4” for Multiquip MQD206H Diaphragm Pump
$2.21
19A
2021200 Washer, Lock 1/2” for Multiquip MQD206H Diaphragm Pump
$12.50
20
2023212 Screw, #10-32X3/8” Ft. Hd. Mach for Multiquip MQD206H Diaphragm Pump
$4.39
21
2023360 Retaining Washer for Multiquip MQD206H Diaphragm Pump
$19.86
22
2023352 Connecting Rod for Multiquip MQD206H Diaphragm Pump
$317.92
23
2020316 Grease Fitting, 3/16” Drive Type Str. for Multiquip MQD206H Diaphragm Pump
$4.39
24
2025582 Bearing, Connecting Rod for Multiquip MQD206H Diaphragm Pump
$338.56
25
2020807 Woodruff Key for Multiquip MQD206H Diaphragm Pump
$1.23
26
2025584 Crank Arm for Multiquip MQD206H Diaphragm Pump
$314.33
27
2021232 Oil Seal for Multiquip MQD206H Diaphragm Pump
$11.20
28
2021211 Screw, Hex 1/2”X1-1/2”-13 Unc for Multiquip MQD206H Diaphragm Pump
$4.39
29
2025656 Screw, Socket Set 5/16”X5/16” -18 Unc for Multiquip MQD206H Diaphragm Pump
$4.39
30
2024540 Plug, 3/8” Vented Pipe, Plastic for Multiquip MQD206H Diaphragm Pump
$5.18
31
2024850 Gear Case for Multiquip MQD206H Diaphragm Pump
$355.17
32
2024858 Gasket, Gear Case for Multiquip MQD206H Diaphragm Pump
$20.49
33
2063070 Bearing, Ball for Multiquip MQD206H Diaphragm Pump
$27.10
34
2024853 Gear Shaft for Multiquip MQD206H Diaphragm Pump
$225.90
35
2025058 Gear, 79 Tooth for Multiquip MQD206H Diaphragm Pump
$389.26
36
2063040 Bearing, Ball for Multiquip MQD206H Diaphragm Pump
$11.08
37
2024852 Pinion, 11 Tooth for Multiquip MQD206H Diaphragm Pump
$265.91
38
2023417 Gear, 85 Tooth Internal for Multiquip MQD206H Diaphragm Pump
$304.64
39
2023020 Bearing, Ball for Multiquip MQD206H Diaphragm Pump
$18.21
40
2021434 Pin, 1/4”X3/4” Dowel for Multiquip MQD206H Diaphragm Pump
$4.39
41
2064851 Cover, Gear Case for Multiquip MQD206H Diaphragm Pump
$505.87
42
2024945 Lifting Hook for Multiquip MQD206H Diaphragm Pump
$5.98
43
2021420 Screw, Hex 1/4”-20 Unc X1-1/4” for Multiquip MQD206H Diaphragm Pump
$4.39
43A
2021421 Washer, Lock 1/4” for Multiquip MQD206H Diaphragm Pump
$4.39
48A
2021421 Washer, Lock 1/4” for Multiquip MQD206H Diaphragm Pump
$4.39
44
2061880 Needle Bearing for Multiquip MQD206H Diaphragm Pump
$22.12
45
2024854 Pinion (3/4” Bore) for Multiquip MQD206H Diaphragm Pump
$441.18
46
2025100 Retaining Ring for Multiquip MQD206H Diaphragm Pump
$1.35
47
2029106 Bearing Ball for Multiquip MQD306HA Diaphragm Pump
$18.24
48
3051421 Screw, 1/4-20” Unc X1” for Multiquip MQD206H Diaphragm Pump
$4.39
49
2021827 Plug, 1/8” Npt Sq. Hd. Pipe for Multiquip MQD206H Diaphragm Pump
$4.39
50
2024859 O-Ring for Multiquip MQD206H Diaphragm Pump
$4.54
51
2025162 Screw, Hex 5/16”-24 Unf X1” for Multiquip MQD206H Diaphragm Pump
$4.39
51A
2025167 Washer, Lock 5/16” for Multiquip MQD206H Diaphragm Pump
$4.39
52
2024856 Engine Adapter for Multiquip MQD206H Diaphragm Pump
$141.56
53
2025160 Screw, Socket Hd. 5/16”-18 Unc X1” for Multiquip MQD206H Diaphragm Pump
$4.39
53A
2025165 Lock Washer Cs W/Internal Tooth for Multiquip MQD206H Diaphragm Pump
$4.39
54
2025601 Key 3/16” Sq. X 1” Lg for Multiquip MQD206H Diaphragm Pump
$5.54
63
2023691 Guard for Multiquip MQD206H Diaphragm Pump
$78.03
64
2021012 Self Tapping Mach. Screws for Multiquip MQD206H Diaphragm Pump
$4.39
65
2021402 Washer, Flat 1/4” for Multiquip MQD206H Diaphragm Pump
$2.49
