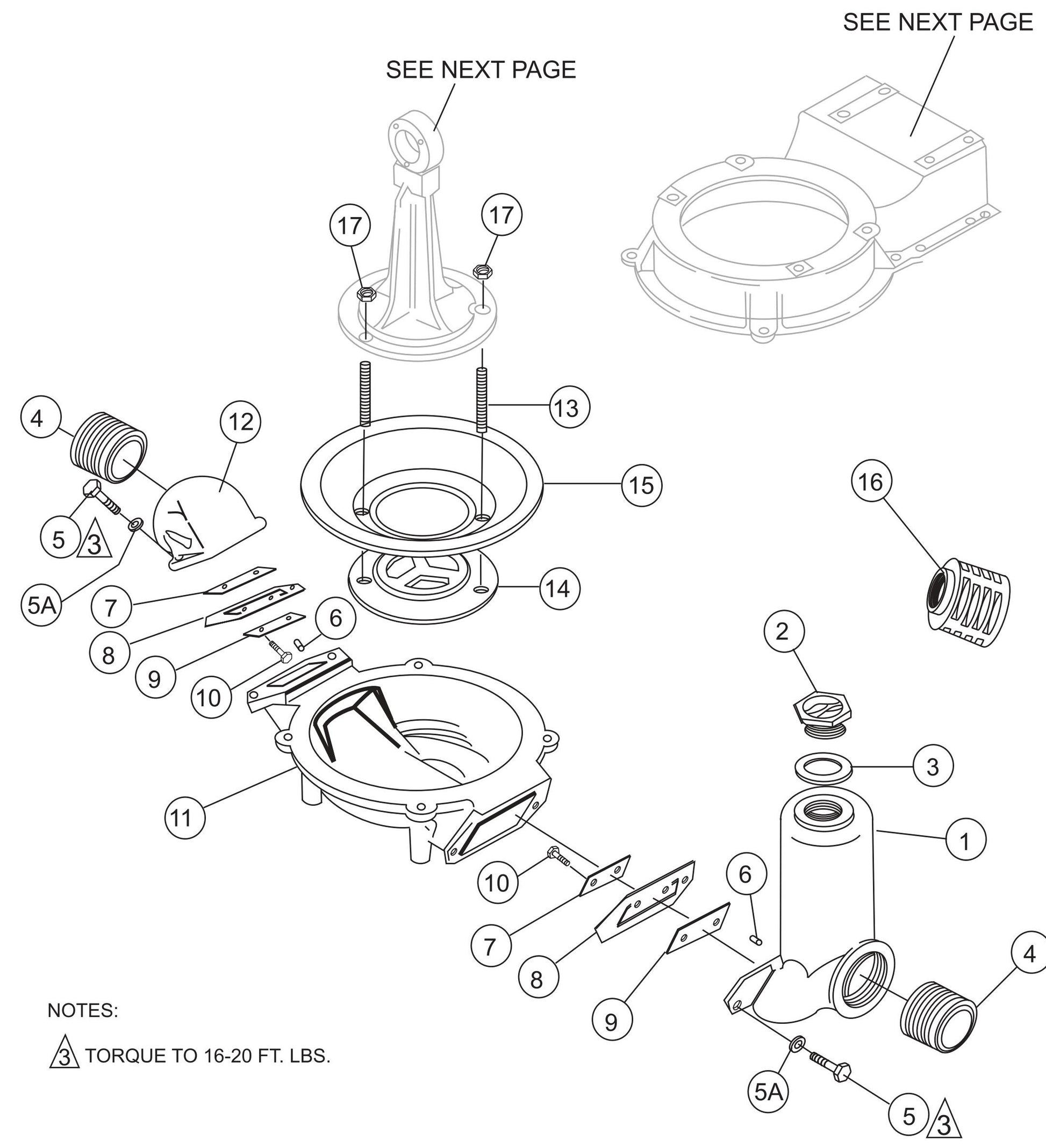

MQ MQD206H Water Box And Groove Assembly Parts By Multiquip

MQ MQD206H Water Box And Groove Assembly Parts By Multiquip

  • MQ MQD206H Water Box And Groove Assembly Parts By Multiquip
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2023354 Suction Conn & Groove Pin Assy. for Multiquip MQD206H Diaphragm Pump
$622.30
2
2023322 Plug, 2-Inch Fill for Multiquip MQD206H Diaphragm Pump
$31.37
3
2023323 Gasket, 2-Inch Plug for Multiquip MQD206H Diaphragm Pump
$21.59
4
2023015 Extra Heavy Nipple for Multiquip MQD206H Diaphragm Pump
$17.69
5
2023812 3/8”X1-1/2” Hx Screw for Multiquip MQD206H Diaphragm Pump
$4.39
5A
2023800 3/8” Lockwasher for Multiquip MQD206H Diaphragm Pump
$4.39
6
2021838 1/8”X3/8” Spring Pin for Multiquip MQD206H Diaphragm Pump
$6.36
7
2023358 Valve Weight for Multiquip MQD206H Diaphragm Pump
$37.32
8
2023356 Flap Valve 2-Inch for Multiquip MQD206H Diaphragm Pump
$33.92
9
2023357 Valve Binder for Multiquip MQD206H Diaphragm Pump
$4.39
10
2021032 Rd. Hd. Mach. Screw #10-32X1/2” for Multiquip MQD206H Diaphragm Pump
$4.39
11
2023351 Waterbox & Groove Pin Assy. for Multiquip MQD206H Diaphragm Pump
$732.51
12
2023355 Discharge Connection for Multiquip MQD206H Diaphragm Pump
$172.39
13
2023458 Stud, 3/8”-16 X 2 Unc for Multiquip MQD206H Diaphragm Pump
$5.40
13A
2061213 Hex Nut, 3/8”-16 for Multiquip MQD206H Diaphragm Pump
$4.39
14
2023353 Diaphragm Bottom for Multiquip MQD206H Diaphragm Pump
$120.89
15
2022331 Diaphragm 2-Inch for Multiquip MQD206H Diaphragm Pump
$249.52
16
0742304050 Strainer for Multiquip MQD206H Diaphragm Pump
$15.43
17
2023816 Nut, Hex 3/8”-16 Unc for Multiquip MQD206H Diaphragm Pump
$4.39
