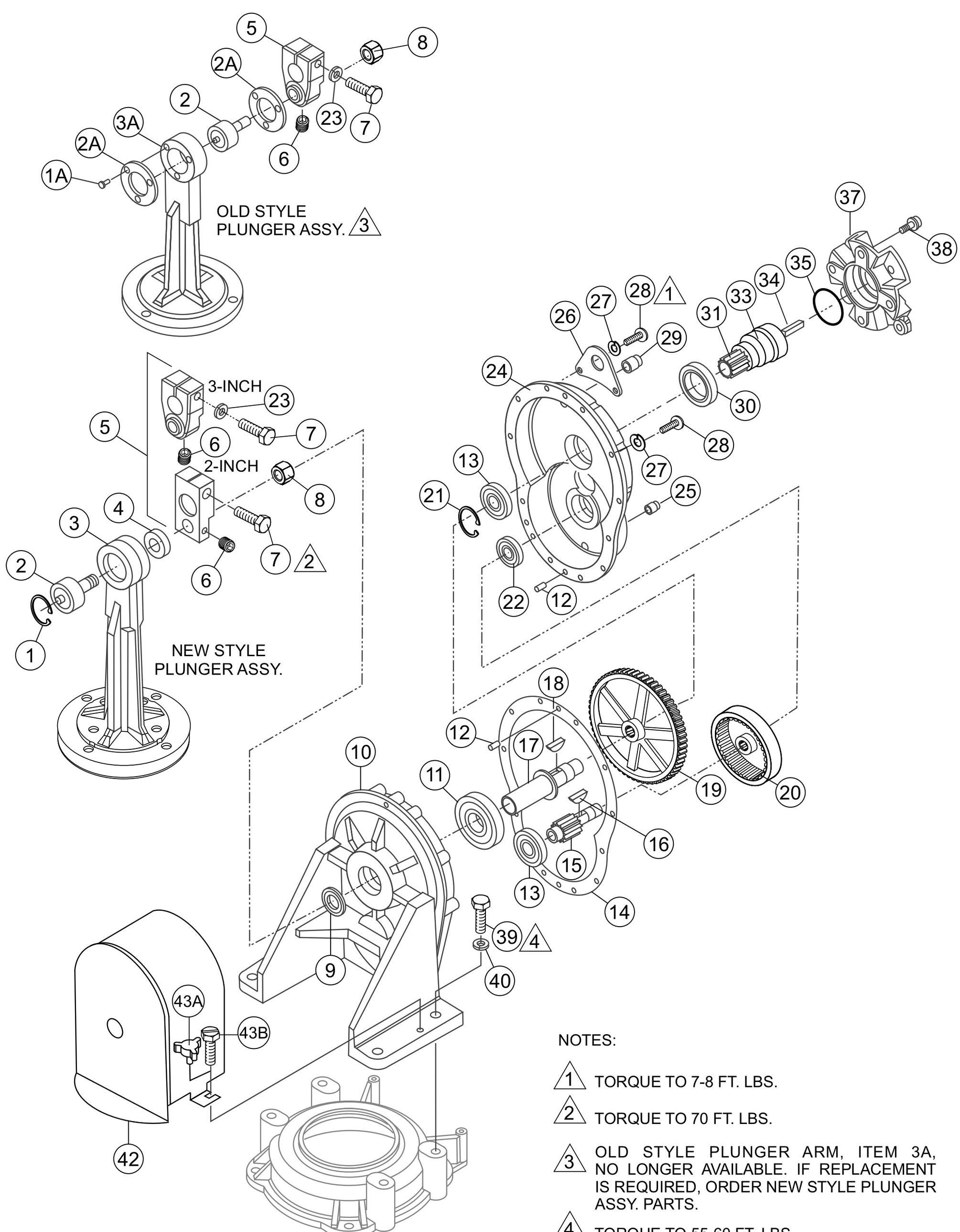

MQ MQD2H / MQD3H Pump Assembly Parts By Multiquip

MQ MQD2H / MQD3H Pump Assembly Parts By Multiquip

  • MQ MQD2H / MQD3H Pump Assembly Parts By Multiquip
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
336019100 Internal Retaining Ring 1-1/2" for Multiquip MQD2H MQD3H Diaphragm Pump
$13.85
1
335019000 Internal Retaining Ring for Multiquip MQD2H MQD3H Diaphragm Pump
$11.87
1A
170400200 Flat Hd Mach Screw #10-32 X 1/2" for Multiquip MQD2H MQD3H Diaphragm Pump
$4.39
2
336019000 Plunger Bearing for Multiquip MQD2H MQD3H Diaphragm Pump
$170.65
2
213800090 Plunger Bearing for Multiquip MQD2H MQD3H Diaphragm Pump
$170.65
2A
213600000 Bearing Retainer for Multiquip MQD2H MQD3H Diaphragm Pump
$11.48
3
336009001 Plunger Arm for Multiquip MQD2H MQD3H Diaphragm Pump
$312.55
3
213400001 Plunger Arm for Multiquip MQD2H MQD3H Diaphragm Pump
$323.73
4
180103000 Spacer 5/8" X 1-1/16" for Multiquip MQD2H MQD3H Diaphragm Pump
$11.87
5
336009401 Crank for Multiquip MQD2H MQD3H Diaphragm Pump
$142.51
5
214000001 Crank for Multiquip MQD2H MQD3H Diaphragm Pump
$144.27
6
173800100 Socket Set Screw 5/16"-18 X 1/2" for Multiquip MQD2H MQD3H Diaphragm Pump
$4.39
7
176601800 Bolt, 1/2"-13 X 2-3/4" for Multiquip MQD2H MQD3H Diaphragm Pump
$4.39
8
178401000 Locknut 3/4" -16 for Multiquip MQD2H MQD3H Diaphragm Pump
$2.81
9
214800000 Oil Seal 1-1/4" X 1-3/4" X 1/4" for Multiquip MQD2H MQD3H Diaphragm Pump
$40.65
10
335409001 Gear Box Output Half for Multiquip MQD2H MQD3H Diaphragm Pump
$557.74
11
335419000 Output Ball Bearing #6307 for Multiquip MQD2H MQD3H Diaphragm Pump
$60.79
12
171700200 Dowel Pin, 1/4" X 3/4" for Multiquip MQD2H MQD3H Diaphragm Pump
$11.88
13
335419100 Intermed. Ball Bearing #6304 for Multiquip MQD2H MQD3H Diaphragm Pump
$20.78
14
335430000 Gasket for Multiquip MQD2H MQD3H Diaphragm Pump
$20.83
15
335412100 Idler Pinion Shaft for Multiquip MQD2H MQD3H Diaphragm Pump
$72.13
16
215700000 Woodruff Key #406 1/8" X 3/4" for Multiquip MQD2H MQD3H Diaphragm Pump
$11.87
17
335414001 Output Shaft for Multiquip MQD2H MQD3H Diaphragm Pump
$170.65
17
335414000 Output Shaft for Multiquip MQD2H MQD3H Diaphragm Pump
$149.54
18
214100000 Woodruff Key #1008 5/16" X 1" for Multiquip MQD2H MQD3H Diaphragm Pump
$13.85
19
335412000 Output Gear for Multiquip MQD2H MQD3H Diaphragm Pump
$498.78
20
214900000 Internal Spur Gear for Multiquip MQD2H MQD3H Diaphragm Pump
$260.39
21
180606400 External Retaining Ring 1-1/8" for Multiquip MQD2H MQD3H Diaphragm Pump
$11.87
22
335419200 Idler Ball Bearing #6302 for Multiquip MQD2H MQD3H Diaphragm Pump
$40.65
23
179800100 Split Lockwasher 1/2" for Multiquip MQD2H MQD3H Diaphragm Pump
$11.87
40
179800100 Split Lockwasher 1/2" for Multiquip MQD2H MQD3H Diaphragm Pump
$11.87
24
335409101 Gear Box Input Half for Multiquip MQD2H MQD3H Diaphragm Pump
$272.71
25
176700200 Npt Pipe Plug 1/4" for Multiquip MQD2H MQD3H Diaphragm Pump
$4.75
26
335410600 Lift Bracket for Multiquip MQD2H MQD3H Diaphragm Pump
$15.83
27
178800100 Washer, Lock 1/4" for Multiquip MQD2H MQD3H Diaphragm Pump
$11.88
28
171800400 Bolt 1/4"-20 X 7/8" for Multiquip MQD2H MQD3H Diaphragm Pump
$4.39
29
176700100 Npt Pipe Plug 1/2" for Multiquip MQD2H MQD3H Diaphragm Pump
$4.75
30
335419400 Input Pinion Ball Bearing Open #6007 for Multiquip MQD2H MQD3H Diaphragm Pump
$59.81
31
335412200 Input Pinion for Multiquip MQD2H MQD3H Diaphragm Pump
$102.03
33
335419300 Input Pinion Ball Bearing Sealed for Multiquip MQD2H MQD3H Diaphragm Pump
$59.81
34
151700100 Square Key, 3/16" X 1-1/2" for Multiquip MQD2HA MQD3HA Diaphragm Pump
$5.77
35
218100500 Oil Seal for Multiquip MQD2H MQD3H Diaphragm Pump
$11.88
37
335409301 Adapter, Gasoline Engine for Multiquip MQD2H MQD3H Diaphragm Pump
$147.79
38
174500200 Flange Screw, 5/16"-18 X 3/4" for Multiquip MQD2H MQD3H Diaphragm Pump
$4.27
39
176601300 Hex Flange Screw, 1/2"-13 X 1-1/2" Grd.5 for Multiquip MQD2H MQD3H Diaphragm Pump
$6.59
42
335410300 Plunger Guard for Multiquip MQD2H MQD3H Diaphragm Pump
$119.15
43A
171601000 Knob 1/4"-20 X 1/2" for Multiquip MQD2H MQD3H Diaphragm Pump
$10.66
43B
171201000 Slotted Screw 1/4"-20 X 5/16" for Multiquip MQD2H MQD3H Diaphragm Pump
$4.39
32
214800100 Oil Seal for Multiquip MQD2HA MQD3HA Diaphragm Pump
$45.75
